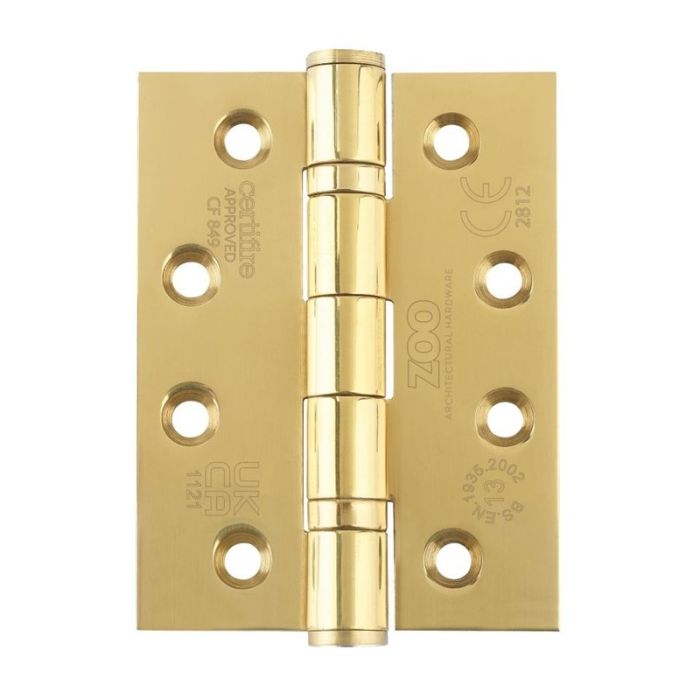

ZOO 102 x 76 x 3mm Brass Ball Bearing Door Hinge Grade 13 CE Marked ZHSS243PVD
Grade 201 Stainless Steel and Certifire CF849
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
-
Buy 40 +save 10%
-
Buy 80 +save 15%
-
Buy 120 +save 20%
See our full range:
Description
ZOO 102 x 76 x 3mm Brass Ball Bearing Door Hinge Grade 13 CE Marked ZHSS243PVD
Selecting the right hardware for a commercial or high traffic residential environment requires a balance between heavy duty performance and a timeless aesthetic appearance. This Grade 13 ball bearing hinge provides the necessary structural support for doors weighing up to 120kg while maintaining a polished brass finish that catches the light beautifully. Architects and installers choose this specific hardware solution because it combines stringent fire safety standards with a mechanical action that remains smooth even after years of daily operation in busy corridors.
You will find that the polished brass PVD coating offers exceptional resistance to the wear and tear typically associated with frequently used internal or external doors. The manufacturing process uses high grade stainless steel as a base substrate before applying a protective vapour deposition layer which prevents the tarnishing often seen in cheaper brass alternatives. This combination of material science ensures your door furniture keeps its bright professional look without requiring constant polishing or maintenance throughout the lifespan of the building.
Why Choose the ZOO 102 x 76 x 3mm Brass Ball Bearing Door Hinge Grade 13 CE Marked ZHSS243PVD?
This hinge represents a reliable investment for any project where heavy duty load bearing and aesthetic consistency are equally important.
Tested Performance
The Grade 13 certification signifies that these hinges undergo rigorous cycle testing to prove they handle heavy doors with ease. You can trust that the mechanical movement will not degrade over time because the internal ball bearing assembly is engineered to distribute weight evenly across the knuckle components during every single opening and closing movement.
Advanced Finish
The polished brass PVD finish acts as a defensive shield for the metal beneath. By choosing this physical vapour deposition method, the manufacturer creates a surface that resists scratching and oxidation far better than traditional lacquered brass. This means your door hardware maintains its decorative appeal in high traffic areas where other finishes might fade.
Safety Accreditation
Fire safety is a primary concern for any building manager or property owner today. These hinges hold valid CE and UKCA marks along with CERTIFIRE approval for use on timber doors for up to 120 minutes. You gain peace of mind knowing your door installation satisfies essential building regulations and fire safety requirements for public spaces.
Engineering Quality and Daily Performance
Precision manufacturing defines the movement and longevity of this architectural hardware piece.
Internal Mechanism and Force Distribution
At the centre of this hinge sits a carefully machined ball bearing race that allows the leaves to pivot with minimal friction. When a heavy door is hung, the entire weight pulls against the hinge knuckle, yet this design mitigates that stress by ensuring the rotational load is spread efficiently. This smooth operation prevents the door from dropping or binding, which often happens when inferior hinges are used with heavy timber or steel doors.
Every hinge is template drilled so that your screw positions align perfectly with standard industry practices. This precision eliminates the need for site modification and allows your joiners or installers to mount the hardware quickly. By reducing the margin for error, the design helps maintain the structural integrity of the door frame itself, preventing the loose screws that lead to long term sagging.
Weather Resistance and Long-Term Finish
The choice of grade 201 stainless steel ensures that the hinge remains rigid even under the pressure of fire conditions or high-traffic usage. Because stainless steel does not suffer from the same internal fatigue as softer metals, it maintains its shape year after year. The addition of the brass finish ensures that the hardware coordinates well with other traditional or modern brass fittings within your interior design scheme.
Unlike simple plated items that can peel or chip when struck, the PVD finish is chemically bonded to the steel surface at a molecular level. This results in a surface that is exceptionally hard and resistant to the corrosive effects of humidity or mild cleaning agents. You will find that these hinges stay looking their best even in locations where door handles are touched hundreds of times every single day.
Installation and Operational Workflow
Following these steps helps achieve the smooth action and fire safety compliance required for a professional installation.
Preparation
Mark out the hinge positions on the edge of the door and the frame precisely to ensure the leaves sit flush when closed. Use a sharp chisel to remove wood for the rebate so the hinge leaf sits perfectly level with the door surface, which prevents the door from binding during the final swing.
Pilot Drilling
Drive the supplied screws into the pilot holes you have created to secure the hinge blades firmly. Using the correct size of drill bit for the screw gauge avoids splitting the timber or causing the screws to strip, which helps keep the hinge firmly fixed to the door jamb for the long term.
Adjustment
Check the door swing once the hinges are mounted to ensure there is no resistance at the top or bottom of the frame. If the door feels stiff or does not close into the latch smoothly, adjust the rebate depth slightly to ensure the hinges are aligned perfectly vertically and horizontally.
Expert Installation and Care Tip
When cleaning the door, use a soft damp cloth to wipe the hinge knuckles rather than abrasive chemicals that can dull the polished surface. If you ever notice the door making a sound, a tiny drop of silicone based lubricant on the pin joint will keep the movement smooth without attracting unwanted dirt or dust.
Technical Specifications
| Feature | Rating / Standard | Practical Details |
|---|---|---|
| Hinge Height | 102mm | This height provides sufficient surface area for secure mounting on standard internal doors. |
| Open Width | 76mm | The width allows for a wide door swing while keeping the footprint manageable on the frame. |
| Leaf Thickness | 3mm | A thicker gauge provides the necessary strength to support heavy fire doors up to 120kg. |
| Knuckle Diameter | 14.5mm | Compact design that provides smooth rotation without appearing overly bulky on the door edge. |
| Fire Performance | BS EN 1634-1 | Suitable for use on timber doors up to 120 minutes and steel doors up to 240 minutes. |
Longevity and Trade Reliability
These hinges represent a premium choice for contractors and designers who require hardware that performs reliably under fire conditions. The combination of high grade materials and rigorous testing protocols ensures these hinges will continue to operate correctly throughout the entire life cycle of your door installation.
Compatibility and Fitting Notes
Specification
| Manufacturer | Zoo |
|---|---|
| Finish | Polished Brass |
| Dimensions | 102 x 76 x 3 |
| Hinge Type | Butt Hinge |
| Security Standards | Grade 13 |
| Certifire Approved | Yes |
| CE Marked | Yes |
