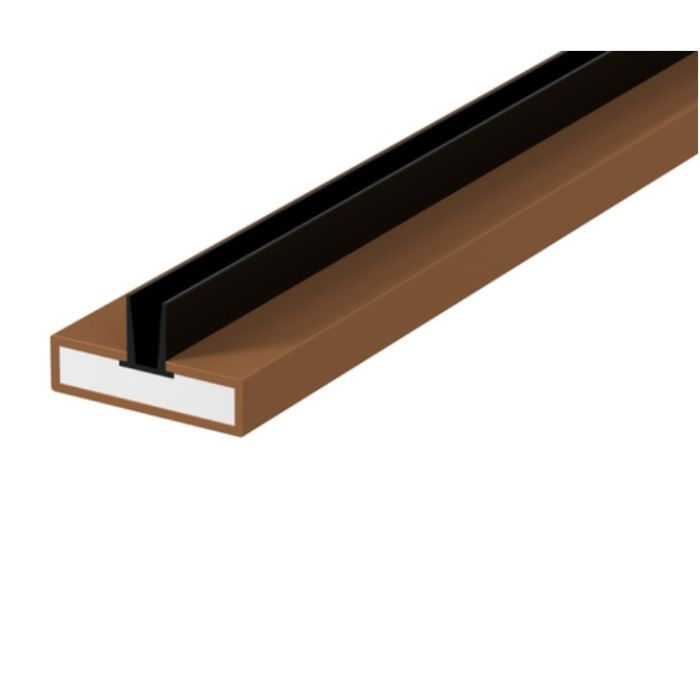

2.1M LP1004TS Light Brown 10mm Acoustic Smoke & Intumescent Fire Seal
Twin Blade in Middle for FD30 doors
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
-
Buy 60 +save 10%
-
Buy 120 +save 15%
-
Buy 200 +save 20%
Description
LP1004TS Acoustic Smoke and Intumescent Fire Seal
This high performance fire seal provides a reliable barrier against fire, smoke, and acoustic leakage for your internal doors. Designed with a sophisticated twin blade configuration, it delivers exceptional protection while maintaining a low profile that fits perfectly into standard door frame grooves to preserve the visual character of your building.
The light brown finish integrates with various wooden door styles, which helps to maintain a clean appearance across commercial offices or private residential properties. Its construction uses resilient elastomeric materials that survive daily mechanical stress, so you get long-term peace of mind alongside strict regulatory compliance for both fire and smoke containment requirements.
Why Choose the 2.1M LP1004TS Light Brown 10mm Acoustic Smoke & Intumescent Fire Seal?
This seal offers a balanced approach to fire safety and everyday door functionality through advanced material engineering.
Advanced Twin Blade Design
The middle twin blade configuration works by creating two distinct contact points against the door edge. This double barrier method limits the passage of cold smoke and airborne noise far more effectively than traditional single blade seals, while the flexible material avoids putting unnecessary resistance on the door handle during normal operation.
Thermal Containment Properties
Beyond the primary role of stopping flames, this seal is engineered for effective thermal containment. When exposed to heat, the sodium silicate core expands in a controlled reaction to block the gap between the door and the frame. This stops heat from escaping, which helps to slow the spread of fire throughout your building.
Versatile Adhesive Backing
Fitting a seal to different surface types like MDF or hardwood can often lead to adhesion failure over time. The high performance backing tape used here is selected specifically to bond strongly to a wide range of common joinery materials, so you spend less time replacing loose seals after the door is installed.
Acoustic Noise Reduction
Modern building standards often require noise control between rooms to ensure occupant comfort. Because this seal includes twin acoustic fins, it actively muffles sound transfer through the door gap. It is an excellent choice for bedrooms, boardrooms, or private studies where you want a quieter environment without sacrificing your essential fire safety standards.
Compliance Standards
This product holds the necessary fire and smoke testing evidence to satisfy building inspectors across the United Kingdom. With Certifire approval and BBA certification, you know that the technical data is accurate and the material performance is verified against the relevant British and European standards for fire resistance and durability.
Low Maintenance Operation
Once fitted, these seals require almost no attention throughout their operational life. They are designed to withstand regular movement and air pressure changes without fraying or becoming brittle. This reduces the need for regular inspections or complex repairs, as the material retains its physical integrity even after thousands of door cycles.
Engineering Quality and Daily Performance
The combination of PVC encasing and a sodium silicate core provides a product that is both stable and highly effective under extreme stress.
Internal Mechanism and Force Distribution
The internal core consists of intumescent material that remains dormant under normal conditions. When temperatures rise significantly during an incident, this core expands rapidly to exert enough pressure to fill the door gap completely. The PVC casing acts as a protective skin that keeps the intumescent material dry and safe from the moisture that naturally occurs in buildings.
By distributing this expansion force evenly across the frame depth, the seal creates a tight structural barrier that stays in place. The elastomeric blades handle the daily contact with the door edge, which prevents the main intumescent section from being scuffed or worn away by frequent opening and closing.
Weather Resistance and Long-Term Finish
The light brown colour is integrated into the PVC material itself, so it does not chip or peel off like surface paint might. This ensures the seal maintains a uniform appearance for years after it is installed. It remains resistant to standard cleaning chemicals, which helps you maintain a smart appearance in high traffic public areas.
Because the material is naturally flexible, it does not become brittle when temperatures fluctuate during different seasons. You get a consistent seal that remains soft to the touch, which prevents the door from becoming difficult to latch shut in cold weather while keeping your fire safety protocols intact throughout the year.
Installation and Operational Workflow
Following these steps will provide a clean and secure fit for your new fire and smoke seals.
Prepare the Rebate
Clean the door rebate thoroughly to remove all dust, grease, and wood shavings. If you have recently painted the frame, wait until the paint is fully cured, as wet or soft paint can interfere with the adhesive strength of the backing tape and lead to the seal detaching later.
Cut to Length
Measure the length of your door frame edges accurately and cut the seal to size. You can use a sharp pair of industrial shears or a fine tooth saw to achieve a clean edge, which prevents the material from fraying at the corners where the vertical and horizontal seals meet.
Position and Press
Peel back the adhesive cover and align the seal centrally within the groove. Apply firm pressure along the entire length to activate the adhesive. Start from one end and work your way across the frame to avoid air bubbles, which helps to lock the seal firmly into the door frame rebate.
Expert Installation and Care Tip
When applying the adhesive, apply extra pressure at the corners to ensure a full seal against air gaps. Do not use oil or solvent based primers on the door frames as these chemicals can dissolve the adhesive backing and cause the seal to fail prematurely.
Technical Specifications
| Feature | Rating / Standard | Practical Details |
|---|---|---|
| Fire Rating | BS 476-22 / EN 1634-1 | Suitable for use in FD30 applications |
| Smoke Rating | BS 476-31.1 | Tested for ambient smoke leakage prevention |
| Gap Tolerance | 3mm to 4mm | Optimised for standard fire door frame clearances |
| Durability | 100,000 Cycles | Tested for long term use in busy buildings |
| Certification | Certifire CF330 | Verified performance for trade and public use |
Longevity and Trade Reliability
These seals provide a long-term solution for high-traffic environments where durability is just as important as fire safety. Their proven cycle count confirms they remain effective even after years of daily use, making them a cost-effective choice for facility maintenance.
Compatibility and Fitting Notes
Specification
| Manufacturer | Lorient |
|---|---|
| Finish | Brown |
| Dimensions | 2100 x 10 x 4mm |
