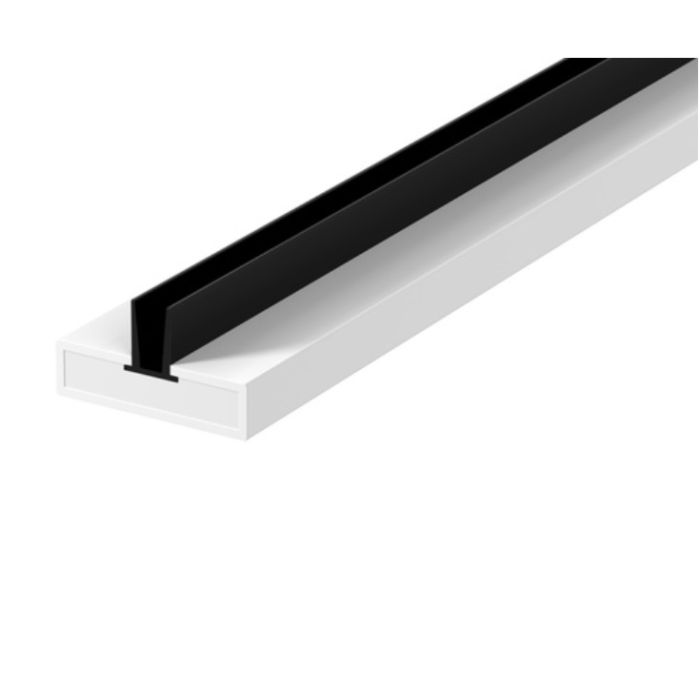

2.1M LP1004TS White 10mm Acoustic Smoke & Intumescent Fire Seal
Twin Blade in Middle for FD30 doors
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
-
Buy 60 +save 10%
-
Buy 120 +save 15%
-
Buy 200 +save 20%
Description
2.1M LP1004TS White 10mm Acoustic Smoke and Intumescent Fire Seal
Managing the performance of fire doors requires hardware that delivers on every front. This LP1004TS seal acts as a barrier against fire, smoke, and unwanted noise infiltration while maintaining the structural integrity of your internal door sets. It serves as an essential component for projects requiring high-level fire safety standards without compromising the daily acoustic comfort of the building occupants.
Crafted to fit seamlessly into standard 10mm door grooves, the white finish provides a clean aesthetic that blends into most interior decor schemes. The dual-purpose design ensures that your environment remains compliant with building regulations while helping to contain thermal energy, which makes it a smart choice for modern construction and renovation projects alike.
Why Choose the 2.1M LP1004TS White 10mm Acoustic Smoke and Intumescent Fire Seal
This seal provides a multi-functional approach to fire safety and noise control for your internal door assemblies.
Advanced Fire and Smoke Protection
The core of this product uses sodium silicate material that expands rapidly when exposed to intense heat. This reaction seals the gaps around the door frame, which stops the spread of fire. The inclusion of flexible fins adds a layer of smoke containment, so that you keep fire and toxic fumes restricted to the source room.
Effective Acoustic Dampening
Noise management is a priority in offices and homes. The twin-blade design works to dampen sound transmission through the door gap. By effectively closing the space between the leaf and the frame, these seals prevent noise leakage, which makes your rooms feel private, quiet, and far more comfortable for those using the building daily.
Ease of Operation
We designed the elastomeric fins with low frictional resistance to ensure that your doors remain easy to open and close. You avoid the heavy resistance often associated with cheaper alternatives, meaning you can maintain high safety standards without the doors feeling stiff or difficult for users to operate throughout the day.
Engineering Quality and Daily Performance
High-grade materials meet precise manufacturing standards to deliver long-term protection for your door sets.
Internal Mechanism and Force Distribution
The internal core is constructed from high-quality sodium silicate encased within a durable PVC shell. This material is carefully formulated to respond at a specific temperature threshold, which provides a predictable and rapid expansion when fire occurs. The structure remains stable under normal conditions, so your fire strategy is ready to trigger exactly when the situation requires.
We balance the rigid intumescent core with soft elastomeric fins that absorb the impact of the door leaf closing. This design distributes closing forces across the length of the seal, which helps prevent premature wear and maintains the alignment of your door frame over time. This engineering approach gives you a product that functions correctly year after year.
Weather Resistance and Long-Term Finish
The white PVC casing acts as a protective shield for the intumescent material, keeping it safe from moisture and dust buildup. This housing makes the seal easy to clean, so the neat appearance of your door frame is preserved throughout its service life. The finish holds up well against common cleaning agents, provided you avoid harsh solvents.
Every meter of this seal is manufactured to endure rigorous use, having undergone cycle testing up to one hundred thousand times. This testing proves that the fins will maintain their shape and effectiveness even with high traffic. You gain a reliable partner in building safety that does not require constant attention or replacement to stay fully effective.
Installation and Operational Workflow
Follow these practical steps to achieve a clean and effective installation of your new fire seals.
Preparation of Grooves
Start by removing any debris, dust, or old adhesive residue from the grooves in the door frame. Use a clean, dry cloth for this task, as the surface must be pristine for the adhesive tape to bond. Do not use oil or spirit-based cleaners, because these can leave a film that prevents the seal from staying fixed.
Measurement and Cutting
Measure the length of your door frame gaps with care, allowing for a small amount of extra length if you need to mitre the corners. Use a sharp set of heavy-duty scissors or a fine-toothed saw to cut the seal to size. Ensure the cuts are straight, so that the seal fits flush against the adjacent length.
Application of Seal
Peel back the protective backing from the adhesive tape in small sections as you apply the seal. Press the strip firmly into the groove, moving steadily from the top down. Ensure the seal is seated fully, which allows the high-performance adhesive to grip the substrate and provide a long-lasting, secure finish that will not lift.
Expert Installation and Care Tip
When fitting the seal, avoid stretching the material as you press it into the groove. Stretched seals will eventually shrink back and leave unsightly gaps at the corners, so let the material sit naturally as you bond it to the frame.
Technical Specifications
| Feature | Rating / Standard | Practical Details |
|---|---|---|
| Fire Rating | BS 476-22 and EN 1634-1 | Tested for 30-minute applications to meet essential safety compliance. |
| Acoustic Standard | BS EN ISO 10140-2 | Provides effective sound reduction for quieter room environments. |
| Smoke Control | BS 476-31.1 | Tested at ambient temperatures for reliable smoke containment performance. |
| Durability | 100,000 Cycles | Engineered to handle high-traffic doors without losing shape or function. |
| Certifications | Certifire CF330/CF341 | Independently verified for quality, safety, and long-term fire protection. |
Longevity and Trade Reliability
Our seals are engineered to offer a lasting performance that reduces the frequency of maintenance cycles. By using high-quality components and verified adhesive backing, you benefit from a professional finish that satisfies building inspectors and end-users for many years.
Compatibility and Fitting Notes
Specification
| Manufacturer | Lorient |
|---|---|
| Finish | White |
| Dimensions | 2100 x 10 x 4mm |
