2.1M LP1504TS Light Brown 15mm Acoustic Smoke & Intumescent Fire Seal
Twin Blade in Middle for FD30 doors
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
-
Buy 50 +save 10%
-
Buy 100 +save 15%
-
Buy 150 +save 20%
Description

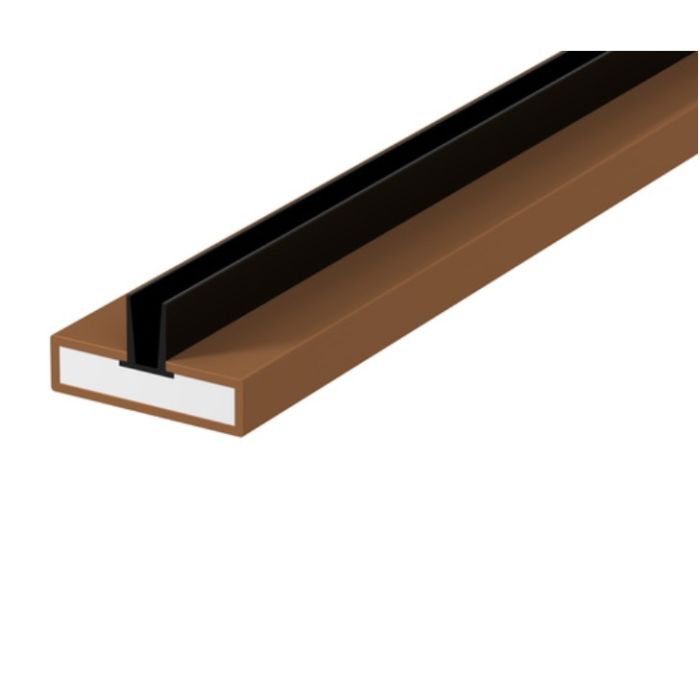

2.1M LP1504TS Light Brown 15mm Acoustic Smoke & Intumescent Fire Seal
Modern building regulations and fire safety standards require door assemblies to perform under intense pressure, which makes the choice of perimeter sealing a critical factor for contractors and building owners alike. The 2.1M LP1504TS seal offers a versatile solution designed to bridge the gap between regulatory compliance and day-to-day functional performance in commercial or residential environments where smoke and fire prevention are essential requirements.
Crafted for reliability, this twin-blade seal handles the daily friction of high-traffic doors while maintaining a consistent aesthetic profile in a light brown finish. The material composition ensures it remains stable during the early stages of fire development, as the intumescent core reacts to heat while the elastomeric fins continue to block smoke passage, keeping escape routes safer for longer durations during an emergency event.
Why Choose the 2.1M LP1504TS Light Brown 15mm Acoustic Smoke & Intumescent Fire Seal
This seal provides an all-in-one solution for improving fire safety and noise reduction in standard timber door frames.
Dual Functionality
The unit combines an intumescent core for fire protection with flexible twin blades for smoke and acoustic control. This saves time on site because you install one product instead of two, which reduces the amount of routing work required on your timber door frames for each project you undertake.
Ease of Operation
Many traditional fire seals create high levels of drag, but this design uses advanced elastomers to maintain low frictional resistance. This means occupants do not struggle to pull the door open or push it shut, which helps prevent long-term damage to door closers and latching mechanisms caused by excessive physical force.
Proven Certification
Compliance is handled through rigorous testing under British and European standards, so you have full confidence in the product on-site. With Certifire approval and IFC certification, this seal meets the documentation demands of fire inspectors who need verification that your chosen hardware provides the protection required by your building project.
Engineering Quality and Daily Performance
The design focuses on technical accuracy and high-performance materials that adapt to the movement of timber doors.
Internal Mechanism and Force Distribution
The intumescent material sits inside a protective PVC casing that shields it from moisture and cleaning chemicals during routine building maintenance. When the ambient temperature rises during a fire, the core expands rapidly to seal the gap between the door and the frame, which contains smoke and prevents the spread of flames into adjacent corridors.
The central twin blades act as a secondary barrier that stays active even before the heat reaches the trigger point. This configuration creates a reliable seal against cold smoke or air movement, which ensures that acoustic insulation levels remain high throughout the lifespan of the door assembly in busy public areas.
Weather Resistance and Long-Term Finish
Choosing a light brown finish allows the seal to blend into wood grain aesthetics, which avoids the stark appearance of black or white alternatives on oak or pine doors. The adhesive backing uses a high-bond formula that stays secure on difficult surfaces like MDF and timber, so you do not have to worry about the strip peeling away under thermal stress.
Engineers have designed the elastomeric fins to recover their original shape after repeated compressions. This is why the product reaches high cycle counts, as the material resists the permanent deformation often seen in cheaper rubber strips that lose their effectiveness after a few months of heavy daily usage.
Installation and Operational Workflow
Correct fitting is required to achieve the full fire and acoustic performance specified in the test documentation.
Surface Preparation
Clean the rebate area thoroughly to remove all dust, grease, or loose debris before you begin the application process. You must ensure the surface is completely dry and free from any solvent-based primers or oil-based paints, because these substances prevent the self-adhesive tape from creating a strong permanent bond with the timber frame.
Measuring and Cutting
Measure the length of your vertical and horizontal frames carefully, then cut the seal to size using a pair of heavy-duty snips or a sharp blade. Always allow for a small overlap at the corners to ensure a continuous seal, as small gaps at the junctions can compromise the overall fire and smoke rating of the door system.
Final Application
Peel back the protective liner from the adhesive strip in stages while pressing the seal firmly into the groove of the door frame. Use a smooth roller or a soft cloth to apply even pressure across the entire length, which activates the adhesive and guarantees the seal stays firmly in place during daily door operation.
Expert Installation and Care Tip
Verify that your door gaps are within the 3mm to 4mm range before starting, as this ensures the twin fins make contact without putting excessive strain on the hinges. Avoid using harsh chemical sprays or abrasive cloths when you clean the area, as these can degrade the elastomeric blades over time and reduce the acoustic performance.
Technical Specifications
| Feature | Rating / Standard | Practical Details |
|---|---|---|
| Fire Rating | BS 476-22 / EN 1634-1 | Tested for 30 and 60 minute timber fire doors. |
| Acoustic Standard | BS EN ISO 10140-2 | Reduces sound transmission through door perimeters. |
| Gap Tolerance | 3mm to 4mm | Designed for standard gaps in fire door frames. |
| Certification | Certifire CF330/CF341 | Verified compliance for insurance and safety audit. |
| Durability | 100,000 cycles | Extensively tested for heavy commercial use. |
Longevity and Trade Reliability
This product represents a long-term investment in building safety that does not require frequent replacement or manual adjustment. It provides reliable performance throughout the lifecycle of the door assembly, which reduces your maintenance costs and helps maintain high safety standards in the properties you manage.
Compatibility and Fitting Notes
Specification
| Manufacturer | Lorient |
|---|---|
| Finish | Brown |
| Dimensions | 2100 x 15 x 4mm |
