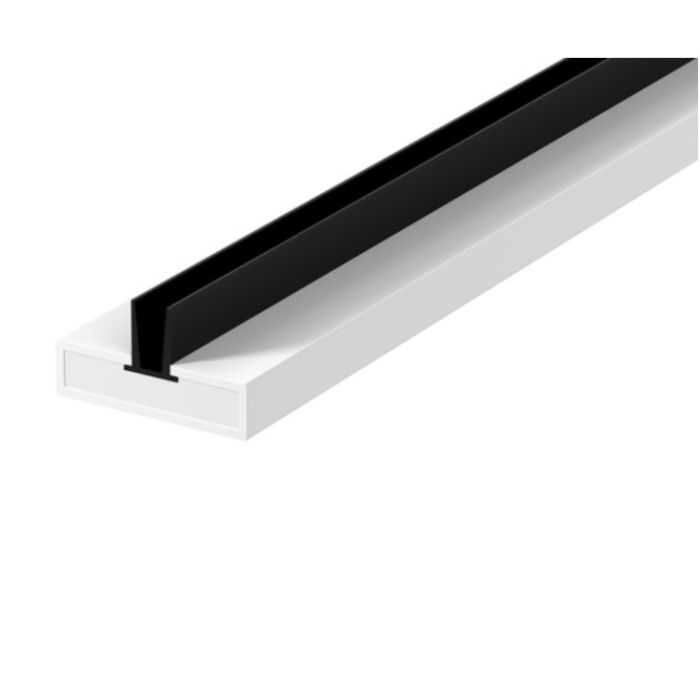

2.1M LP1504TS White 15mm Acoustic Smoke & Intumescent Fire Seal
Twin Blade in Middle for FD30 doors
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
-
Buy 50 +save 10%
-
Buy 100 +save 15%
-
Buy 150 +save 20%
Description
Protect Doors with the LP1504TS White Intumescent Seal
Managing building safety requirements involves selecting components that address fire resistance while maintaining day to day acoustic performance. The 2.1M LP1504TS seal offers a practical solution for trade professionals who need a reliable barrier against smoke migration and sound transmission. By combining an active intumescent core with high quality elastomeric fins, this product serves as a dual purpose component for single or double leaf door sets that require consistent performance across changing environmental conditions.
Build quality remains at the heart of this seal, which features a resilient PVC casing that protects the inner sodium silicate material from daily wear and tear. The twin blade configuration provides enough flexibility to accommodate minor door movements while the heavy duty adhesive backing ensures the seal stays securely in position once fitted. You can rely on this component to perform its function during the life of the door assembly because it meets rigorous UK testing standards for fire and smoke containment.
Why Choose the 2.1M LP1504TS White 15mm Acoustic Smoke & Intumescent Fire Seal
This seal provides a unified approach to fire safety and sound reduction for busy commercial or residential door environments.
Dual Function Capability
The design integrates smoke protection with intumescent fire containment which means you get two essential safety features in one installation. The twin blade fins stop cold smoke from moving between rooms during the early stages of an incident while the inner core expands to seal the gap if temperatures rise significantly.
Low Friction Operation
Operational ease is a frequent concern when installing door seals because stiff materials can make closing heavy fire doors difficult for occupants. The elastomeric fins used here offer low frictional resistance so that doors latch correctly without requiring excessive force, which helps reduce long term wear on latches and hinges.
Reliable Adhesive Attachment
Installing hardware on site requires a dependable bond that will not fail when exposed to temperature fluctuations or regular door movement. The heavy duty self adhesive backing works across a variety of common substrates, such as timber and factory finished surfaces, so you can achieve a secure fit without needing mechanical fixings.
Acoustic Sound Management
Buildings often need to balance safety requirements with the need for acoustic privacy between different office spaces or apartment dwellings. This seal performs well in noise reduction applications by creating a tight barrier that blocks airflow, which effectively limits sound transmission around the edges of the door when it is shut.
Certified Quality Standards
Evidence of compliance provides peace of mind when you are working on projects that require certification from building control officers. This product holds multiple certifications including Certifire and BBA approvals, so you can be confident that the fire and smoke performance has been verified through independent laboratory testing and analysis.
Versatile Site Compatibility
Finding a product that works on both single and double leaf door configurations simplifies your ordering process for larger site contracts. Because the seal comes in a generous 2.1M length and fits 3mm to 4mm gaps, it handles a wide range of standard fire door specifications without requiring extra custom parts.
Engineering Quality and Daily Performance
Precision manufacturing ensures that the seal remains stable and effective during the operational lifespan of the door assembly.
Internal Mechanism and Force Distribution
The internal sodium silicate core is the heart of the fire protection system, engineered to react predictably when exposed to extreme heat. It expands at a controlled rate to fill the void between the door leaf and the frame, which effectively stops fire and hot gases from spreading to adjacent rooms. This chemical reaction is triggered automatically by the rise in temperature, so it does not rely on any moving parts or electronic triggers to function.
We focus on the geometry of the twin blade fins to ensure they maintain contact with the door leaf under varying conditions. By distributing the pressure across two contact points, the seal creates a more effective barrier against smoke while also preventing the door from becoming difficult to pull shut. This balance of flexibility and strength is vital for maintaining high traffic door sets throughout their daily usage cycle.
Weather Resistance and Long Term Finish
The PVC casing provides a protective shield that keeps the intumescent material dry and safe from the effects of general moisture and cleaning agents. This housing helps maintain the integrity of the seal over thousands of openings and closings, which means the material remains capable of expanding correctly if an emergency occurs. The white finish provides a clean look that suits modern door frames and is easy to wipe down during regular maintenance.
We choose materials that resist degradation from light or atmospheric chemicals, so the seals do not turn brittle or lose their flexible properties over time. This high level of durability is critical for building managers who need to know their fire safety hardware will remain effective for many years without needing frequent replacements. The consistency of the construction ensures that you receive the same level of protection every time you install a new length.
Installation and Operational Workflow
Following these steps helps you achieve a professional and code compliant finish on every fire door installation.
Surface Preparation
Clear all debris and oils from the door frame groove to ensure the adhesive makes full contact with the substrate. You should use a dry cloth to remove dust because any residue will stop the bond from taking hold, which could lead to the seal peeling away from the frame prematurely after installation.
Accurate Measuring
Measure the length of your door frame sides and the top header carefully before cutting the seal to fit. We advise you to leave a small gap at the corners so that the door operates smoothly without crushing the fins, which maintains the integrity of the seal and keeps it looking clean over time.
Adhesive Application
Peel back the protective liner from the adhesive strip and press the seal firmly into the groove using a smooth, even motion along the entire length. Applying firm pressure along the base allows the adhesive to settle into the pores of the timber or frame material, which prevents loose sections from occurring.
Expert Installation and Care Tip
Avoid using any oil or solvent based paints on or near the seals, as these substances can weaken the material and interfere with the chemical expansion properties. If you need to clean the frame, use a mild damp cloth and avoid harsh chemicals to ensure the longevity of the adhesive bond and the flexibility of the blades.
Technical Specifications
| Feature | Rating / Standard | Practical Details |
|---|---|---|
| Fire Rating | BS 476-22 / BS EN 1634-1 | Suitable for use in FD30 and some FD60 applications. |
| Smoke Rating | BS 476-31.1 | Tested for cold smoke control at ambient temperatures. |
| Acoustic Rating | BS EN ISO 10140-2 | Provides effective sound dampening for busy corridors. |
| Durability | 100,000 Cycles | Tested for high traffic commercial and residential usage. |
| Certifications | Certifire CF330 / BBA 92/2841 | Independently audited for compliance with UK safety codes. |
Longevity and Trade Reliability
This product represents a long term investment for your building safety hardware requirements because of its rigorous cycle testing. Choosing certified hardware helps you meet building regulations while minimising the need for future maintenance or early replacement of fire safety components.
Compatibility and Fitting Notes
Specification
| Manufacturer | Lorient |
|---|---|
| Finish | White |
| Dimensions | 2100 x 15 x 4mm |
