LOR-LP2004DS-WHITE

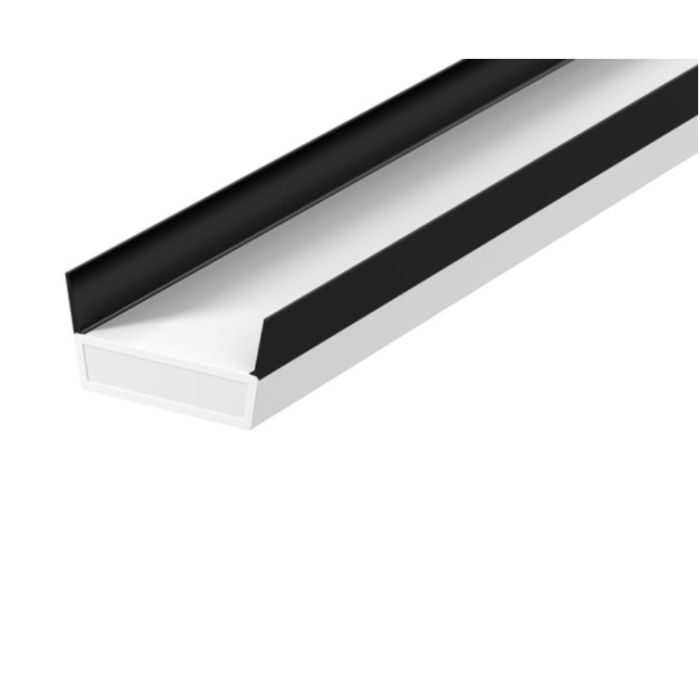

2.1M LP2004DS White 20mm Acoustic Smoke & Intumescent Fire Seal
Main image
Click to view image in fullscreen
![]()
Twin Blade on Edge, FD30/60 doors
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£11.52
Incl. VAT
£9.60
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per length
-
+
-
Buy 50 +save 10%
-
Buy 100 +save 15%
-
Buy 150 +save 20%
See our full range:
Description
2.1M LP2004DS 20mm X 4mm Acoustic Smoke & Intumescent Fire Seal in White (Twin Blade On Edge)
Our DS door seal offers the ultimate in fire, smoke + acoustic protection, with the added benefit of thermal containment. Its unique design means that whichever way round the product is installed, the seal can always be fitted in the correct place, maintaining the integrity of the acoustic + smoke seal at the ironmongery points.
A range of sizes to cover 30, 60, 90 + 120 minute applications, the DS seal also includes integral antimicrobial protection.
Application uses
- Single and double leaf doors
- Gaps 3mm to 4mm
- FD30/60 Fire doors
- Protects against fire, smoke, and sound
Specification
- Twin blade on edge
- Low frictional resistance for ease of door operation
- PVC encased sodium silicate with flexible elastomeric fins
- Heavy duty self-adhesive backing tape
- Min/max gap size 3mm/4mm
Test evidence
- Fire: BS 476-22:1987 & BS EN 1634-1:2008
- Smoke: BS 476-31.1: 1983 at ambient temperature
- Assessment: CNA/F14171
- Acoustic: BS EN ISO 10140-2:2010
- Durability: 100,000 cycles
Certification
- Certifire CF330 & CF341
- BBA certificate no. 92/2841
- IFC certification FRPP454
Fitting
All our intumescent fire seals have a heavy duty self-adhesive backing. The adhesive used has been specially selected to provide excellent adhesion on a wide range of materials, including MDF on which it is usually difficult to obtain an effective bond. Make sure grooves are free from dust and grease. Lorient does not recommend oil or solvent based paint/primers
Not sure if this Fire seal is right for your requirements?
If you are not sure if this fire seal is right for your requirements please contact our friendly team today.
Specification
| Manufacturer | Lorient |
|---|---|
| Finish | White |
| Dimensions | 2100 x 20 x 4mm |
