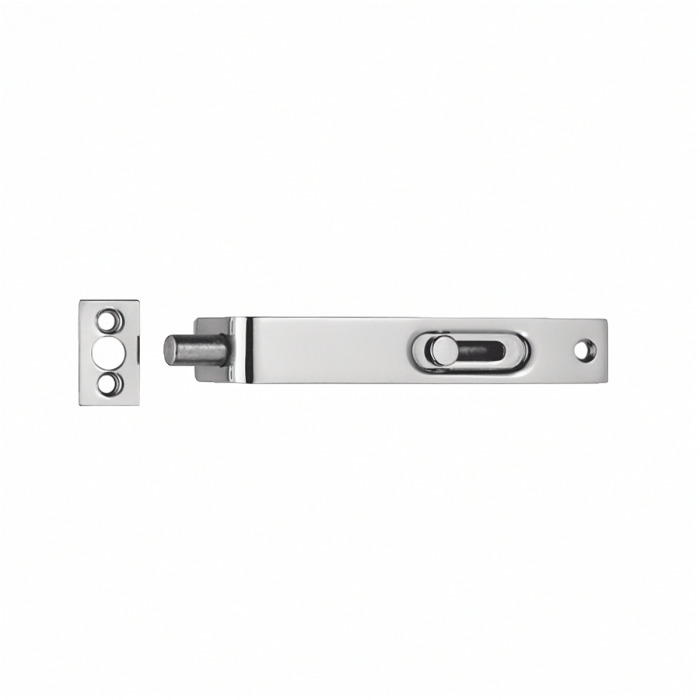

Aa79Cp Pol Chrome 102Mm X 15Mm Flush Bolt Sunk Slide
Main image
Click to view image in fullscreen
![]()
Aa79Cp Pol Chrome 102Mm X 15Mm Flush Bolt Sunk Slide
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£14.29
Incl. VAT
£11.91
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
-
+
See our full range:
Description
Reliable Inset Security with the Aa79Cp Pol Chrome 102Mm X 15Mm Flush Bolt Sunk Slide
Double interior doors and French door arrangements present a unique balance of visual appeal and structural stability. When you leave the inactive slave leaf unsecured, the entire set can rattle in drafts, struggle to latch neatly, or feel flimsy during daily operation. Traditional surface-mounted bolts often ruin clean sightlines by protruding awkwardly into the doorway, catching on passing clothing, and interrupting the timber profile. Finding an unobtrusive, durable piece of architectural hardware that keeps the slave leaf solidly anchored without dominating the aesthetic is a constant concern for joiners, renovators, and property managers alike.
The Aa79Cp Pol Chrome 102Mm X 15Mm Flush Bolt Sunk Slide solves this challenge by sitting completely flush inside the door edge. Crafted for timber door applications, this compact bolt secures the secondary leaf into either the head frame or the floor sill while remaining virtually invisible when the master door is shut. Its smooth sunk slide mechanism prevents snagging, giving you an easy, tactile action that clicks home smoothly. Finished in a mirror polished chrome, it introduces modern refinement and reliable daily stability to residential and commercial double door configurations.
Key Features and Practical Applications
Compact Mortice Footprint
Measuring exactly 102mm long by 15mm wide, this unit requires minimal timber removal during preparation. The slim width makes it suitable for standard residential door leaves where keeping structural core strength intact is vital.
Smooth Sunk Slide Action
The internal slide knob sits recessed within the plate. This flat sunk contour stops the mechanism catching on adjacent frames or door leaves, providing a positive thumb-slide travel that will not snag your fingers.
Reflective Polished Chrome
Treated with a gleaming chrome plating, this finish provides excellent resistance to daily tarnish and surface moisture. The mirror sheen complements modern handles, bathroom fittings, and contemporary ironmongery throughout your home.
Versatile Top or Bottom Fit
Designed for multiple installation points, you can mortice this flush bolt into the top edge to shoot into the frame header, or fit it at the bottom to lock firmly into a floor keep, delivering balanced leaf stability.
Step-by-Step Installation and Fitting Guide
Stage 1: Positioning and Marking
Hold the bolt against the vertical leading edge or the top edge of your secondary door leaf. Scribe precisely around the 102mm by 15mm faceplate using a sharp marking knife to define the mortice boundaries accurately.
Stage 2: Recessing and Morticing
Chisel out the shallow rebate for the faceplate so it sits flush with the timber edge. Router or drill the deeper central channel required for the bolt body and slide travel, ensuring the pocket remains completely free from wood waste.
Stage 3: Fastening the Bolt Plate
Insert the hardware into your prepared cut-out to verify that the outer face sits level with the door stile. Drill pilot holes into the timber to avoid splitting, then secure the unit using matching wood screws through the countersunk holes.
Stage 4: Aligning the Keep Plate
Close the door leaf and extend the slide bolt to mark the exact contact point on the head frame or floor. Cut the receiving mortice, mount your keep plate level with the surface, and test the throw for friction-free movement.
Detailed Specifications
Explore the full physical measurements, material details, and functional parameters for this flush slide bolt.
| Specification | Rating or Standard | Practical Details |
|---|---|---|
| Product Code | Aa79Cp | Doorfit item reference for straightforward reordering |
| Overall Faceplate Length | 102mm | Compact dimension suited for residential timber stiles |
| Overall Faceplate Width | 15mm | Narrow profile minimizing timber removal along the edge |
| Finish | Polished Chrome | Bright reflective plating with solid everyday wear resistance |
| Mechanism Type | Sunk Slide Action | Recessed thumb catch preventing perimeter friction |
| Material Core | Solid Metal Construction | Rigid body resisting movement under door pressure |
| Fixing Type | Countersunk Screw Holes | Enables screw heads to sit flush with the outer faceplate |
| Application Suitability | Interior Timber Doors | Ideal for French double doors, cupboards, and room dividers |
Maintenance and Surface Care
Maintaining the mirror finish on your polished chrome hardware is straightforward and requires very little time. Clean the visible plate periodically with a soft, clean microfibre cloth dampened with warm water and a mild non-abrasive detergent. Avoid using harsh chemical solvents, bleach, or scouring pads, as aggressive cleaners can compromise the protective chrome layer.
A drop of light machine oil or silicone-based spray applied once a year directly into the bolt channel will keep the internal slide functioning smoothly and quietly. Regular care ensures the Aa79Cp Pol Chrome 102Mm X 15Mm Flush Bolt Sunk Slide delivers dependable physical security and flawless operation for years to come.
Need Advice on Your Door Hardware Project?
Our knowledgeable ironmongery team is on hand to help you choose the right flush bolts, latches, and complementary accessories for your property layout.
Contact Our TeamSpecification
| Manufacturer | Carlisle Brass |
|---|---|
| Finish | Polished Chrome |
| Dimensions | 102 x 15mm |
