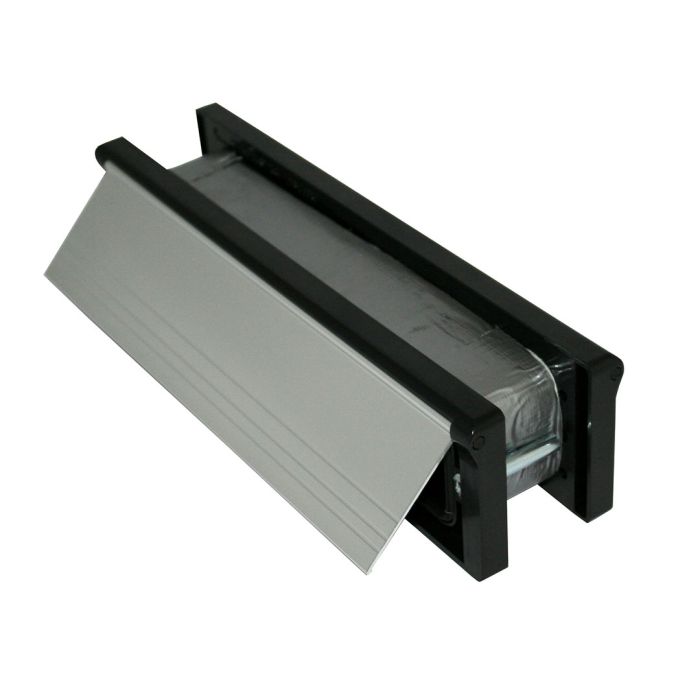

Astro FX 10" Eco Telescopic Letter Box FD30 Fire Rated
Main image
Click to view image in fullscreen
![]()
Intumescent Fire Rated Letter Plate
In stock
Order in the next 10 hour(s) and 7 minute(s), for delivery on Monday (8th Sep)
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£22.01
Incl. VAT
£18.34
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
See our full range:
Description
Astro FX 10" Eco Telescopic Letter Box FD30 Fire Rated
Acoustic and thermal performance features include brush pile draught excluders, integral sound dampening bumpers and a fully sealed backplate.
During a fire the intumescent liner rapidly expands and seals off the letterbox opening, preventing the spread of fire and smoke whilst maintaining the integrity of the fire door assembly.
Applcation Uses
The Astro eco telescopic letterbox system range is specifically designed to increase the safety and security of occupants against fire and is particularly suited to multiple occupancy residential buildings.
Specification
- Adjustable Telescopic fitting
- ABS framed
- Metal flaps
- High performance intumescent liner
- Flaps open to 180°
- Brush pile draught excluders
Dimensions
- Overall size - 10 ¾" x 2 ¾" (272mm x 70mm)
- Aperture - 8 ¾" x 1 ½" (221mm x 37.5mm)
- Door Thickness - Min 40mm - Max 80mm
- Cut out required is 241mm x 57mm
Standards
- Tested in accordance with BS 476 part 20 & 22: 1987 (30 minute rated)
- Acoustic tested achieving 32dB Rw
- Tested to BS EN 13724 Clause 6.6.5
- Tested in accordance with EN 1634-1: 2004 (30 minute rated)
- Smoke tested in accordance with BS EN 1634-3: 2004
Not sure if this Letter Plate is right for your requirements?
If you are not sure if this letter plate is right for your requirements please contact our friendly team today.
Specification
| Manufacturer | AstroFlame |
|---|---|
| Finish | Silver Anodised Alum |
| Dimensions | 272mm x 70mm |
