AVO-DLPN352H2RT-LOCK
Avocet Pioneer 35mm 2 Hook 2 Roller Multipoint Door Lock 92/62 PZ
Main image
Click to view image in fullscreen
![]()

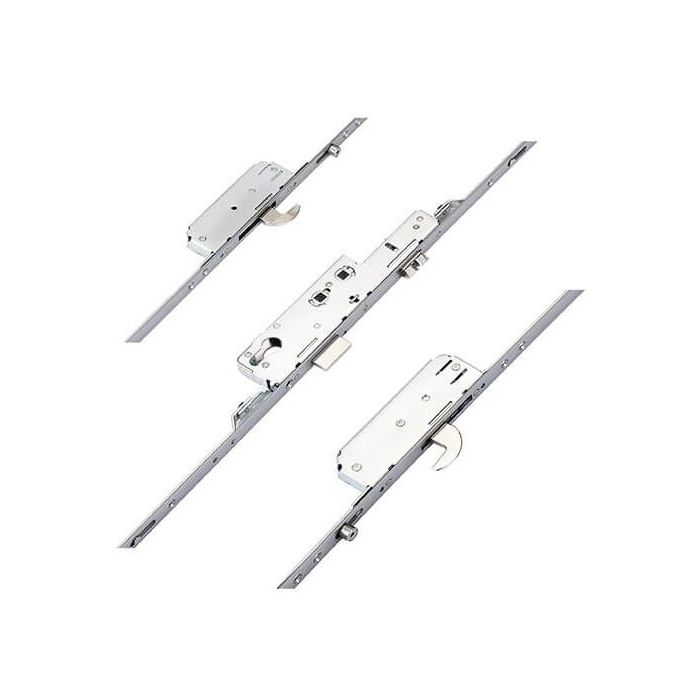

Avocet DLPN352H2RT multipoint door lock
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£78.72
Incl. VAT
£65.60
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
See our full range:
Description
Avocet Pioneer 2 Hook 2 Roller Multipoint Door Lock 35mm backset 1240mm between hooks 92/62mm centres
An Avocet twin spindle latch and deadbolt multipoint with two hooks and two rollers. The faceplate is 16mm and it is lever operated with the gearbox accepting a euro cylinder that is not supplied.
Features
- Trivalent silver finish
- 92/62mm Twin spindle
- 16mm faceplate
- Reversible centre latch to suit all applications
- Latch can be changed from the faceplate without removing unit from the profile
- Suitable for lever-lever and lever-pad applications
- Two roller cams for effortless operation
- Two opposing hooks
Operation:
Lift lever or double spindle nightlatch.
Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock.
Latch reversal:
Depending on date of manufacture either - Undo hexagonal screw on side of lock case to remove latch. Reverse, reinsert and replace screw.Or undo screw in centre of latch, reverse, reinsert and replace screw.
Sizes
- Centres : 92mm/62mm
- Overall length: 2200mm
- Case height : 220mm
- Case depth : Backset + 18mm
- Faceplate : 16mm
- Distance between rollers: 1440mm
- Distance between hook bolts: 1240mm
Standards
Performance: Gearboxes are tested to 100,000 operations.
Corrosion resistance: Meets requirements of BS EN 1670 Grade 4
Not sure if this Multipoint Lock is right for your requirements?
If you are not sure if this multipoint lock is right for your requirements please contact our friendly team today to discuss your requirements.
Specification
| Manufacturer | Avocet |
|---|---|
| Guarantee | 12 Months |
| Lock Type | Multipoint |
| Lock Operation | Euro Cylinder |
| Lock Backset | 35 |
| Lock Centres | 92/62 |
| Follower Size (mm) | 8 |
| Faceplate Width | 16mm |
| Environmental Suitability | Exterior |
| Mechanism | 2 Rollers - 2 Hooks |
| Door Material Suitability | UPVC |
| Max Door Thickness (mm) | 65 |
| Forend Finish | Stainless Steel |
