ADO-14929 SSS HINGE

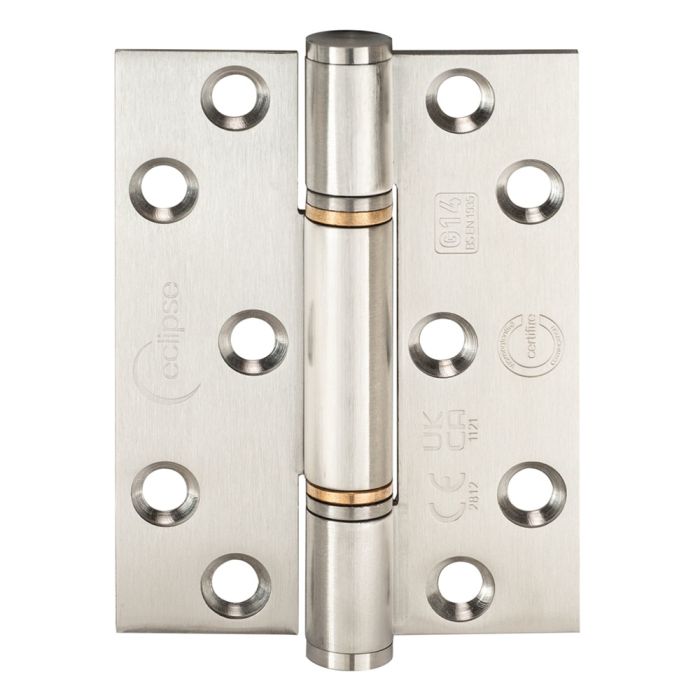

Insignia 14929 102 X 76 X 3mm S.S.S. Self Lubricating Hinge Grade 14 CE Marked
Main image
Click to view image in fullscreen
![]()
Heavy Duty Low Maintenance CERTIFIRE approved Butt Hinge
In stock
Order in the next 1 hour(s) and 8 minute(s), for delivery on Monday (15th Dec)
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£18.17
Incl. VAT
£15.14
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per pair
See our full range:
Description
Insignia 14929 102 x 76 x 3mm Satin Stainless Steel Thrust Ball Bearing Butt Hinge
A high quality Grade 14 CE Marked butt hinge, suitable for heavy duty applications
Specification
- Sold as pairs
- Grade 201 Stainless Steel
- Grade 14 (160kg Max weight)
- Satin finish
- Thrust ball bearing for smooth operation
- Self lubricating low maintenance
- Square corners
- 12 Gauge Countersunk
- Supplied With 12×1.1/2″ Pozi Drive 3/4″ Threaded Screws
Dimensions
- Height - 102mm
- Width - 76mm open
- Thickness - 3mm
Fire Testing
Successfully fire tested in accordance with the requirements of BS EN 1634-1, suitable for use on timber fire doors upto 120 minutes and steel fire doors upto 240 minutes.
Certification
- CE Marked 2812
- UKCA Marked 1121
- CERTIFIRE approved (Certificate CF336)
- BS EN1935 Performance Tested 200,000 Cycles To Grade 14
- BS EN1634 Fire Tested
Not sure if this Door Hinge is right for your requirements?
If you are not sure if this door hinge is right for your requirements please contact our friendly team today to discuss your requirements.
Specification
| Manufacturer | Eclipse |
|---|---|
| Finish | Satin Stainless Steel |
| Dimensions | 102 x 76 x 3 |
| Hinge Type | Butt Hinge |
| Security Standards | Grade 13 |
| Certifire Approved | Yes |
| CE Marked | Yes |
