Trojan 3D Composite Door Hinge White
Main image
Click to view image in fullscreen
![]()
Trojan 3D Composite Door Hinge White
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£20.64
Incl. VAT
£17.20
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
-
+
-
Buy 3 +save 10%
-
Buy 6 +save 15%
-
Buy 24 +save 25%
See our full range:
Description
Trojan 3D Composite Door Hinge White
Achieving the perfect balance between robust structural engineering and aesthetic refinement is the ultimate goal for any door installation project. The Trojan 3D Composite Door Hinge White stands as a benchmark in the architectural hardware industry, providing installers and homeowners with a versatile solution for modern entranceways. This premium component is engineered to facilitate smooth operation while maintaining the integrity of the door assembly over extended periods of usage.
When you invest in high quality hardware, you are ensuring that your doors operate with precision every single day. This specific model excels in environments where reliability and long term performance are non negotiable requirements. Whether you are a professional installer looking for a quick fitting mechanism or a homeowner seeking a durable replacement, this product offers an unbeatable combination of innovation and practical quality.
Unrivalled Engineering and Structural Dynamics
The mechanical physics behind this hardware are quite remarkable. Every time a door is opened or closed, it exerts significant lateral and vertical forces on the hinges. Lesser hardware often succumbs to these stresses, resulting in sagging or uneven gaps between the door leaf and the frame. This model counteracts these physical forces by employing a high grade construction that resists material fatigue and deformation.
The design team has focused heavily on load distribution mechanics. By allowing for simultaneous vertical adjustment across all installed hinges, the system ensures that the weight of the door is spread evenly rather than concentrated on a single stress point. This careful engineering prevents premature wear and ensures that your doors remain easy to operate throughout their entire lifespan.
- The hinges are designed specifically for use with composite and timber doors to provide maximum compatibility.
- Users can benefit from full 3D adjustment capabilities to achieve a truly perfect door fit in any weather condition.
- The vertical adjustment mechanism works across all hinges simultaneously to ensure that the load is distributed evenly across the frame.
- Lateral adjustment is completed in a single operation which guarantees that the door is aligned perfectly on the pivot axis.
- The internal design fits neatly into the rebate to maintain a clean and unobtrusive appearance while ensuring high levels of security.
- Every finish on this component is fully UV rated to prevent fading or discolouration when exposed to harsh sunlight.
- The sash can be removed from the frame with minimal effort to allow for a faster and safer installation process.
Operational Workflow for Installers and Homeowners
The installation process has been refined to be as intuitive as possible. When a technician begins the fitting, they first mount the frame plates into the pre routed rebate sections. Because the hinge is designed to be detached, the door slab can be offered up to the frame and secured with the pin mechanism once the frame plates are fixed. This separation of the door leaf from the weight of the hinge assembly during the initial hanging phase significantly reduces physical strain on the installer.
Once the door is hanging, the adjustment process begins. The user can manipulate the lateral position, vertical height, and compression settings to achieve a perfect seal against weather stripping. This is often done with a simple hex key, meaning no heavy machinery or complex alignment tools are required. The clear tactile feedback provided during the adjustment phase allows for fine tuning the door position by millimetre increments, ensuring that the latch and locking points engage with absolute precision.
Ergonomic Benefits and Safety Compliance
Properly hung doors are essential for both ergonomic health and facility safety. A door that is difficult to open because it is dragging on the floor or binding against the frame requires excessive physical force to operate. Over time, this repetitive exertion can lead to unnecessary strain on the musculoskeletal system of the user. By using this precision hardware, you ensure that the door operates with minimal friction, making it accessible and easy to use for everyone in the household or office environment.
Furthermore, the high level of adjustability ensures that safety compliance is maintained. A door that is not properly aligned may fail to close securely into its locking mechanism, leaving the property vulnerable. By maintaining a tight and even seal through compression adjustments, this hinge contributes to the overall thermal efficiency and security of the building. Investing in such reliable hardware is an essential step toward meeting modern building regulations and safety standards.
Need expert advice? If you are not sure if this hinge is right for your requirements, please contact our friendly team today. We are here to help you navigate your door hardware specifications.
Long Term Commercial Value and Asset Protection
From a commercial perspective, the true value of this equipment lies in its durability and the reduction of maintenance cycles. In a busy environment, doors can experience hundreds of cycles per week. Cheap hinges often fail within a few years, leading to costly call out charges for repairs and potential security risks if the door is left unlatched. By selecting a heavy duty, 100kg rated hinge, you are making a strategic investment in the longevity of your assets.
The ability to adjust the hinge as the building settles or as the timber doors expand and contract due to humidity means that the door remains functional without the need for expensive replacement or major modification. This long term durability effectively eliminates the need for repeated maintenance, lowering the total cost of ownership significantly over the lifetime of the property.

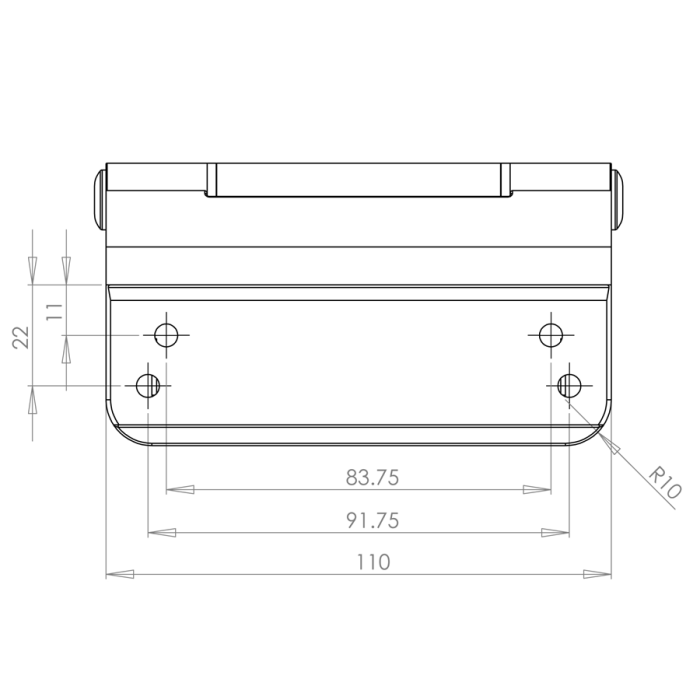

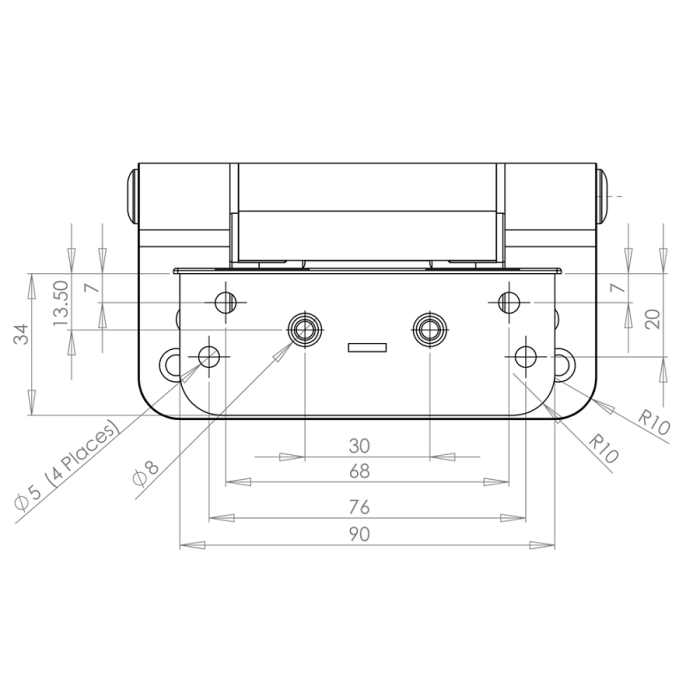

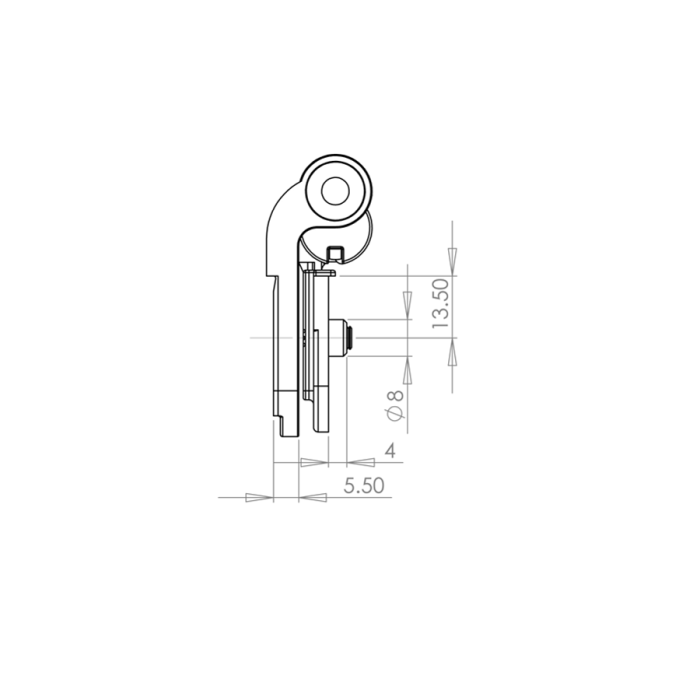

Technical Specifications
Understanding the specific technical capabilities of your hardware is critical for ensuring that it meets the requirements of your specific door project. Please refer to the table below for a comprehensive summary of the physical parameters and adjustment limits for the Trojan 3D Composite Door Hinge White.
| Feature | Specification |
|---|---|
| Maximum Load Capacity | 100kg when using 3 hinges |
| Vertical Adjustment | + / - 4mm |
| Lateral Adjustment | + / - 3mm |
| Compression Adjustment | + / - 1.75mm |
| Overall Height | 110mm |
| Compatibility | Composite and timber doors |
| Maximum Door Size | 1m wide by 2.2m high |
| Opening Direction | Suitable for inward and outward opening |
| Handing | Universal fit for left and right handed doors |
Maintenance and Care Guidelines
To keep this hardware operating at its peak potential, we recommend a simple maintenance routine performed twice per year. All moving parts should be lightly lubricated using a high quality non acidic mineral oil, such as a standard 3 in 1 product. Simply apply a small amount to the pivot points to ensure smooth movement.
Additionally, the surface of the hinge should be cleaned with a soft damp cloth to remove any accumulated dust or grime. During your routine inspections, it is wise to check that all fixings are tightened correctly. Regular maintenance will preserve the finish and ensure that the mechanical components continue to provide the smooth performance that you expect from premium hardware.
Choosing the right hardware for your composite or timber doors is a decision that impacts the security and convenience of your home or office. With its versatile adjustment range, robust 100kg weight capacity, and simple installation process, the Trojan 3D Composite Door Hinge White is an industry leading choice. Trust in the quality of Doorfit to provide the components you need for a professional and long lasting installation.
Specification
| Manufacturer | Trojan |
|---|---|
| Finish | White |
| Hinge Type | Composite |
