Union L2C24S DDA 55mm Backset 72mm C/C Euro Nightlatch Satin

Union L2C24 55mm Satin Euro Profile Nightlatch BS EN12209

The UNION L2C24 mortice nightlatch is the ideal solution to assist in fulfilling duties under DDA legislation

Application uses

• For timber door hinged on the left or the right
• Satisfies BS8300 and Approved Document M

Features

• Modular case range
• European style casing with 72mm centres which accommodates most euro profile cylinders
• Pierced to accept bolt through furniture and security rose
• Suitable for unsprung lever furniture up to a maximum weight of 0.75kg
• Easily reversible stainless steel latch bolt
• Latch Bolt: Stainless steel
• Follower: Zinc, 8mm
• 5 Year Guarantee

Operation

• Key operation from outside of the door and single handle operation from inside

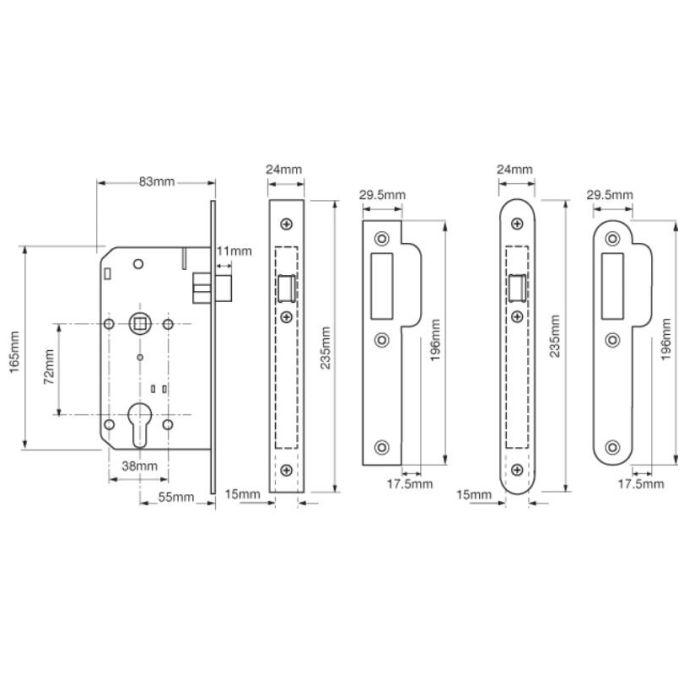

Sizes

• Case Size: 83mm
• Backset: 55mm
• Faceplate: 235mm x 24mm
• Case height: 165mm
• Centres: 72mm
• Escutcheon screw centres: 38mm

Finish

• Case: Steel, black powder coat
• Forend: Satin stainless steel
• Strike plate: Finished to match forend

Standards

• Tested to BS EN 12209 : 2003
• CE Marked
• EN 1634-1 assessed for use on 30 and 60 minutes timber fire doors
• EC Certificate number: 0832-CPD-6045
• Assists in fulfilling duties required under the Equality Act (EA)
• Satisfies recommendations of BS8300 and Approved Document M (ADM)

Not sure if this mortice lock is right for your requirements?

If you are not sure if this mortice lock is right for your requirements please contact our friendly team today.
