Assa 765 Modular Sashlock 50mm Satin Chrome
In stock
See our full range:
Description

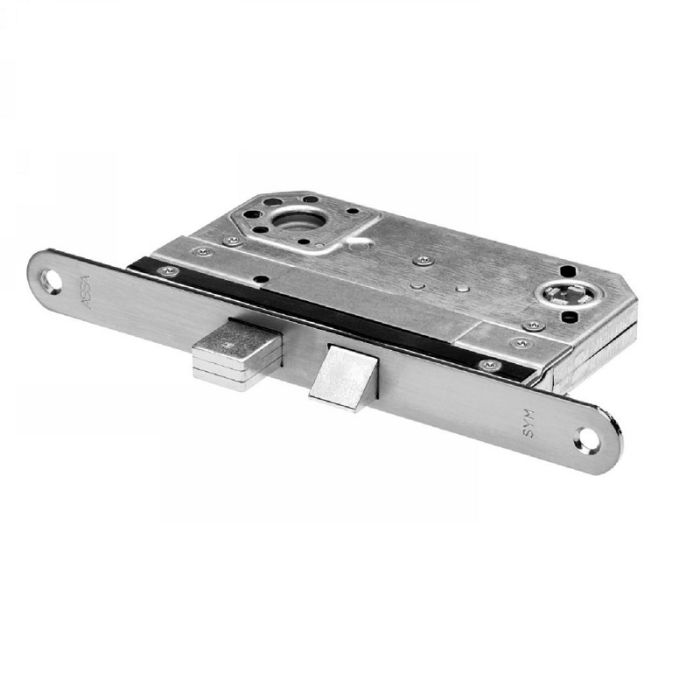

Assa 765 Modular 50mm Sashlock Case Satin Chrome
Robust locks for high usage areas, engineered for smooth performance over many years Innovative modular design gives an immense range of options, suitable for virtually any application Distinctive ergonomic design CE marked
Cylinders & accessories sold separately
Application uses
- The Assa 765 Modular sashlock case is suitable for shops and entrance doors to private houses, industrial premises, offices or for any situation where a key operated deadlock is required plus a latch and lever handles.
- High usage areas
Specification
- Hardened steel deadbolt thrown 21mm
- Latchbolt reversible without opening lockcase.
- Cylinder and accessories bolt through lockcase for added strength.
- Available in 50mm and 70mm backsets.
- Supplied as standard with striking plate.
- CE marked
- Tested to EN12209
Operation
- Lever handle retracts latchbolt
- Deadbolt thrown 21mm by 90° turn of key or thumbturn. (sold separately)

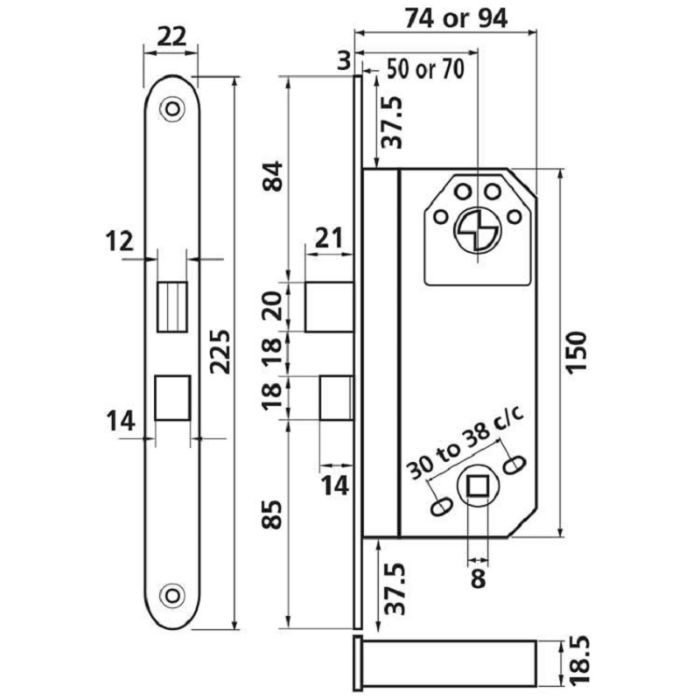

Dimensions
- Case height - 150mm
- Case depth - 74mm
- Backset - 50mm
- Faceplate - 225 x 22mm
Not sure if this Assa Lockcase is right for your requirements?
If you are not sure if this Assa lockcase is right for your requirements please contact our friendly team today.
Assa 765 Modular 50mm Sashlock Case Satin Chrome
Robust locks for high usage areas, engineered for smooth performance over many years Innovative modular design gives an immense range of options, suitable for virtually any application Distinctive ergonomic design CE marked
Cylinders & accessories sold separately
Application uses
- The Assa 765 Modular sashlock case is suitable for shops and entrance doors to private houses, industrial premises, offices or for any situation where a key operated deadlock is required plus a latch and lever handles.
- High usage areas
Specification
- Hardened steel deadbolt thrown 21mm
- Latchbolt reversible without opening lockcase.
- Cylinder and accessories bolt through lockcase for added strength.
- Available in 50mm and 70mm backsets.
- Supplied as standard with striking plate.
- CE marked
- Tested to EN12209
Operation
- Lever handle retracts latchbolt
- Deadbolt thrown 21mm by 90° turn of key or thumbturn. (sold separately)
Dimensions
- Case height - 150mm
- Case depth - 74mm
- Backset - 50mm
- Faceplate - 225 x 22mm
Not sure if this Assa Lockcase is right for your requirements?
If you are not sure if this Assa lockcase is right for your requirements please contact our friendly team today.
Specification
| Manufacturer | Assa |
|---|---|
| Finish | Satin Chrome |
| Lock Type | Mortice Sashlock |
| Lock Operation | Scandinavian Cylinder |
| Lock Backset | 50mm |
| Follower Size (mm) | 8 |
| Faceplate Width | 22mm |
| Environmental Suitability | All |
| Door Material Suitability | Wood |
| Forend Finish | Chrome |
