Assa 765 Modular Sashlock 70mm Satin Chrome
Main image
Click to view image in fullscreen
![]()
with a hardened steel deadbolt and reversible latchbolt
In stock
Order in the next 13 hour(s) and 59 minute(s), for delivery tomorrow
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£140.32
Incl. VAT
(Save 30%)
£116.93
Excl. VAT
£98.22
Incl. VAT
£81.85
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
See our full range:
Description
Assa 765 Modular 70mm Sashlock Case Satin Chrome
Robust locks for high usage areas, engineered for smooth performance over many years Innovative modular design gives an immense range of options, suitable for virtually any application Distinctive ergonomic design CE marked
Cylinders & accessories sold separately
Application uses
- The Assa 765 Modular sashlock case is suitable for shops and entrance doors to private houses, industrial premises, offices or for any situation where a key operated deadlock is required plus a latch and lever handles.
- High usage areas
Specification
- Hardened steel deadbolt thrown 21mm
- Latchbolt reversible without opening lockcase.
- Cylinder and accessories bolt through lockcase for added strength.
- Available in 50mm and 70mm backsets.
- Supplied as standard with striking plate.
- CE marked
- Tested to EN12209
Operation
- Lever handle retracts latchbolt
- Deadbolt thrown 21mm by 90° turn of key or thumbturn. (sold separately)

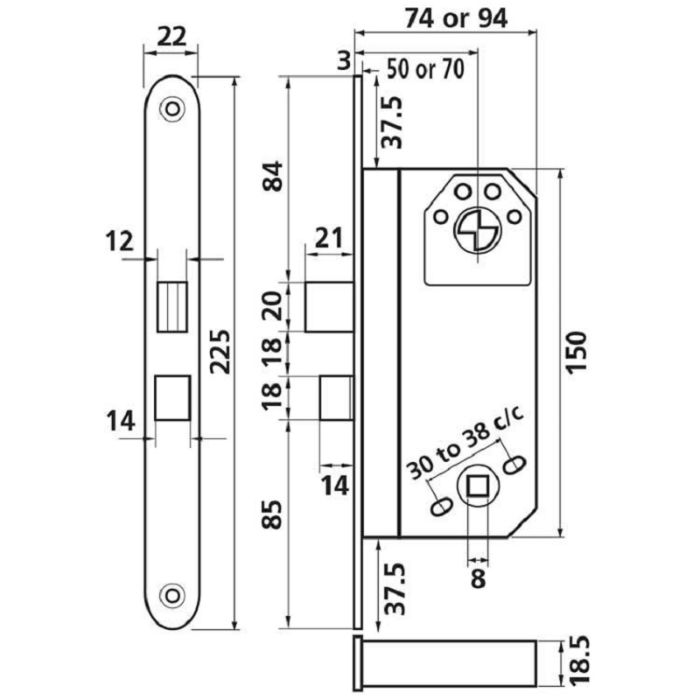

Dimensions
- Case height - 150mm
- Case depth - 94mm
- Backset - 70mm
- Faceplate - 225 x 22mm
Not sure if this Assa Lockcase is right for your requirements?
If you are not sure if this Assa lockcase is right for your requirements please contact our friendly team today.
Specification
| Manufacturer | Assa |
|---|---|
| Finish | Satin Chrome |
| Lock Type | Mortice Sashlock |
| Lock Operation | Scandinavian Cylinder |
| Lock Backset | 70mm |
| Follower Size (mm) | 8 |
| Faceplate Width | 22mm |
| Environmental Suitability | All |
| Door Material Suitability | Wood |
| Forend Finish | Chrome |
