Union 3K70 5 Detainer Sashlock 73mm Satin (Chubb At Heart)

Union 3K70 5 Detainer Sashlock 73mm Satin (Chubb At Heart)

More Views

Union 3K70 5 Detainer Sashlock 73mm Satin (Chubb At Heart)

Product ID: CHU3K70073SC

Was: £245.65

Was: £204.71

Now: £163.77 Excl. VAT £196.52 Incl. VAT

You Save: £49.13

You Save: £40.94

Price is for/per each

In Stock for immediate delivery

Unsure this is the product you need?
Give our experts a call on 0121 418 3415

Product Description

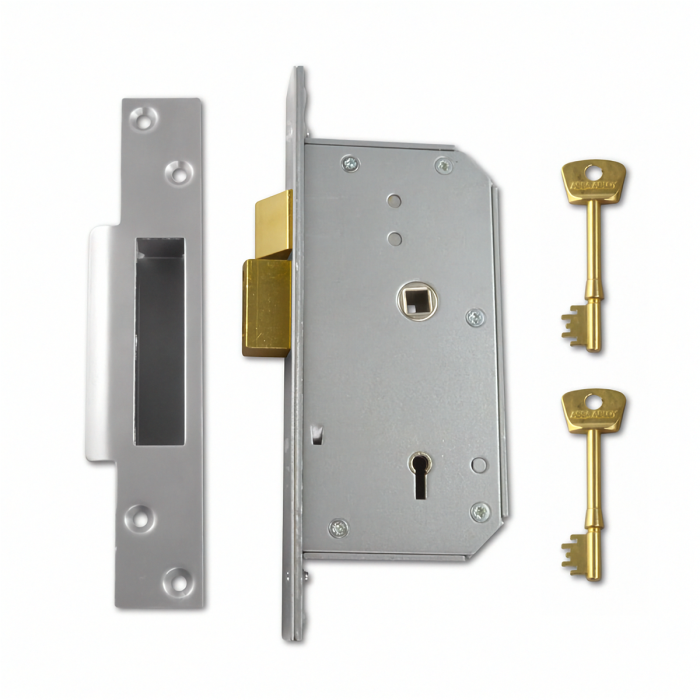

Union (Chubb At Heart) 3K70 73mm Satin 5 Detainer Mortice Lock with 2 Keys

Application uses

  • For timber door hinged on the left or the right
  • Keys are suitable for use on doors up to 50mm thick
  • Detainer style locks provide a higher number of key combinations than lever locks

Features

  • Force resistant, anti-pick and anti-saw security features
  • Available with square forend and striking plate
  • 14mm bolt throw
  • Deadbolt: Brass, with hardened steel rollers
  • Latch Bolt: Brass
  • Follower: Sintered Iron
  • Keys supplied: Supplied with 2 keys
  • 10 Year Guarantee

Operation

  • Deadbolt is locked or unlocked by key from either side
  • Latch bolt withdrawn by lever handle from either side

Sizes

  • Case Size: 73mm (3")
  • Backset: 44mm
  • Faceplate: 200mm x 25mm
  • Case height: 148mm
  • Centres: 56mm

Finish

  • Case: Steel, silver powder coat
  • Forend: Satin chrome plated
  • Box Strike: Finished to match forend

Standards

  • EN 1634-1 assessed for use on 60 minute timber fire doors

Not sure if this mortice lock is right for your requirements?

If you are not sure if this mortice lock is right for your requirements please contact our friendly team today.

Additional Union 3K70 5 Detainer Sashlock 73mm Satin (Chubb At Heart) Information

Manufacturer Union
Dimensions 148 (H) x 73 (D)
Guarantee 10 Year
Lock Type Mortice Sashlock
Lock Operation Lever
Lock Backset 44mm
Lock Centres 57mm
Follower Size (mm) 8
Faceplate Width 25mm
Environmental Suitability All
Mechanism Sashlock
Door Material Suitability Wood
Max Door Thickness (mm) 50
Forend Finish Chrome
