PAR224176SCP

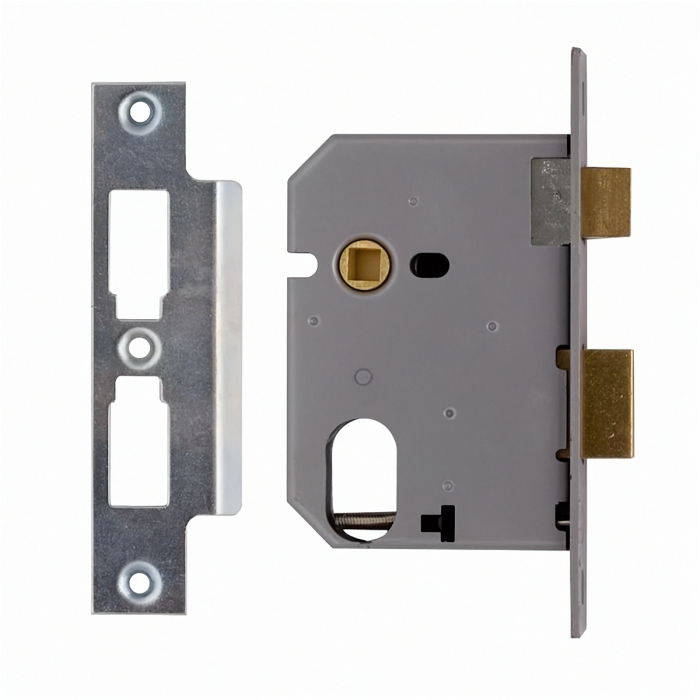

Union L2241 Oval Sashlock 76mm Satin Chrome
Main image
Click to view image in fullscreen
![]()
Union L2241 76MM Scp Sash Door Lock Case
In stock
Order in the next 13 hour(s) and 56 minute(s), for delivery tomorrow
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£51.47
Incl. VAT
£42.89
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
See our full range:
Description
Union 2241 76mm Satin Chrome Oval Profile Sashlock
Application uses
- For timber doors hinged on the left or right
Features
- Deadbolt: Brass, with hardened steel rollers
- Latch Bolt: Brass, reversible
- Follower: Brass, 8mm square
- 12mm Deadbolt throw
- Reversible latch bolt
- Pierced to accept bolt through furniture
- Available with square forend and striking plate
- 10 Year Guarantee
Operation
- Deadbolt is locked or unlocked by oval cylinder key or cylinder turn - such as 2X13
- Latch bolt withdrawn by lever handle
Sizes
- Case Size: 77.5mm (3")
- Backset: 57mm
- Centres: 48.5mm
- Faceplate: 152.5mm x 25.5mm
- Case height: 108mm
Finish
- Case: Steel, silver powder coat
- Forend: Satin chrome plated
- Striking Plate: Finished to match forend
Standards
- EN 1634-1 assessed for use on 60 minute fire doors
Not sure if this mortice lock is right for your requirements?
If you are not sure if this mortice lock is right for your requirements please contact our friendly team today.
Specification
| Manufacturer | Union |
|---|---|
| Dimensions | 108 (H) x 77.5 (D) |
| Guarantee | 10 Year |
| Lock Type | Mortice Sashlock |
| Lock Operation | Oval Cylinder |
| Lock Backset | 57mm |
| Lock Centres | 48mm |
| Follower Size (mm) | 8 |
| Faceplate Width | 25.5mm |
| Environmental Suitability | All |
| Mechanism | Cylinder |
| Door Material Suitability | Wood |
| Forend Finish | Chrome |
