Union Strongbolt Euro Deadlock J21EUS Satin Stainless 76mm

Union Strongbolt Euro Deadlock J21EUS Satin Stainless 76mm

More Views

Union Strongbolt Euro Deadlock J21EUS Satin Stainless 76mm

Product ID: PAR-21EUS-SS-76-DL
£12.00 Excl. VAT £14.40 Incl. VAT £14.40 Incl. VAT £12.00 Excl. VAT
Price is for/per each

In Stock for immediate delivery

Unsure this is the product you need?
Give our experts a call on 0121 418 3415

Product Description

Union Strongbolt J21EUS Satin Stainless Steel 76mm Euro Profile Deadlock CE Marked

Application uses

  • For timber doors hinged on the left or right
  • Suitable for doors up to 54mm thick
  • For use with a euro profile cylinder
  • Suitable for use on 30 and 60 min fire doors

Features

  • Anti-saw security features for resistance against attack
  • Chamfered bolt design increases the performance of the lock under side load testing.
  • Radius inner forend for ease of installation
  • 14mm deadbolt for secure positive deadlocking
  • Can be installed in the many UK mortices without the need for additional carpentry or spoiling the edge of the door
  • Hardened steel pins provide resistance to attack from sawing

Operation

  • Deadbolt locked or unlocked by the cylinder key or turn from either side

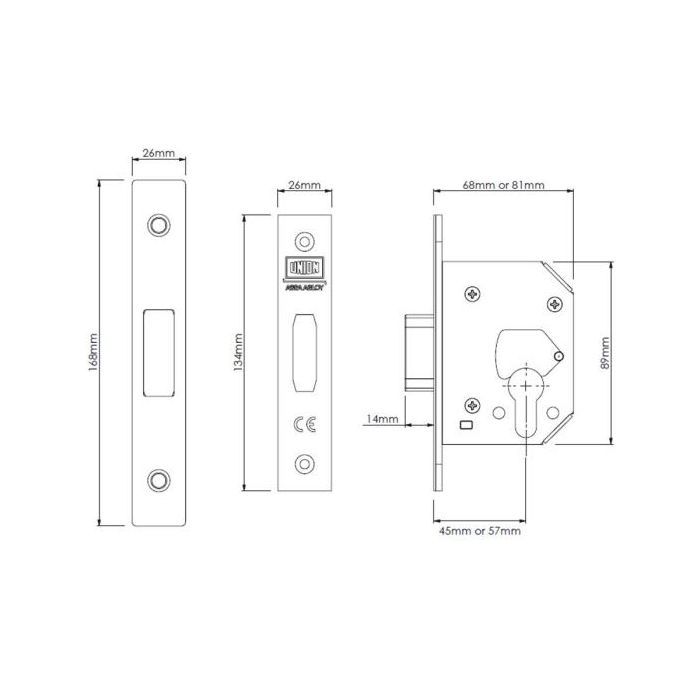

Sizes

  • Case Size: 81mm (3")
  • Backset: 57mm
  • Faceplate: 134mm x 26mm
  • Case height: 89mm

Finish

  • Case: Steel, red powder coat
  • Forend: Stainless steel
  • Striking Plate: Finished to match forend

Standards

  • Tested to BS EN 12209:2003
  • CE Marked
  • Certifire Approved



Not sure if this mortice lock is right for your requirements?

If you are not sure if this mortice lock is right for your requirements please contact our friendly team today.

Additional Union Strongbolt Euro Deadlock J21EUS Satin Stainless 76mm Information

Manufacturer Union
Finish Satin Stainless Steel
Guarantee 10 Year
Lock Type Mortice Deadlock
Lock Operation Euro Cylinder
Lock Backset 57mm
Lock Centres N/A
Follower Size (mm) N/A
Faceplate Width 26mm
Environmental Suitability All
Mechanism 1 Dead Bolt
Door Material Suitability Wood
Max Door Thickness (mm) 54
Forend Finish Stainless Steel

Documentation
