Union Strongbolt Euro Sashlock JL22EUS Brass 76mm

Union Strongbolt JL22EUS Polished Brass 76mm Euro Profile Sashlock CE Marked

Application uses

• For timber doors hinged on the left or right
• Suitable for doors up to 54mm thick
• For use with a euro profile cylinder
• Suitable for use on 30 and 60 min fire doors

Features

• Anti-saw security features for resistance against attack
• Chamfered bolt design increases the performance of the lock under side load testing.
• Radius inner forend for ease of installation
• 14mm deadbolt for secure positive deadlocking
• Can be installed in the many UK mortices without the need for additional carpentry or spoiling the edge of the door
• Hardened steel pins provide resistance to attack from sawing
• Easily reversible latch bolt

Operation

• Deadbolt locked or unlocked by the cylinder key or turn from either side

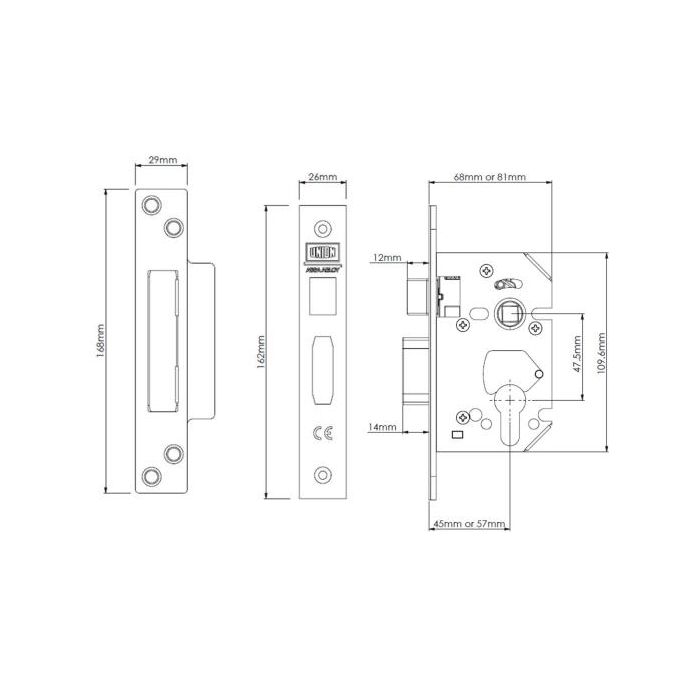

Sizes

• Case Size: 81mm (3")
• Backset: 57mm
• Faceplate: 162mm x 26mm
• Case height: 109mm

Finish

• Case: Steel, red powder coat
• Forend: Brass plated
• Striking Plate: Finished to match forend

Standards

• Tested to BS EN 12209:2003
• CE Marked
• Certifire Approved
