ERA-6345-2H-KIT

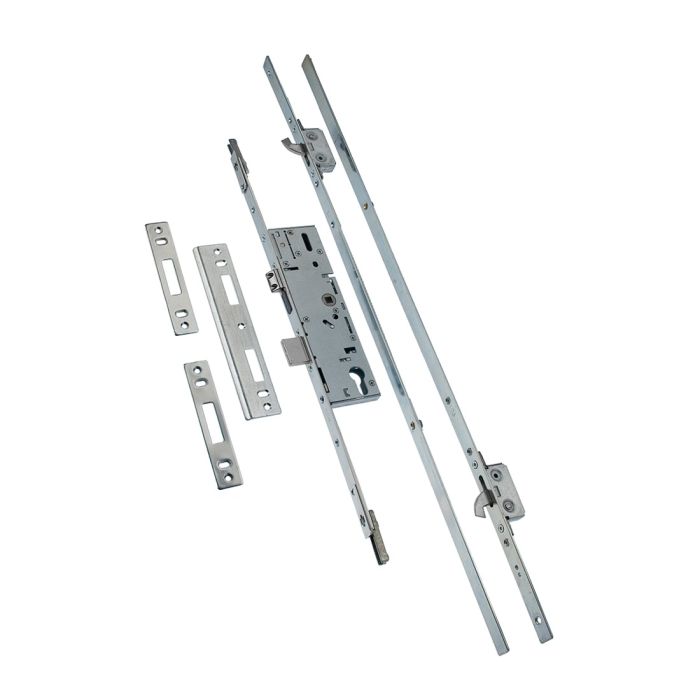

Era 45mm Replacement Door Lock Kit 2 Hook (6345)
Main image
Click to view image in fullscreen
![]()
20mm faceplate & 92mm PZ centres, complete lock kit
In stock
Order by tomorrow, for delivery on Monday (3rd Nov)
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£99.00
Incl. VAT
£82.50
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
See our full range:
Description
Era 45mm Replacement Door Lock Kit 2 Hook (6345)
Each kit is modular based, comprising of a 3 piece set: a central 45mm euro profile gearbox and two croppable top and bottom extension pieces to suit the door application. The extension pieces have high security steel hooks that lock into the steel keeps offering maximum resistance to forced entry; and the bi-directional throw of the hooks protects the door from being jemmied. The gearbox has an easily reversible latch bolt and the non handed design enables the lock to be used for left or right handed doors that are inward or outward opening. The snib facility enables the latch bolt to be held in the retracted position giving the option to travel freely through the door without depressing the handle. The lock also incorporates a split spindle function for Lever Pad handle applications.
Application Uses
Replacement 2 Hook Multi Point door lock designed to replace most multi-point locks in Composite and Timber doors.
Features
- Each kit is modular based, comprising of a 3 piece set
- Supplied with non-handed keep set to fit timer/composite doors
- Twin hi-security steel hooks for anti separation, protects the door from being jemmied
- Bi-directional throw of all locking feature for enhanced anti-lift
- Non handed lock with easily reversible latch bolt to minimise stock requirements
- Accepts standard 92mm unsprung handles or Vectis Plus adaptor / handle
- Split spindle function for Lever Pad handle application and snib facility as standard
- Kit is supplied with all fixings and illustrated instructions for installation
Sizes
- Backset: 45mm
- Centres: 92mm
- Faceplate: 20mm
- Length: Maximum 1987mm, Minimum: 1075mm
- Case Height: 220mm
- Case Depth: 63mm
- Distance between hooks - adjustable from 775mm to 1687mm
Standards
- Designed to meet the requirements of PAS 24:2012
- Meets the requirements of BS EN 1670 Grade 4 Corrosion Resistance (240 hours)
- Endurance tested in excess of 50,000 cycles
Maintenance
All moving parts should be lightly lubricated using a light non-acidic mineral oil (e.g. “3 in 1”) twice per year and the surface cleaned with a soft damp cloth. The product may need to be adjusted and fixings tightened to ensure a satisfactory operation.
Not sure if this Multipoint Lock is right for your requirements?
If you are not sure if this multipoint lock is right for your requirements please contact our friendly team today.
Specification
| Manufacturer | Era |
|---|---|
| Lock Type | Multipoint |
| Lock Operation | Euro Cylinder |
| Lock Backset | 45mm |
| Lock Centres | 92mm |
| Follower Size (mm) | 8 |
| Faceplate Width | 20mm |
| Environmental Suitability | Exterior |
| Mechanism | 1 Deadbolt, 2 Hooks |
| Door Material Suitability | Timber / Composite |
