ERA Vectis Centre Case 35mm Backset 95PZ Split Spindle Deadbolt
Main image
Click to view image in fullscreen
![]()

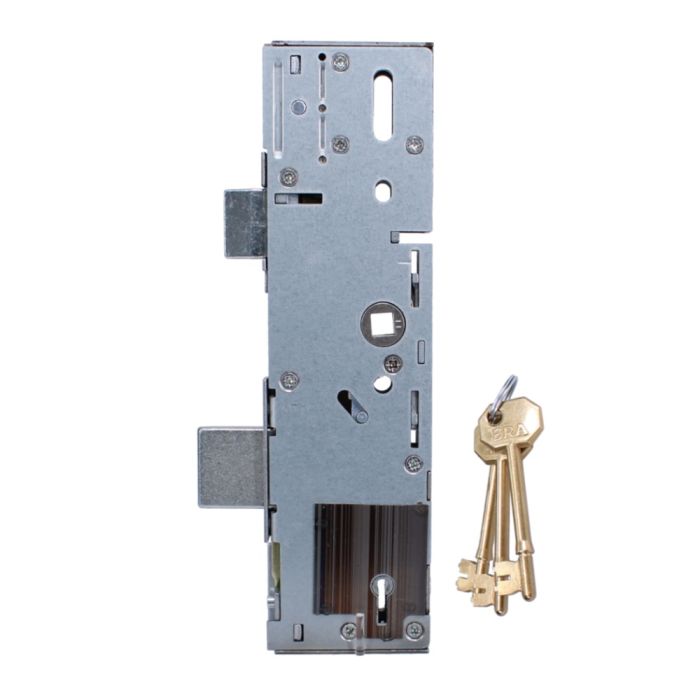

ERA Vectis latch & deadbolt replacement gearbox
In stock
Order by tomorrow, for delivery on Monday (3rd Nov)
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£34.13
Incl. VAT
£28.44
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
See our full range:
Description
ERA Vectis Centre Case 35mm Backset 95PZ Split Spindle Deadbolt
ERA's Vectis is the next generation of Cylinder free Multi-point Locking using traditional lever technology used in mortice locks
This genuine ERA Vectis replacement gearbox is ideal to repair your faulty multipoint if your existing centre case is failing.
Features
- Gearbox only
- Split spindle
- Suitable for left or right handed doors
- 3 mortice keys supplied
- Central brass deadbolt throws 22mm to prevent unauthorised entry
- Can be used with lever/lever or lever/pad handles
Specification
- Case Height - 220mm
- Case Width - 53mm
- Backset - 35mm
- Centres - 95mm
- Mechanism - 5 lever
- Spindle - Split spindle
Operation
Lift lever to engage locking mechanisms and then one full turn of the key to lock. One full turn of the key then push down on the lever to unlock.
Not sure if this replacement multipoint gearbox is right for your requirements?
If you are not sure if this replacement multipoint gearbox is right for your requirements please contact our friendly team today.
Specification
| Manufacturer | Era |
|---|---|
| Lock Type | Multipoint |
| Lock Operation | Lever |
| Lock Backset | 35mm |
| Lock Centres | 95mm |
| Follower Size (mm) | 8mm |
| Faceplate Width | N/A |
| Environmental Suitability | Exterior |
| Mechanism | Latch & Deadbolt |
| Door Material Suitability | UPVC |
