Exidor 322 Outside Access Device Silver Euro Cylinder

Application uses

The Exidor 322 with lever allows for the provision of secure access into a building from the outside without compromising the functionality of the escape hardware

Suitable for use with the Exidor 200 & 300 series bolts and latches.

The Exidor 322 offers access from the outside of the door

All the Exidor 200/300 series Outside Access Devices have been certified for use with the Exidor 200/300 range of bolts and latches. The use of any other OAD will invalidate the CE marking on these products.

Operation

• When unlocked the lever, spindle and mechanism engage allowing the shoots of the panic bolt or the bolt in the panic latch to be withdrawn from the outside
• The lever remains engaged until the mechanism is re-locked
• When the door is locked, the handle is fixed in the horizontal position - preventing access from outside the building



Features

• Lever is attached to the body by a shear pin. In the event of severe abuse, the shear pin will break protecting the mechanism. The shear pin can then be replaced
• Non-handed
• Fire rated for use on timber and steel doors
• Surface mounted on the outside of the door using concealed machine screws

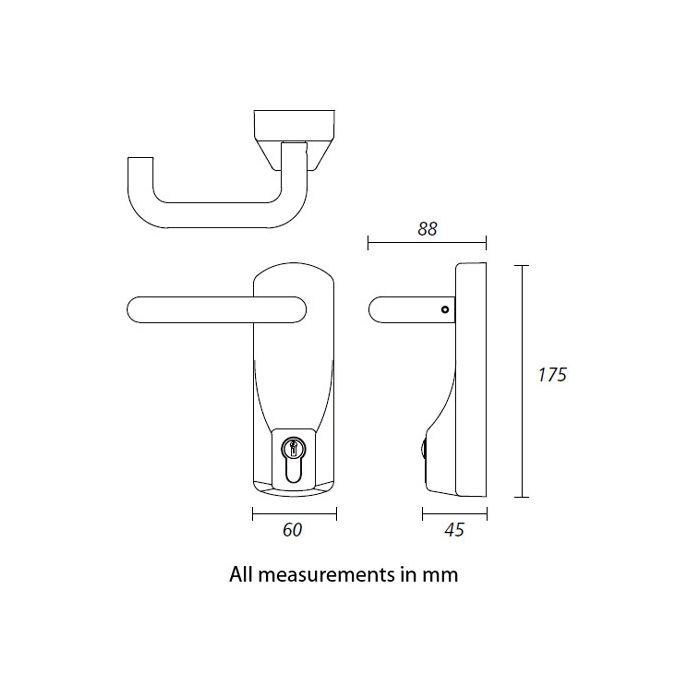

• Supplied as standard for doors up to 55mm thick
• Supplied with euro cylinder & 3 keys
• Manufactured in the UK



Standards

• CE Marked
• Certifire Tested
• Assists with DDA compliance and meets dimensional requirements of BSB300 and approved document M

Fixing / Installation

Installation instructions are supplied with all the Exidor panic and emergency exit hardware. Provided the instructions are followed and the units are fitted by a competent person, the Exidor range will offer a high degree of safety and security
