Fullex Auto Lock Slam Shut Multipoint Door Lock 45mm Backset
Main image
Click to view image in fullscreen
![]()
- Auto locking
- 3 Deadbolts
- 60 Minute Fire Rating
- Weather Resistant
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£90.00
Incl. VAT
£75.00
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
-
+
See our full range:
Description

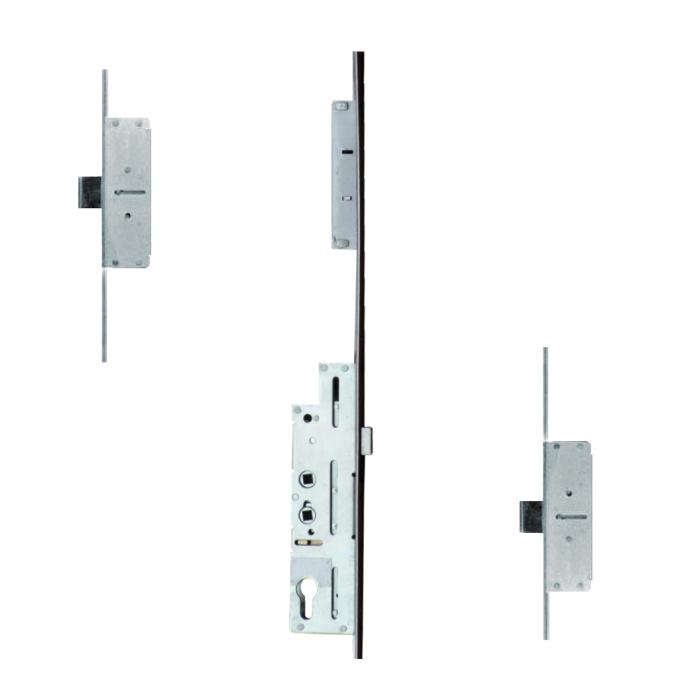

Fullex 45mm Auto Lock Slam Shut Multipoint Door Lock
This multipoint auto locking unit from Fullex is based on their popular Crimebeater lock, with an added slam shut feature. This model has an inbuilt actuator unit between the centre case and the top bolt which triggers the bolts when the door is shut (a single turn of the key then locks the door) to allow for reliable closing and fire safety.
For maximum security the fire door slam shut door lock Lock can be fitted with the Ultion 3 star TS007 diamond cylinder
Application uses
- Suitable for use on composite & timber single doors
- It is ideal for use on fire doors and has been tested for 60 minutes fire resistance
Features
- 3 Deadbolts
- Auto locking
- 60 minutes fire rated when combined with an intumescent kit
- Twin spindle
Specification
- Euro profile cylinder
- Zinc and clear passivated mild steel faceplate
- 45mm backset
- 92/62mm PZ lock centres
- 20mm radius faceplate
- 8mm spindle size
- Non handed
Dimensions
- Case Height - 225mm
- Case Width - 55mm
- Case Centres - 92/62mm
- Full Strip Length - 1720mm
- Locking Point Distance A - 686mm
- Locking Point Distance B - 714mm
Operation
Locking
- On closing the door, the latch is automatically engaged.
- Lift the handle up to engage the locking points.
- Lock the system by turning the key.
Unlocking
- Unlock the system by turning the key.
- Push the handle downwards to disengage the locking points.
- A further quarter turn of the key will retract the latch.
Standards
- 60 Minute Fire Rating when combined with an intumescent kit
- Complies To BS EN 1670 Grade 5
- Corrosion Resistance
- Cycle tested to 50,000 operations
- Meets the requirements of Secured by Design and can be used on a PAS24 compliant door set
Not sure if this Multipoint Lock is right for your requirements?
If you are not sure if this multipoint lock is right for your requirements please contact our friendly team today to discuss your requirements.
Specification
| Manufacturer | Fullex |
|---|---|
| Finish | Zinc |
| Guarantee | 10 Year |
| Lock Type | Multipoint |
| Lock Operation | Euro Cylinder |
| Lock Backset | 45mm |
| Lock Centres | 92 / 62mm |
| Follower Size (mm) | 8 |
| Faceplate Width | 20mm |
| Environmental Suitability | All |
| Mechanism | 1 Latch Bolt, 3 Dead Bolt |
| Door Material Suitability | Timber / Composite |
| Forend Finish | Zinc Plated |
