FUL-SL16-20-R-MUILT-

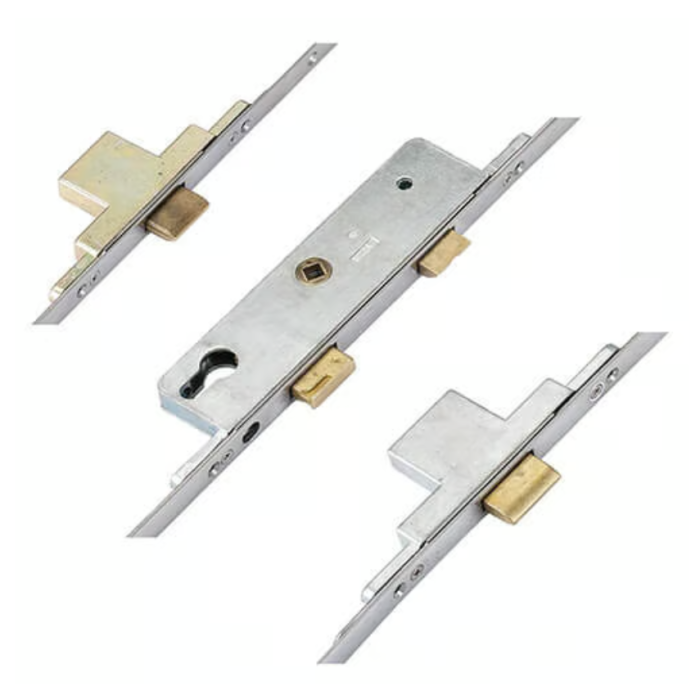

Fullex SL16 35mm 3 Deadbolt Split Spindle Multipoint Door Lock 20mm Faceplate
Main image
Click to view image in fullscreen
![]()
- Secured by Design
- BS EN 1670 Grade 5
- 3 Deadbolts
- Split spindle function
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£130.80
Incl. VAT
£109.00
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
-
+
See our full range:
Description
Fullex SL16 35mm 3 Deadbolt Multipoint Door Lock
The SL16 Multibolt has gained an enviable reputation in all markets for strength and reliability in many years of successful service. This version is a latch and deadbolt centre case with 2 additional bolt locking points.
For maximum security this multipoint door lock Lock can be fitted with the Ultion 3 star TS007 diamond cylinder
Application uses
- Suitable for use on composite & timber single doors
Features
- 3 Deadbolts
- Split spindle
Specification
- Euro profile cylinder
- Stainless steel faceplate
- 35mm backset
- 68mm PZ lock centres
- 20mm radius faceplate
- 8mm spindle size
- Non handed
Dimensions
- Case Height - 195mm
- Case Width - 50mm
- Case Centres - 68mm
- Full Strip Length - 1750mm
- Locking Point Distance A - 650mm
- Locking Point Distance B - 650mm
Operation
Locking
- Lift the handle upwards to engage the locking points.
- Lock the locking points and main deadbolt (if present) by turning the key.
Unlocking
- Unlock the system by turning the key.
- Push the handle downwards to disengage the locking points and retract the latch.
To enable the split spindle function the pin that surrounds the spindle hole must be broken by lifting the outside handle up at the same time as pushing the inside handle down. A noise will be heard which confirms the action, and with the spindles correctly set the latch will now only operate using the external key and by operating the internal handle.
Standards
- 304 stainless steel faceplate for high corrosion resistance
- Complies To BS EN 1670 Grade 5
- Cycle tested to 100,000 operations
- Meets the requirements of Secured by Design and can be used on a PAS24 compliant door set
Not sure if this Multipoint Lock is right for your requirements?
If you are not sure if this multipoint lock is right for your requirements please contact our friendly team today to discuss your requirements.
Specification
| Manufacturer | Fullex |
|---|---|
| Finish | Satin Stainless Steel |
| Guarantee | 10 Year |
| Lock Type | Multipoint |
| Lock Operation | Euro Cylinder |
| Lock Backset | 35mm |
| Lock Centres | 68mm |
| Follower Size (mm) | 8 |
| Faceplate Width | 20mm |
| Mechanism | 1 Latch Bolt, 3 Dead Bolt |
| Door Material Suitability | Timber / Composite |
| Forend Finish | Satin Stainless Steel |
