FUL-XL32R518SP-35

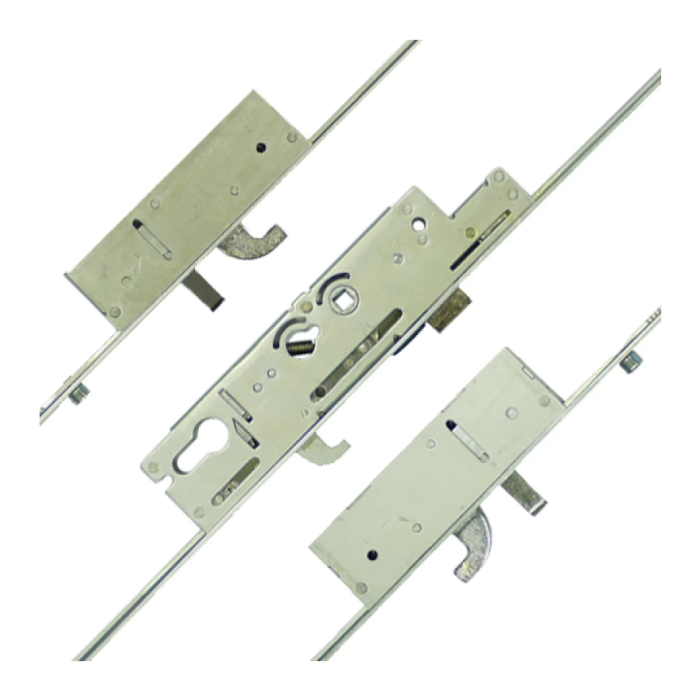

Fullex XL 35mm 3 Hook 2 Roller Single Spindle Multipoint Door Lock 92PZ Centres 16mm Faceplate
Main image
Click to view image in fullscreen
![]()
- Secured by Design
- BS EN 1670 Grade 4
- 3 Hook bolts
- Anti-lift bolts
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£70.51
Incl. VAT
£58.76
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
-
+
See our full range:
Description
Fullex XL 35mm 3 Hook Multipoint Door Lock
The XL was designed from the outset to offer maximum security and reliability. Sharing many features from the highly successful SL16 Crimebeater lock, XL adds a centre hook, two steel anti-lift bolts and two roller cams for compression and smooth operation.
For maximum security this multipoint door lock Lock can be fitted with the Ultion 3 star TS007 diamond cylinder
Application uses
- Suitable for use on composite & timber single doors
Features
- 3 Hooks
- 2 Rollers
- 2 Anti-lift bolts
- Single spindle
Specification
- Euro profile cylinder
- Stainless steel faceplate
- 35mm backset
- 92mm PZ lock centres
- 16mm faceplate
- 8mm spindle size
- Non handed
Dimensions
- Case Height - 228mm
- Case Width - 50mm
- Case Centres - 92mm
- Full Strip Length - 2200mm
- Top Hook to Spindle Distance - 518mm
- Bottom Hook to Spindle Distance - 518mm
- Top Roller to Spindle Distance - 585mm
- Bottom Roller to Spindle Distance - 615mm
Operation
Locking
- On closing the door, the latch is automatically engaged.
- Lift the handle up to engage the locking points.
- Lock the system by turning the key.
Unlocking
- Unlock the system by turning the key.
- Push the handle downwards to disengage the locking points.
- A further quarter turn of the key will retract the latch.
Standards
- Corrosion resistance
- Complies To BS EN 1670 Grade 4
- Cycle tested to 200,000 operations
- Meets the requirements of Secured by Design and can be used on a PAS24 compliant door set
Not sure if this Multipoint Lock is right for your requirements?
If you are not sure if this multipoint lock is right for your requirements please contact our friendly team today to discuss your requirements.
Specification
| Manufacturer | Fullex |
|---|---|
| Finish | Satin Stainless Steel |
| Guarantee | 10 Year |
| Lock Type | Multipoint |
| Lock Operation | Euro Cylinder |
| Lock Backset | 35mm |
| Lock Centres | 92mm |
| Follower Size (mm) | 8 |
| Faceplate Width | 16mm |
| Mechanism | 1 Latch Bolt, 3 Hook Bolt, 2 Rollers. 2 Anti-lift bolts |
| Door Material Suitability | Timber / Composite |
| Forend Finish | Satin Stainless Steel |
