Description

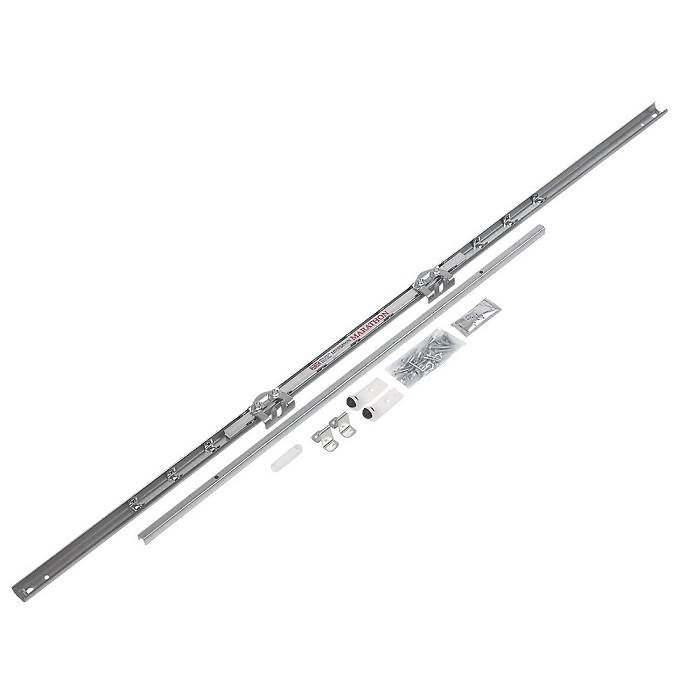

Henderson Marathon Sliding Door Gear Set S2
Managing the movement of internal partition doors or heavy residential sliders requires reliable hardware that maintains its performance over thousands of cycles. The Henderson Marathon S2 gear set represents a tried and tested solution for professionals who need a dependable mechanism capable of supporting doors weighing up to 90kg without sacrificing ease of movement. This kit addresses the common frustration of door drift or track binding by providing a precision-engineered system that keeps heavy wooden or composite doors perfectly aligned within their frame throughout every operational cycle.
Construction quality defines the Marathon series because every component is manufactured to survive the rigours of high-traffic environments where users expect a premium feel. The solid alloy runner bar serves as the foundation for the entire assembly, offering an anchor point that resists warping or bending under stress. By choosing this hardware for your project, you gain the benefit of an established design that balances high-load capacity with smooth, quiet operation in both domestic homes and light commercial settings like offices or retail storage areas.
Why Choose the Henderson Marathon Sliding Door Gear Set S2
Choose this hardware for its proven track record in providing long-term reliability for heavy internal doors.
One Piece Ball Cage Design
The single unit cage keeps bearings perfectly spaced to ensure the carriage travels across the track without catching. This design prevents the friction build-up that often plagues cheaper alternatives, so your door slides with minimal effort. It simplifies the internal mechanics by reducing the number of individual parts that could potentially fail or misalign during regular usage.
Universal Material Compatibility
Whether your project involves traditional solid timber doors, wood-framed panels, or modern composite materials, this kit provides a stable mounting surface. The hardware accommodates various door thicknesses between 32mm and 50mm, which means you have the flexibility to select door styles that suit your architectural design rather than being limited by the constraints of your sliding track gear.
Simple Vertical Adjustments
Fine-tuning the height of a door is often the most time-consuming part of the installation process. The Marathon system allows for quick vertical adjustments, so you can correct for any floor variations or settling over time without needing to dismantle the track assembly. This adjustability saves hours of labour when you are hanging multiple doors across a site.
Engineering Quality and Daily Performance
Precision components work in harmony to support heavy loads while maintaining a glide that feels smooth to the touch.
Load Distribution Mechanics
The engineering focus centres on how the weight transfers from the door panels through the hangers and into the alloy track. Because the system uses a one-piece cage, the load distributes evenly across the entire surface area of the rollers. This prevents the high-pressure points that cause track wear, which means the door retains its smooth travel even after years of daily use in a busy family home or a professional workspace.
Structural integrity is maintained through a combination of high-grade alloy and reinforced nylon parts. The hangers attach securely to the top of your door, locking into the track with a tight tolerance that eliminates lateral wobble. When you operate the door, you will notice the absence of the rattling sound often associated with lighter systems, as every piece of the Marathon set fits with an exacting standard of engineering precision.
Durability of the Hardware Finish
The materials chosen for this kit are selected for their resistance to environmental changes and standard wear. The runner bar is treated to resist surface corrosion, keeping the internal track surface clean and free from the debris that could otherwise impede the movement of the wheels. This allows the system to remain functional in environments where humidity levels might fluctuate, such as kitchens or near building entrances.
Maintenance requirements stay low because the nylon components are naturally self-lubricating. They provide a silent operation profile that is ideal for bedroom or study doors where noise reduction is a priority. By using materials that do not require frequent greasing, you avoid the common issue of dirt and dust clumping in the track, which keeps the hardware running effectively for the life of the building.
Installation and Operational Workflow
Follow these clear steps to achieve a perfectly hung sliding door with the correct operational clearance.

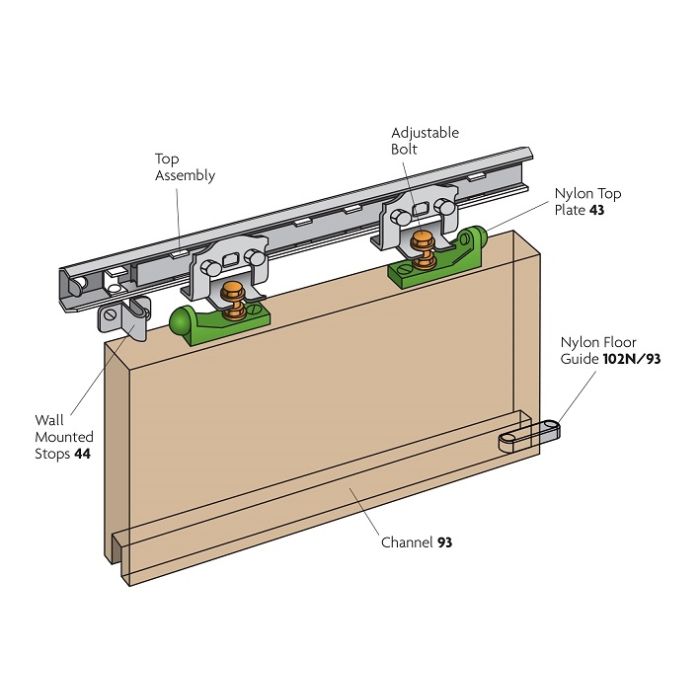

Secure the Top Track
Begin by fixing the solid alloy runner bar to your header or wall beam using the appropriate screws for your substrate. Ensure the track is perfectly level across its entire length, as even a minor deviation can cause the door to swing or roll unintentionally. Use a spirit level to verify this alignment before you fully tighten the final fixings in place.
Mount Hangers and Plates
Attach the nylon top plates securely to the top edge of your door panel according to the recommended spacing for your specific door width. These plates engage directly with the top assembly hangers, which you should pre-install into the track. Check that the door sits square to the frame so that the movement remains consistent across the full opening path.
Align the Floor Guide
Install the nylon floor guide channel at the base of the door to keep the panel tracking straight as you slide it open or closed. The guide should fit into the groove at the bottom of the door, or be adjusted so the door panels sit snugly between the guide teeth. This final step prevents the door from swinging outwards, protecting both the door edge and your wall surfaces.
Expert Installation and Care Tip
When you finish the installation, double-check that your wall-mounted stops are firmly secured to prevent the door carriage from over-travelling. Occasionally clean the track with a dry, lint-free cloth to remove any accumulated dust particles so the nylon wheels continue to run without any resistance for many years.

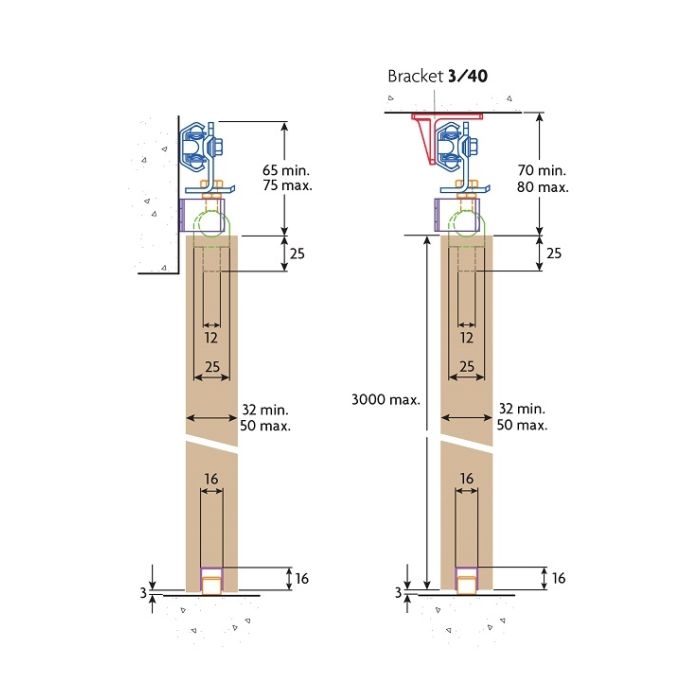

Technical Specifications
| Feature | Rating / Standard | Practical Details |
|---|---|---|
| Max Load | 90kg | Suitable for heavy internal doors including solid timber and composite variants. |
| Track Material | Solid Alloy | Provides a stable, durable surface that resists bending under heavy door weights. |
| Bearing Design | One-piece ball cage | Ensures smooth travel by keeping rollers spaced correctly during movement. |
| Door Thickness | 32mm to 50mm | Covers standard industry door sizes for residential and light commercial use. |
Longevity and Trade Reliability
The Henderson Marathon system is a benchmark in the industry because it avoids unnecessary complications while prioritising the structural strength of every component. You are investing in a product that eliminates the need for repeated call-backs or replacement parts because the hardware is built to endure high frequency use in demanding residential settings.
Compatibility and Fitting Notes
Specification
| Manufacturer | Henderson |
|---|---|
| Guarantee | 12 months |
| Track Location | Top Hung |
| Track Fixing | Face Fixed |
| Maximum Door Weight (kg) | 90 |
| Tracks | 1 |
| Type | Sliding |
| Sub-Type | Straight |
| Leaf Capacity | 1 |
| Maximum Leaf Width (mm) | 750 |
| Maximum Leaf Height (mm) | 3000 |
| Minimum Leaf Thickness (mm) | 32 |
| Maximum Leaf Thickness (mm) | 50 |
