PCH790035
Henderson Zenith Sliding Glass Door Gear Set Z15
Main image
Click to view image in fullscreen
![]()
Henderson set z15/2 Zenith sliding glass door gear with fittings for 2 doors
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£139.86
Incl. VAT
£116.55
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
-
+
See our full range:
Description
Henderson Zenith Sliding Glass Door Gear Set Z15
Achieving a professional finish for your display cabinets requires reliable hardware that stands the test of time. The Henderson Zenith Sliding Glass Door Gear Set Z15 provides a seamless solution for showcase units, bookcases, and high-end retail display panels. This kit is engineered to support glass doors weighing up to 25kg, ensuring that your storage solutions remain functional and elegant for years to come.
Precision is at the heart of this hardware design. By utilising high-grade aluminium with a sleek satin finish, the system offers an aesthetic that complements modern office environments, retail shops, and domestic living spaces. It is designed for those who prioritise both visual appeal and smooth mechanical performance.
Enhanced Mechanical Performance and Structural Integrity
When selecting sliding gear, you must consider the physics of weight distribution and friction. This specific model utilises high-quality bottom rollers that distribute the 25kg load evenly across the rail system. This prevents the glass from putting undue stress on a single point of failure. The inclusion of brush pile strips serves a dual purpose. They reduce the friction coefficient during movement, allowing for a whisper-quiet glide that feels premium to every user. Furthermore, they act as a dust barrier, protecting the internal contents of your cabinet from unwanted particles.
The structural rigidity of the aluminium tracks is vital for preventing component flex. Under the weight of a 6mm glass panel, lower-quality tracks often bow, leading to binding or jumping off the runner. The Z15 system remains perfectly straight throughout its operational life. This resistance to deformation ensures that the alignment remains true, preventing the glass edges from clashing or chipping during rapid opening and closing cycles.
Operational Workflow for Smooth Interaction

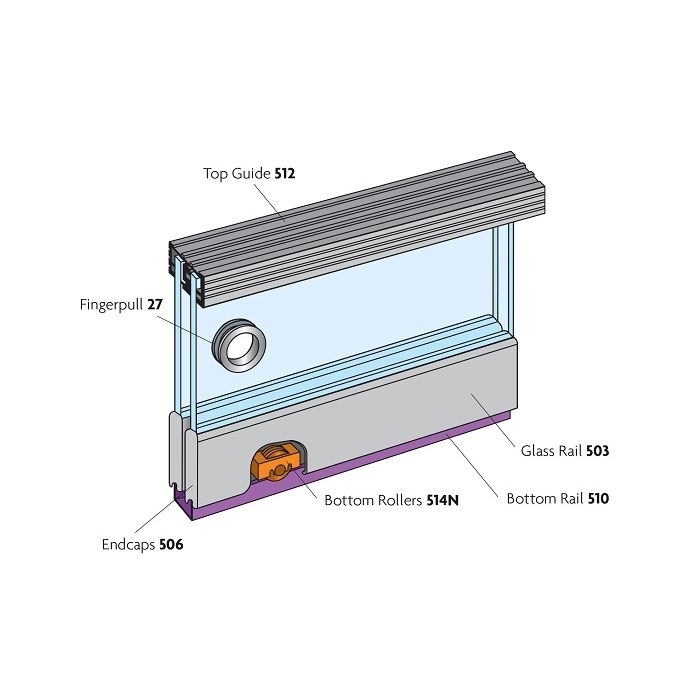

Operating a display case should feel intuitive and effortless. The mechanical design of this gear set allows the user to engage with the glass door using minimal force. As the user applies pressure to the edge, the bottom rollers translate that kinetic energy into lateral motion along the guide channel. The top guide channel serves as a secondary stabilizer, preventing the door from tilting out of its vertical plane during the sliding sequence. This creates a balanced, controlled movement that is consistent every time you slide the door open to retrieve an item or close it to secure your inventory.
Commercial ROI and Long Term Value
Investing in quality hardware is a strategic business decision. Frequent maintenance cycles or the replacement of broken sliding mechanisms represent a hidden cost that impacts your bottom line. By selecting this durable kit, you eliminate the recurring need for repairs associated with cheaper, non-branded alternatives. The robust construction of the rollers and channels ensures that the system handles the high traffic typical of a commercial showroom environment without losing its smooth action.
Beyond the cost of parts, consider the preservation of your stock. A glass cabinet with a failing door is a security liability and a potential safety hazard. Ensuring that your doors slide correctly protects the goods inside from accidental damage caused by sticking or misaligned panels. Over the lifecycle of a cabinet, this hardware pays for itself by reducing operational overheads and administrative time spent on maintenance issues.
Ergonomic Health and Operational Compliance
Ergonomics play a crucial role in daily operations within a workspace. Repetitive strain or frustration caused by heavy, sticking drawers can lead to user fatigue and reduced efficiency. Because the Z15 system glides with minimal resistance, the physical effort required by staff to interact with display cases is significantly reduced. This is a critical factor for compliance in workplaces that require accessible design standards. Safety is also enhanced, as the smooth motion prevents the sudden jarring or sticking that often leads to shattered glass or pinched fingers.
If you are not sure if this sliding gear set is right for your requirements please contact our friendly team today to discuss your requirements.

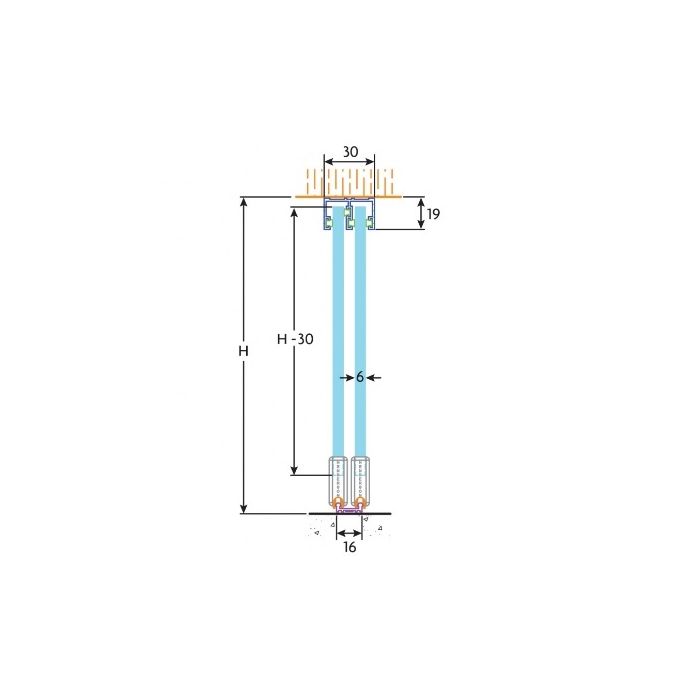

Technical Specifications
To ensure this system fits your specific joinery project, please review the technical parameters outlined in the table below. These measurements are designed to help you plan your installation with accuracy.
| Feature | Specification |
|---|---|
| Maximum Door Weight | 25kg per door |
| Maximum Opening Width | 1500mm |
| Maximum Door Width | 916mm |
| Recommended Glass Thickness | 6mm |
| Finish | Satin Aluminium |

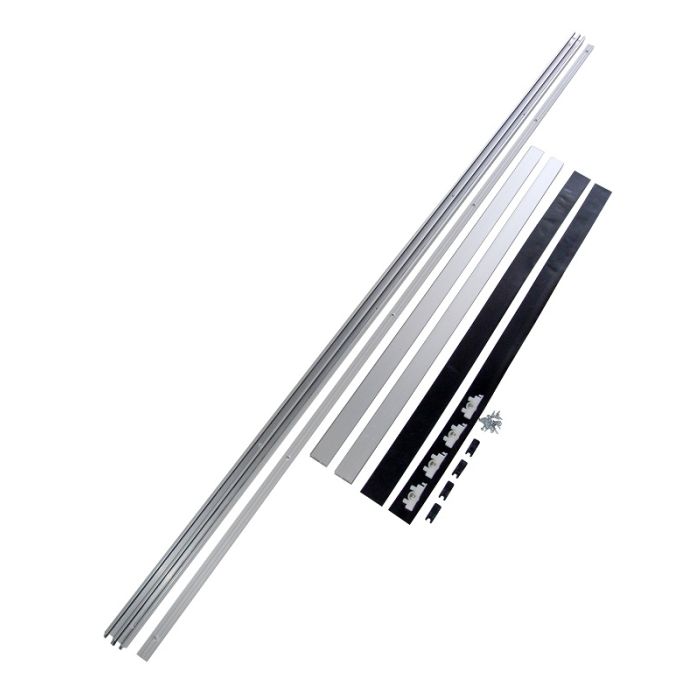

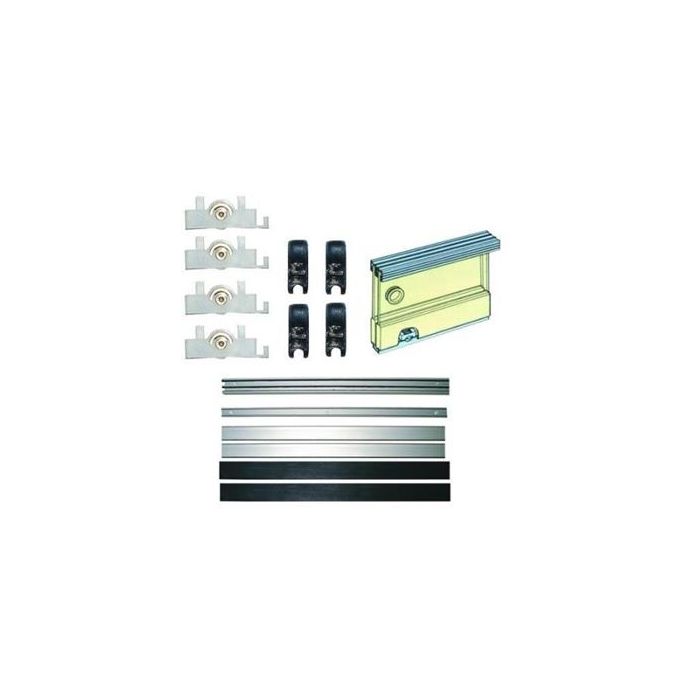

| Included Components | 1 Top Guide, 2 Rails, 4 Rollers, 4 Endcaps, 1 Bottom Rail, 2 Glazing Strips |
Installation Tips for Optimal Performance
Achieving the best results with the Henderson Zenith system starts with a clean and level surface. The following steps will ensure your installation remains durable and functional.
- Ensure that your cabinet frame is perfectly square before mounting the top and bottom rails.
- Use the provided glazing strips to cushion the glass within the rails, which helps to dampen vibrations and prevents direct metal to glass contact.
- Verify that the bottom rollers are correctly seated within the track to allow for uniform weight distribution across the entire length of the rail.
- Tighten all fixings according to the load specifications to prevent any movement in the guide channels over time.
- Clean the track of any debris or sawdust after installation to ensure the rollers maintain a smooth path for years of use.
Why Choose This System for Your Display Needs
Whether you are building a custom bookcase for a client or updating a retail shopfront, this model offers a balance of simplicity and professional-grade durability. It removes the guesswork from cabinet design by providing a complete set of matching components. You do not need to hunt for compatible rollers or rails separately, as everything is included in the package. The aesthetic finish ensures that the hardware remains unobtrusive, keeping the focus squarely on the items you are displaying inside the case. With a design pedigree rooted in reliability, this gear set represents the standard for sliding glass door hardware in the modern UK marketplace.
If you have specific questions about fitting this kit into a unique cabinet size, our technical team is available to provide guidance. We understand the challenges of bespoke joinery and are happy to assist you in selecting the right components for your specific opening. Do not settle for hardware that compromises the quality of your finished project. Choose industry-trusted parts that deliver a smooth, reliable, and professional result every single time you open your glass doors.
Specification
| Manufacturer | Henderson |
|---|---|
| Guarantee | 12 months |
| Track Location | Bottom Roller |
| Track Fixing | Soffit Fixed |
| Maximum Door Weight (kg) | 25 |
| Tracks | 2 |
| Type | Sliding |
| Sub-Type | Straight |
| Leaf Capacity | 2 |
| Maximum Leaf Width (mm) | 750 |
| Maximum Leaf Height (mm) | 1000 |
| Minimum Leaf Thickness (mm) | 6 |
| Maximum Leaf Thickness (mm) | 6 |
