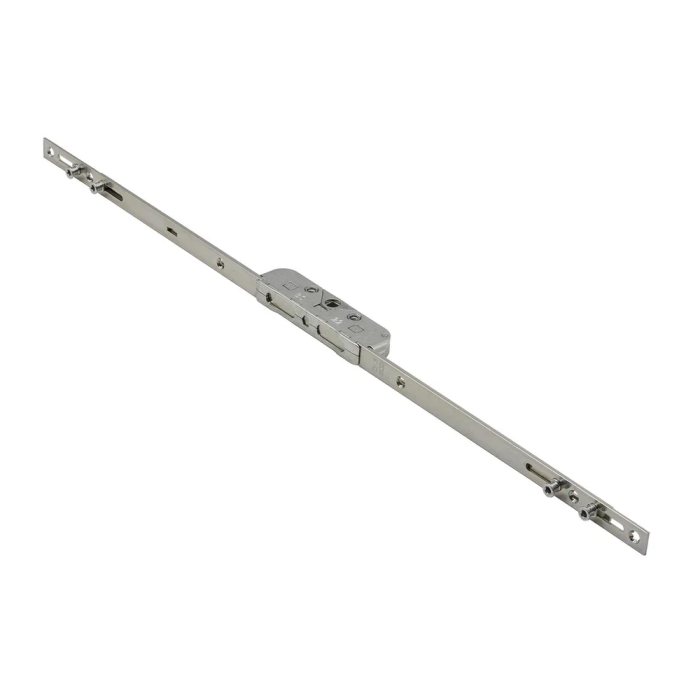

MACO 22mm R.A.I.L Inline 600mm Espagnolette Window Lock (GR3) MA202701
Main image
Click to view image in fullscreen
![]()
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£13.56
Incl. VAT
£11.30
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
-
+
See our full range:
Description
MACO 22mm R.A.I.L Inline 600mm Espagnolette Window Lock (GR3) MA202701
The MACO 22mm R.A.I.L Inline 600mm Espagnolette Window Lock (GR3) MA202701 is a high-quality multipoint locking mechanism designed for use with compatible uPVC and suitable window systems. Manufactured by MACO, a leading name in window and door hardware, this espagnolette lock forms part of the R.A.I.L range and provides reliable, smooth and secure locking across the window.
With a 600mm overall length and 22mm faceplate, this inline espagnolette lock is designed to provide a practical replacement or installation solution where a compatible MACO R.A.I.L mechanism is required. The GR3 configuration makes it suitable for applications requiring the corresponding MACO specification and locking arrangement.
Key Features & Benefits
-
Genuine MACO R.A.I.L window locking mechanism
-
600mm length for applications requiring a longer espagnolette mechanism
-
22mm faceplate width
-
Inline configuration for compatible window systems
-
GR3 specification
-
Designed for use with compatible uPVC and suitable window profiles
-
Provides multiple locking points along the window
-
Helps deliver consistent and dependable window security
-
Manufactured by MACO to provide reliable performance
-
Suitable for replacement, repair and new installation applications
-
Ideal for professional window installers, repairers and maintenance teams
MACO R.A.I.L Espagnolette Locking System
The MACO R.A.I.L range is designed to provide dependable locking functionality for modern window applications. An espagnolette mechanism operates through a central gearbox and connecting locking components, allowing the locking action to be distributed along the window.
This 600mm inline version provides locking coverage along the window sash while maintaining a relatively straightforward mechanism design. When operated through a compatible window handle, the mechanism moves the locking components into position, helping secure the sash firmly against the frame.
The inline arrangement makes this mechanism particularly useful when replacing an existing compatible lock where the original hardware needs to be matched for dimensions and configuration.
22mm Faceplate
The 22mm faceplate is an important measurement when selecting a replacement espagnolette window lock. The faceplate sits along the edge of the window sash and houses the operating mechanism and locking components.
Before purchasing, it is recommended that the existing window mechanism is carefully measured to ensure the 22mm faceplate width, overall length, locking configuration and other critical dimensions are compatible with the existing installation.
600mm Length
With an overall length of 600mm, the MACO MA202701 is intended for window applications where this particular mechanism length is required.
Selecting the correct length is essential when replacing an existing espagnolette mechanism. A mechanism that is too short or too long may not provide the correct locking coverage or align correctly with the existing keeps.
For replacement applications, always compare the dimensions and configuration of the existing mechanism with the MACO MA202701 before ordering.
GR3 Configuration
This model is specified as GR3, identifying the particular configuration of the MACO R.A.I.L locking mechanism.
The GR3 specification should be matched against the existing mechanism when selecting a replacement. MACO espagnolette mechanisms are available in different configurations and sizes, so checking the relevant measurements and mechanism arrangement is recommended to ensure the correct product is selected.
Ideal for Replacement & Repair Work
The MACO R.A.I.L Inline 600mm Espagnolette Window Lock is a practical choice for professional window repair and maintenance applications.
It can be used where an existing compatible espagnolette mechanism has become worn, damaged or requires replacement due to age. Replacing the mechanism can help restore the correct operation of the window's locking system without necessarily requiring the complete window hardware assembly to be replaced.
It is also suitable for use by window manufacturers, installers, maintenance contractors, joiners and experienced DIY users working with compatible window systems.
Smooth & Reliable Operation
A properly fitted espagnolette mechanism allows the window handle to operate the locking system efficiently, engaging and disengaging the locking points as the handle is turned.
The MACO R.A.I.L design provides a robust mechanism intended for repeated everyday operation. Correct installation and adjustment are important to ensure the locking points align correctly with the corresponding keeps and that the handle operates smoothly without excessive resistance.
If replacing an existing mechanism, the window should be checked for correct alignment and the locking points should be adjusted where necessary following installation.
Suitable Applications
The MACO MA202701 600mm R.A.I.L Inline Espagnolette Window Lock is suitable for compatible window applications including:
-
uPVC window repairs
-
Replacement window locking mechanisms
-
Window refurbishment projects
-
Maintenance and repair work
-
Property maintenance
-
Replacement of worn or damaged espagnolette locks
-
New installations using compatible MACO R.A.I.L hardware
Important Compatibility Information
Espagnolette window locks are available in a wide range of sizes, configurations and specifications. Do not select a replacement mechanism based on length alone.
Before ordering the MACO MA202701, check the existing mechanism carefully, including:
-
Faceplate width
-
Overall mechanism length
-
Locking configuration
-
Handle/gearbox arrangement
-
Backset and relevant gearbox dimensions
-
Locking-point positions
-
End and central locking arrangements
-
Compatibility with the existing window profile and keeps
Matching these measurements is particularly important when replacing an existing mechanism, as visually similar espagnolette locks can have different dimensions or locking arrangements.
Why Choose MACO?
MACO is an established manufacturer of window and door hardware, producing a wide range of components for professional window and door applications. The R.A.I.L range is designed around practical window locking requirements, providing installers and repair professionals with dependable replacement hardware for compatible systems.
Choosing a genuine MACO mechanism can also make it easier to match an existing MACO installation where the original locking system needs to be replaced.
Product Summary
The MACO 22mm R.A.I.L Inline 600mm Espagnolette Window Lock (GR3) MA202701 is a robust and reliable window locking mechanism designed for compatible window systems. Featuring a 22mm faceplate, 600mm length, inline configuration and GR3 specification, it provides a dependable solution for window replacement, repair and maintenance applications.
For the best results, ensure the dimensions and configuration of the existing window lock are checked carefully before ordering to confirm compatibility.
Product Details
| Specification | Details |
|---|---|
| Brand | MACO |
| Range | R.A.I.L |
| Product Type | Espagnolette Window Lock |
| Configuration | Inline |
| Faceplate Width | 22mm |
| Length | 600mm |
| Grade / Configuration | GR3 |
| Part Number | MA202701 |
| Application | Compatible window systems |
| Use | Replacement, repair and new installation |
At a Glance
Genuine MACO R.A.I.L hardware | 22mm faceplate | 600mm length | Inline configuration | GR3 | Suitable for compatible window systems | Ideal for replacement and repair
Specification
| Manufacturer | Maco |
|---|---|
| Guarantee | 10 Year Mechanical |
| Forend Finish | Silverlook-Evo |
| Window Material Suitability | UPVC / Wood / Metal |
| Window Operation | Hinged |
| Handle Compatibility | 43mm fixing centres, 7mm square spindle |
| Faceplate Width | 16mm |
| Lock Backset | 22mm |
| Espag Length | 600mm |
| Roller Height | 7.7mm |
| Espag Locking Points | 4 |
| Gear Type | Centre |
| Security Standards | PAS 24 Compliant |
