Description
Restore Full Security and Weatherproofing with the Mila Compatible Door Lock
A malfunctioning multipoint lock on an entrance door is both a security hazard and an everyday frustration. When your existing mechanism jams, slips, or drops out of alignment, the door sash fails to pull tightly into the outer frame. This leads to cold draughts, heat loss, and persistent difficulty when lifting the lever handle. Finding a precise replacement for an older mechanism can feel daunting, particularly when door profiles have settled over years of continuous domestic use.

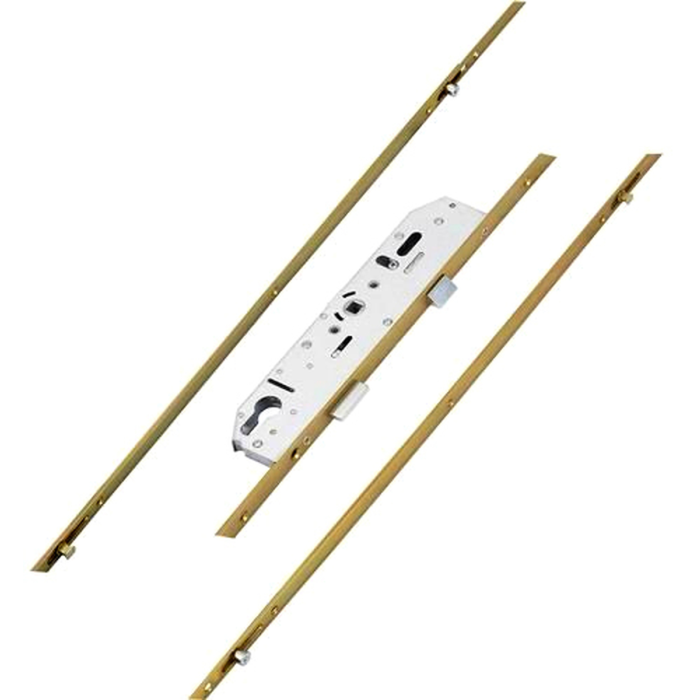

The Mila Compatible 2 Roller 2 Mushroom 35mm Backset Multipoint Door Lock solves these operational challenges by offering an accurate retrofit solution for existing Mila installations. Engineered with a balanced combination of dual rollers, dual mushroom cams, a central deadbolt, and a fully reversible latch bolt, this mechanism restores smooth mechanical travel and robust multi-point locking. It eliminates the need for expensive full door replacements by sliding directly into your current door channel with minimal joinery modification.
Whether you are a tradesperson carrying out urgent repair work or a property owner tackling maintenance, this lock brings back smooth handle operation, tight compression against external weather, and reassuring physical defence against forced entry.
Engineered for Everyday Reliability and Security
Dual Compression Rollers
The two outer rollers are spaced 1638mm apart to guide the door leaf squarely into the rebate. As the handle is lifted, the cylindrical rollers slide effortlessly into the frame keeps, drawing the door blade uniformly against the rubber gaskets. This consistent compression prevents wind-driven rain penetration, eliminates draughts, and reduces ambient road noise.
Interlocking Mushroom Cams
Positioned with a 595mm distance between the inner cams, the mushroom-headed bolts provide essential anti-separation security. Once engaged inside their matching keeps, the wide mushroom flanges hook securely into place. This prevents opportunistic intruders from levering the door sash away from the frame with a crowbar or flathead screwdriver.
Central Deadbolt Protection
At the heart of the gearbox sits a heavy-duty central deadbolt. Extending securely into the main keep upon a full turn of the euro profile cylinder key, this bolt delivers rigid central resistance against direct kick-in attacks and physical shoulder barges, anchoring the middle of the door leaf firmly against the jamb.
Fully Reversible Latch Bolt
Universal handing ensures this mechanism can be installed on either left-hand or right-hand inward-opening or outward-opening doors. The central latch bolt can be quickly reversed on site without dismantling the main gearbox casing, saving valuable time during urgent repair visits.
Step-by-Step Retrofit Installation Guide
Stage 1: Safe Removal of the Old Mechanism
Prop the door open securely and unscrew the door handles and euro profile cylinder. Remove all retaining screws along the length of the existing faceplate. Carefully lever the worn lock out from the eurogroove channel, taking care not to chip or bend the decorative uPVC or timber profile edges.
Stage 2: Critical Dimensional Verification
Lay the old unit alongside your new Mila compatible lock on a flat workbench. Confirm that your backset measures exactly 35mm from the front of the faceplate to the centre of the key cylinder hole, and verify that the handle spindle centre to cylinder centre measures 92mm.
Stage 3: Latch Handing Adjustment
Check the bevelled angle of the central latch bolt against the closing direction of your door rebate. If the bevel faces the wrong way, depress the small latch release catch on the side of the main gearbox, rotate the latch bolt 180 degrees, and let it click firmly back into its home position.
Stage 4: Fitting and Mechanical Alignment
Slide the new strip into the door groove and fix it into place using suitable wood or self-tapping screws. Reinstall the cylinder barrel and handles, then test the handle throw with the door held wide open. Ensure the deadbolt, rollers, and mushrooms extend smoothly before closing the door against the frame keeps.
Technical Specifications
| Specification | Rating or Standard | Practical Details |
|---|---|---|
| Backset Depth | 35mm | Standard depth suited to narrow to medium profile uPVC and composite doors. |
| PZ Centres | 92mm | Industry standard measurement between spindle centre and cylinder centre. |
| Inner Mushroom Cam Spacing | 595mm Distance | Centred placement providing anti-jemmy grip near the primary locking point. |
| Outer Compression Roller Spacing | 1638mm Distance | Wide span creating maximum top and bottom weather seal compression. |
| Central Locking Features | 1 Deadbolt and 1 Latch | Reversible latch bolt allows quick configuration for left or right handed doors. |
| Operation Style | Lever / Lever Operation | Lift handle to engage all 4 peripheral cams and deadbolt, key to lock deadbolt. |
Expert Advice from the Doorfit Hardware Team
Before ordering any replacement multipoint strip, always double check your existing frame keeps. While this Mila compatible strip matches original factory tolerances, older door frames can drop slightly over time. If the handle feels unusually stiff when lifting, avoid forcing it. Adjust the eccentric cam collars using an allen key or loosen the strike plate screws to fine tune the alignment. A properly set door should close quietly and lift without heavy physical resistance.
We also recommend applying a light silicone spray or dedicated dry lubricant to all moving slide bars and cams once or twice a year. Avoid thick grease or sticky oils, as these attract grit and road dust that can prematurely wear down the internal gearing.
Need Help Finding the Right Replacement Lock?
Multipoint door locks come in dozens of variations. If you are unsure whether this 35mm backset unit matches your existing door setup, our experienced technical team at Doorfit is ready to help you identify the correct match.
Contact Our TeamSpecification
| Manufacturer | Mila |
|---|---|
| Lock Type | Multipoint |
| Lock Operation | Euro Cylinder |
| Lock Backset | 35mm |
| Lock Centres | 92mm |
| Follower Size (mm) | 8 |
| Faceplate Width | 16mm |
| Environmental Suitability | Exterior |
| Mechanism | 2 Roller, 2 Mushroom, 1 Deadbolt |
| Door Material Suitability | UPVC |
| Forend Finish | Stainless Steel |
