RAV-RP60-BDS-SEAL

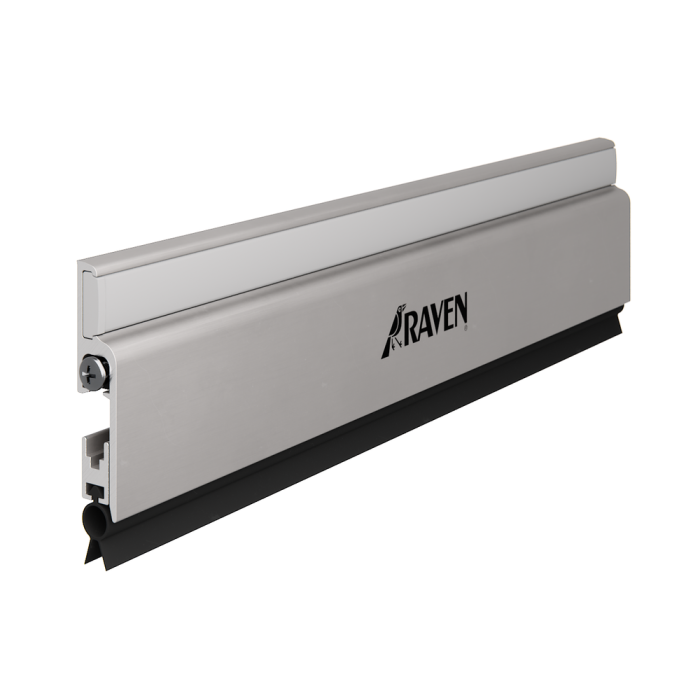

Raven RP60si Face Fix Automatic Acoustic Drop Seal 450mm to 920mm
Main image
Click to view image in fullscreen
![]()
- Fire tested - For 30 minutes
- Can be trimmed down to 450mm
- Maximum drop of 15mm
- Surface mounted screw fix
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£22.20
Incl. VAT
£18.50
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
-
+
-
Buy 6 +save 5%
-
Buy 12 +save 10%
-
Buy 18 +save 15%
Description
Raven RP60si Face Fix Automatic Acoustic Drop Seal 450mm to 920mm
The Raven RP60si Face Fix Automatic Acoustic Drop Seal is a high-performance, surface-mounted door bottom seal designed to minimise sound transmission, reduce draughts, and create an effective seal beneath timber doors. Featuring an automatic drop mechanism, the seal lowers only when the door is closed and lifts clear of the floor when opened, ensuring smooth operation without dragging or causing unnecessary wear.
Manufactured from robust anodised aluminium with a durable TPE sealing gasket, the RP60si offers long-lasting performance in commercial, residential, healthcare, education and office environments where improved acoustic performance and environmental sealing are required. Its face-fixed design makes installation quick and straightforward, making it an excellent solution for both new installations and retrofit projects.
Available in 920mm lengths , the seal can be trimmed down to suit smaller door widths to a minimum 450mm while maintaining reliable operation, providing a versatile solution for a wide range of internal hinged doors.
Automatic Drop Seal Technology
Unlike fixed draught excluders, the Raven RP60si uses a precision spring-loaded mechanism that is activated when the door closes. As the adjusting button contacts the door frame, the seal lowers evenly across the full width of the door, creating a consistent seal against the floor.
When the door is opened, the seal automatically retracts into the aluminium housing, preventing wear on carpets, timber, vinyl and hard flooring while allowing effortless door operation. The self-levelling design helps compensate for minor variations in floor levels to ensure consistent sealing performance.
Ideal for Acoustic Control
The RP60si has been specifically designed to improve acoustic performance by sealing the gap beneath the door, helping to reduce the transfer of airborne noise between rooms.
Ideal applications include:
-
Offices and meeting rooms
-
Schools and universities
-
Healthcare facilities
-
Apartment buildings
-
Hotels
-
Residential properties
-
Commercial buildings
By sealing the threshold gap, the drop seal also assists with reducing draughts, dust, insects and light penetration while improving overall energy efficiency.
Strong, Durable Construction
Manufactured from high-quality anodised aluminium, the Raven RP60si is built for demanding daily use. The replaceable TPE gasket provides excellent durability while maintaining reliable sealing performance over time.
The concealed fixing system creates a neat, professional appearance once installed, with the supplied cover strip hiding all fixing screws for a clean architectural finish.
Easy Face-Fix Installation
The RP60si is designed for simple face mounting to the bottom of timber hinged doors without the need for routing or morticing.
Installation benefits include:
-
Surface-mounted design
-
Concealed screw fixings
-
Pre-slotted fixing holes for easier adjustment
-
Adjustable operating mechanism
-
Self-levelling seal action
-
Suitable for single and double butt-hinged doors
The seal can be trimmed from its supplied length down to a minimum of 450mm, allowing installers to achieve a precise fit for a variety of door widths.
Key Features
-
Automatic drop seal activates only when the door closes
-
Face-fixed design for straightforward installation
-
Suitable for timber single and double hinged doors
-
Helps reduce noise transmission
-
Improves draught, dust and light sealing
-
Self-levelling mechanism for consistent floor contact
-
Durable anodised aluminium body
-
Replaceable TPE sealing gasket
-
Concealed fixings with cover strip included
-
Can be cut down to suit smaller doors
-
Suitable for floor gaps between 3mm and 15mm
-
Satin anodised aluminium finish
Technical Specification
-
Manufacturer: Raven
-
Product: RP60si Face Fix Automatic Acoustic Drop Seal
-
Mounting: Face Fixed
-
Material: Anodised Aluminium
-
Seal Material: TPE
-
Finish: Satin Anodised Aluminium
-
Door Type: Single and double butt-hinged timber doors
-
Gap Range: 3mm–15mm
-
Available Lengths: 450mm–920mm (cuttable)
-
Fixing Method: Concealed screw fixing
-
Supplied With: Fixing screws and cover strip
-
Fire tested - For 30 minutes to BS EN 476: Part 20 & 22
-
Smoke tested - to BS EN 1634-1: 2014
-
Acoustic tested - up to 44DB to BS EN ISO 10140-2: 2021
Why Choose the Raven RP60si?
The Raven RP60si is a trusted solution where reliable acoustic performance, durability and ease of installation are essential. Its automatic sealing action provides excellent everyday functionality while helping improve comfort, reduce energy loss and minimise unwanted noise without affecting the smooth operation of the door.
Whether you're upgrading an existing door or completing a new commercial installation, the Raven RP60si delivers dependable performance and a discreet, professional finish that installers and building managers can rely on.
Specification
| Manufacturer | Raven |
|---|---|
| Finish | Satin Anodised Aluminium |
