NWH-UCEM-2B-MULTI

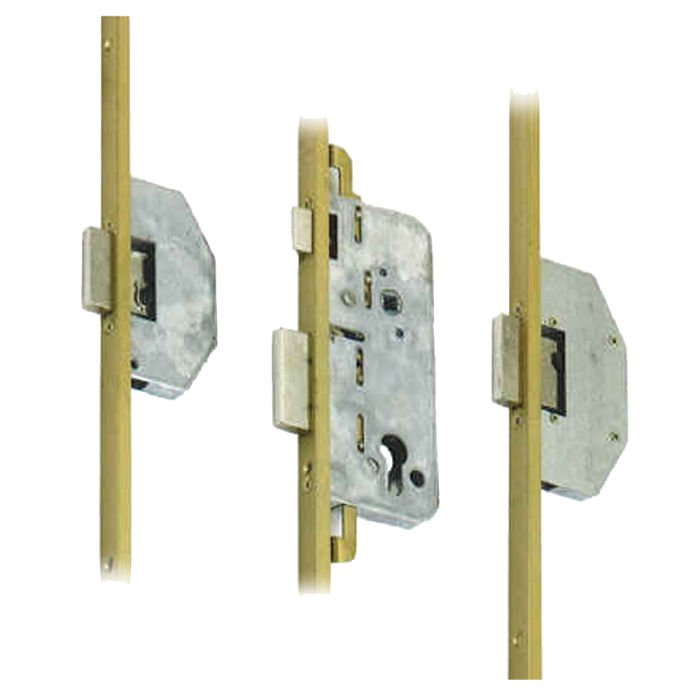

UCEM 3 Deadbolt Multipoint Lock 50mm Backset 85mm PZ Centres
Main image
Click to view image in fullscreen
![]()
- 3 Deadbolts
- 20mm U Rail Faceplate
- 85mm PZ Centres
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£156.00
Incl. VAT
£130.00
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
-
+
See our full range:
Description
UCEM 3 Deadbolt Multipoint Lock 50mm Backset 85mm PZ Centres
When it comes to securing your home or commercial premises, the reliability of your door hardware is paramount. The UCEM 3 Deadbolt Multipoint Lock 50mm Backset 85mm PZ Centres represents a sophisticated engineering solution designed to provide superior protection against unauthorized entry. By incorporating three robust deadbolts, this locking mechanism distributes force across the frame, ensuring that your timber or composite doors remain firmly secured against external pressure.
This hardware is an essential upgrade for those seeking to replace aging or faulty locking systems. Its design prioritises seamless operation alongside formidable structural integrity, making it a preferred choice for professional joiners and DIY enthusiasts alike who refuse to compromise on safety standards.
Understanding the Mechanical Physics and Force Distribution
The operational effectiveness of this equipment lies in its clever mechanical design. When you engage the lock, you are not merely pushing a single bolt into a keep. Instead, you are initiating a synchronous movement where three distinct deadbolts extend simultaneously into the door frame.
This action creates multiple points of resistance against lateral force. By spreading the load across the height of the door, the system significantly reduces the leverage an intruder can exert on a single point. The internal gear mechanism is crafted to minimise internal friction, allowing for smooth movement of the locking components even after years of daily use. The precision engineering ensures that the metal components resist deformation, even when faced with significant structural movement caused by seasonal temperature changes in the timber or composite door leaf.
Step-by-Step Operational Workflow for the User
Interacting with this locking system is designed to be intuitive and requires minimal physical effort, which is a hallmark of high-quality architectural hardware. Understanding the operational cycle helps ensure the longevity of the internal components.
Upon closing the door, the latch bolt enters the keep automatically to hold the door in the closed position. From the outside, the user then inserts a key into the Euro profile cylinder. Turning the key engages the internal cam of the lock case, which triggers the movement of the rods connected to the deadbolts. As the key completes its rotation, the three deadbolts extend deep into the door frame to achieve full locking status.
To unlock, the process is simply reversed. A turn of the key retracts the deadbolts into the door leaf. A further quarter turn of the key retracts the latch bolt entirely, allowing the door to be opened. This two-stage action prevents accidental damage to the latch spring and ensures that the user has complete control over the engagement of the security features.
Ergonomic Health, Safety, and Compliance Considerations
Safety is not just about keeping intruders out, but also about how the hardware facilitates easy exit for the occupants. This model is engineered to operate with a smooth, consistent feel that reduces the risk of wrist strain or finger fatigue, which is particularly important for elderly users or in environments with high traffic volume.
By using this high-quality hardware, property managers can ensure their doors meet stringent safety standards. A well-functioning lock that engages without the need for excessive force prevents the common operational errors that lead to jammed doors or broken keys. Furthermore, because the unit is non-handed, it eliminates the risk of ordering incorrect hardware, thereby streamlining the installation process and ensuring that all safety features are correctly aligned with the door configuration from the outset.
Commercial ROI and Long Term Asset Value
Investing in a premium multipoint lock is a prudent financial decision for any property owner. The initial cost of this equipment is quickly offset by the reduction in maintenance calls and the peace of mind that comes with a high-security installation. Cheap alternatives often suffer from rapid wear of the internal springs or corrosion of the faceplate, necessitating expensive and frequent replacements.
This item is built for longevity. Its resistance to wear and tear means that you will spend significantly less time and money on remedial repairs. Additionally, protecting your property with a system that can be upgraded with an Ultion 3 star TS007 diamond cylinder adds an extra layer of value, potentially reducing your insurance premiums. By opting for a robust and reliable locking solution, you protect your valuable assets from loss while simultaneously enhancing the operational efficiency of your facility.
Suitable Applications and Compatibility
This multipoint locking system is highly versatile and is specifically designed for use on composite and timber single doors. Whether you are installing new doors in a modern build or retrofitting security into an older property, the 50mm backset and 85mm PZ centres are common standards that ensure compatibility with a wide range of handle sets and door profiles.
Because the unit uses a 20mm U-rail faceplate, it provides a clean, professional finish that integrates seamlessly into the door edge. This design not only looks aesthetically pleasing but also creates a more secure fit against the door frame, reducing the likelihood of draughts and enhancing the overall thermal performance of the door.
Technical Specifications
For your convenience, we have outlined the technical requirements and dimensions of this locking system below. Please ensure that these specifications match your existing door cutouts before proceeding with your purchase.
| Feature | Specification |
|---|---|
| Backset | 50mm |
| PZ Centres | 85mm |
| Case Height | 178mm |
| Case Width | 80mm |
| Spindle Size | 8mm |
| Faceplate Width | 20mm U-rail |
| Full Strip Length | 2030mm |
| Handing | Non handed |
Pro Tip for Installers If you find that the locking points are not aligning perfectly with your existing keeps, take a moment to adjust the keeps rather than the lock itself. Ensuring the door is correctly adjusted on its hinges will prevent unnecessary stress on the deadbolts and extend the life of your new hardware significantly.
Not sure if this Multipoint Lock is right for your requirements?
Choosing the correct door hardware is vital for the long-term security and function of your entrance. If you are not sure if this multipoint lock is right for your requirements please contact our friendly team today to discuss your requirements. We are here to help you select the perfect solution for your specific door setup at Doorfit.
Specification
| Manufacturer | UCEM |
|---|---|
| Guarantee | 12 Months |
| Lock Type | Multipoint |
| Lock Operation | Euro Cylinder |
| Lock Backset | 50 |
| Lock Centres | 85mm |
| Follower Size (mm) | 8 |
| Faceplate Width | 20mm |
| Mechanism | 3 Deadbolts |
| Door Material Suitability | UPVC / Timber |
