PAR2277050SCP
Union 2277 3 Lever Sashlock 50mm Satin Chrome
Main image
Click to view image in fullscreen
![]()
Union 2277 50MM Scp 3 Lever Sash Door Lock 2K
In stock
Order in the next 12 hour(s) and 54 minute(s), for delivery on Tuesday (6th Jan)
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£113.33
Incl. VAT
£94.44
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
-
+
See our full range:
Description
Union 2277 50mm Satin Chrome 3 Lever Sashlock with 2 Keys
Application uses
- For timber doors hinged on the left or right
- Keys are suitable for use on doors up to 54mm thick
Features
- Deadbolt: Brass, with hardened steel rollers
- Latch Bolt: Brass
- Follower: Brass, 8mm square
- Pierced to accept bolt through furniture
- Reversible latch bolt
- 12.5mm bolt throw
- Available with square forend and striking plate
- Supplied with 2 steel nickel plated keys
- 10 Year Guarantee
Operation
- Deadbolt locked or unlocked by key from either side
- Latch bolt withdrawn by lever handle from either side

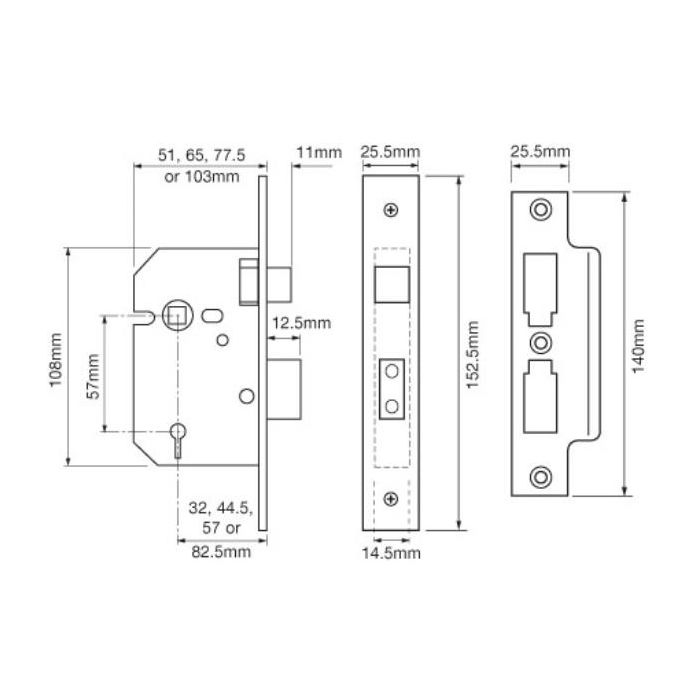

Sizes
- Case Size: 51mm (2")
- Backset: 32mm
- Centres: 57mm
- Faceplate: 152.5mm x 25.5mm
- Case height: 108mm
Finish
- Case: Steel, silver powder coat
- Forend: Satin chrome plated
- Striking Plate: Finished to match forend
Standards
- CE Marked
Not sure if this mortice lock is right for your requirements?
If you are not sure if this mortice lock is right for your requirements please contact our friendly team today.
Specification
| Manufacturer | Union |
|---|---|
| Dimensions | 108 (H) x 51 (D) |
| Guarantee | 10 Year |
| Lock Type | Mortice Sashlock |
| Lock Operation | Lever |
| Lock Backset | 32mm |
| Follower Size (mm) | 8 |
| Faceplate Width | 25.5mm |
| Environmental Suitability | Interior |
| Mechanism | Sashlock |
| Door Material Suitability | Wood |
| Max Door Thickness (mm) | 54 |
| Forend Finish | Chrome |
