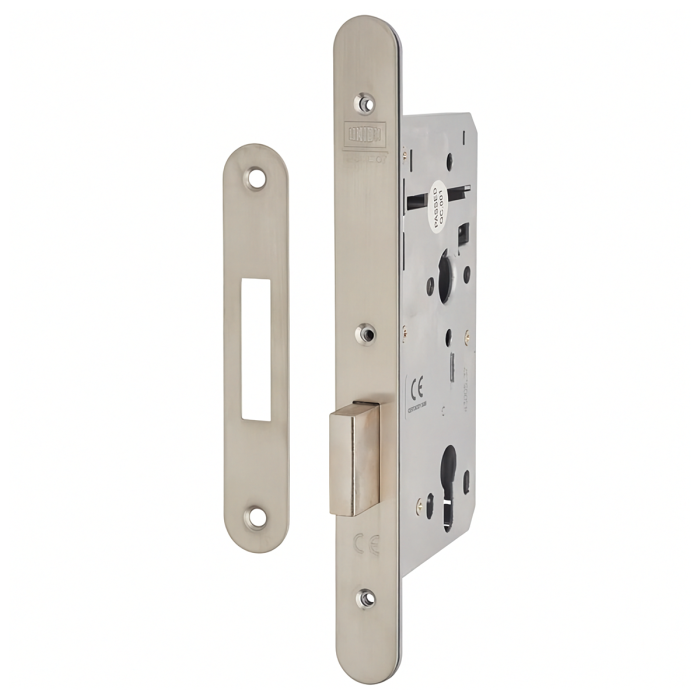

Union HD72DL-R DDA 60mm Backset Euro Deadlock Satin

Union HD72DL-R DDA 60mm Backset Euro Deadlock Satin

More Views

Union HD72DL-R DDA 60mm Backset Euro Deadlock Satin

Product ID: PAR-JHD72DL-R-SS60
£14.70 Excl. VAT £17.64 Incl. VAT £17.64 Incl. VAT £14.70 Excl. VAT
Price is for/per each

In Stock for immediate delivery

Unsure this is the product you need?
Give our experts a call on 0121 418 3415

Product Description

Union HD72DL 60mm Satin Euro Profile Deadlock BS EN 12209 with Radius Forend

The HD72 is a range of high quality lockcases from Union.

HD72 locks are designed and engineered to last longer, extending door hardware lifecycles and reducing maintenance and replacement costs. HD72 has exceeded 3.5 million cycles - 14 times greater than the industry standard, set by BS EN 12209

The full HD72 range has been designed with the same footprint for maximum user convenience, using the same case sizes for easier installation

Application uses

  • For use in high frequency areas used by public or others with little incentive to exercise care and with a high chance of misuse
  • Suitable for doors hinged on the left or the right

Features

  • European DIN style casing with 72mm centres and 60mm backset which are designed for use with Europrofile cylinders
  • 20mm Single throw deadbolt for ease of operation
  • Two piece forend provides clean aesthetics and easy maintenance
  • Splinter guard provides a professional installation
  • Pierced to accept bolt through door furniture with 38mm centres
  • Deadbolt: Steel, chrome plated
  • 15 Year Guarantee

Operation

Deadlock function from the inside:

Deadbolt locked and unlocked by operation of the cylinder key/cylinder turn

Deadlock function from the outside:

Deadbolt locked and unlocked by operation of the cylinder key/cylinder turn

Sizes

  • Case Size: 90mm
  • Backset: 60mm
  • Faceplate: 235mm x 24mm
  • Case height: 165mm
  • Escutcheon screw centres: 38mm

Finish

  • Case: Heavy duty mild steel enclosed case Silver finish
  • Forend: Grade 304 Satin stainless steel
  • Strike plate: Finished to match forend

Standards

  • Tested to BS EN 12209 : 2003
  • CE Marked
  • Certifire approved: CF5543
  • Tested to EN 1634-1 2014 on 30 and 60 minute timber fire doors and 240 minute metal fire doors
  • Assists in fulfilling duties required under the Equality Act (EA)
  • Satisfies recommendations of BS8300 and Approved Document M (ADM)



Not sure if this mortice lock is right for your requirements?

If you are not sure if this mortice lock is right for your requirements please contact our friendly team today.

Additional Union HD72DL-R DDA 60mm Backset Euro Deadlock Satin Information

Manufacturer Union
Guarantee 15 Year
Lock Type Mortice Deadlock
Lock Operation Euro Cylinder
Lock Backset 60mm
Faceplate Width 24mm
Forend Finish Stainless Steel
