Union HD72WC-R DDA 60mm Backset Bathroom Lock Satin
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
See our full range:
Description

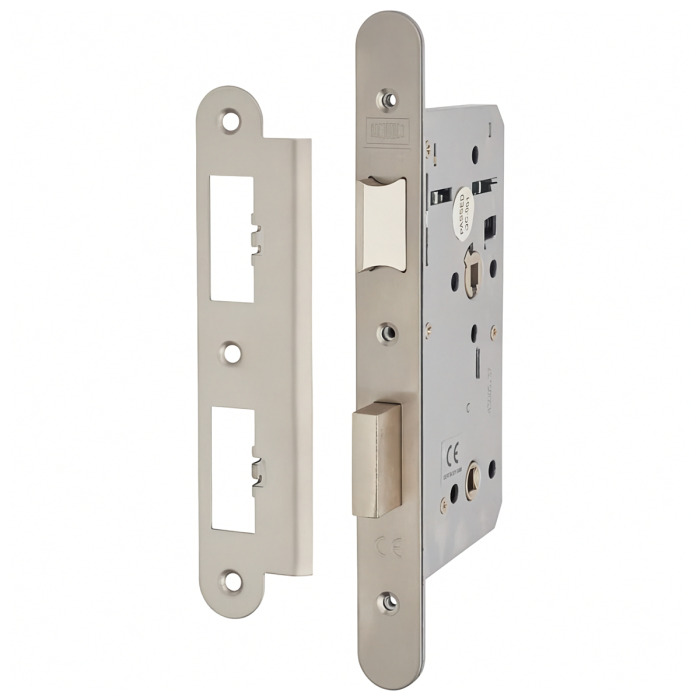

Union HD72WC-R DDA 60mm Bathroom Lock Satin
High traffic environments like office washrooms or public buildings demand hardware that survives continuous daily operation without mechanical failure. This bathroom lock provides a reliable solution for architects and facility managers who require a combination of accessibility compliance and extreme mechanical longevity during heavy usage, which means you avoid the typical frustration of sticking bolts or sagging handles commonly found in less durable alternatives.
The build quality reflects a dedicated commitment to precision engineering, featuring a high density mild steel case and a durable satin stainless steel forend that withstands environmental wear over long periods. This unit integrates perfectly into existing joinery footprints, which helps installers manage projects efficiently while maintaining a professional aesthetic throughout your building, and because it is built to handle millions of operations, it remains a trusted foundation for any bathroom door security strategy.
Why Choose the Union HD72WC-R DDA 60mm Backset Bathroom Lock Satin?
This lock delivers superior mechanical performance and design flexibility for demanding commercial environments where hardware reliability is a primary concern.
Exceptional Mechanical Durability
The internal mechanism has undergone testing to reach 3.5 million operations, which sits significantly beyond standard industry requirements for typical mortice locks. This performance level means your lock maintains smooth, consistent operation even in buildings with hundreds of daily visitors, so you do not have to worry about premature mechanical failure or expensive regular replacement schedules.
Universal Site Handing
Changing the direction of the latch bolt is a straightforward task that happens directly on site, which saves significant time during the fitting process for your team. This flexibility allows you to hold a single stock item for most bathroom applications, as it works equally well on left handed or right handed doors without needing specialised tools.
DDA Accessibility Compliance
Design teams often need to satisfy the requirements set by BS 8300 and Approved Document M for improved accessibility in public washrooms. Using this lockcase supports your efforts to meet these regulatory standards because it operates smoothly with minimal force, which helps provide an inclusive environment for every person using the facility throughout the day.
Engineering Quality and Daily Performance
Precision components and high grade materials define the internal architecture of this bathroom lock to ensure long term stability.
Internal Mechanism and Force Distribution
Internal components rely on heavy duty mild steel that is carefully enclosed to protect against dust and debris that can impede moving parts over time. The lever follower technology manages rotational stress effectively so the handle feels stable and firm under repeated use, which stops the sensation of loose or sagging door furniture that often plagues lesser hardware used in public spaces.
We focus on the interaction between the deadbolt and the strike plate to provide a secure, quiet experience for the end user. The single throw deadbolt moves with precision, allowing for a crisp locking action that avoids the common sticking issues found in cheaper alternatives, while the internal spindle grip feature stops the handle from rattling inside the door.
Weather Resistance and Long Term Finish
The forend and strike plate utilise grade 304 satin stainless steel, a material chosen because it resists corrosion and maintains its appearance in high humidity environments like washrooms. This finish stays clean for years and requires very little effort to maintain, which helps your building project look as good as it did on the first day after completion.
A two piece forend design allows for easy maintenance should the need arise, as the separate components provide easier access to the door edge during adjustments or cleaning. This thoughtful engineering approach reduces the time spent on site for your maintenance teams while keeping the overall appearance of the door hardware sleek and unobtrusive for all building occupants.
Installation and Operational Workflow
Professional fitting remains straightforward when following these standardised steps to ensure a long service life for your mortice hardware.
Preparation and Handing
Check the hand of the door before fitting the lockcase into the mortice to confirm the correct orientation. You can quickly reverse the latch bolt by removing the screw on the back of the case and flipping the bevel, which allows the unit to adapt to your specific door configuration without needing to order different models or variations for specific door sides.
Mortice and Faceplate
Cut the mortice to accommodate the 165mm case height, making sure the recess remains clean and free of wood chips or debris. Use a sharp chisel for a tidy finish against the door timber, then fix the stainless steel forend securely to ensure the lock remains perfectly square and flush with the edge of the door for a clean look.
Spindle and Furniture
Insert the 8mm bathroom follower into the lock and use the provided 5mm adaptor to suit your chosen privacy turn. Ensure the bolt through holes align with your door handles at 38mm centres, then test the latch and deadbolt action to confirm that everything moves smoothly before fitting the strike plate to the door frame for the final finish.
Expert Installation and Care Tip
When fitting the strike plate, take a moment to ensure it is positioned perfectly to prevent the door from rattling within the frame. A small adjustment here significantly improves the feeling of quality for the user, and wiping the stainless steel surface with a soft, dry cloth periodically will keep it looking brand new for many years.
Technical Specifications
| Feature | Rating / Standard | Practical Details |
|---|---|---|
| Backset | 60mm | Provides standard clearance for the handle from the door edge |
| Centres | 78mm | Compatibility with industry standard privacy furniture sets |
| Fire Rating | EN 1634-1 | Suitable for use on timber or metal fire door assemblies |
| Follower | 8mm | Includes 5mm adaptor for standard bathroom privacy turns |
| Case Height | 165mm | Standard height for easy installation into existing door prep |
| Faceplate | 235mm x 24mm | Professional grade stainless steel for long life |
Longevity and Trade Reliability
This lock delivers exceptional value by reducing the frequency of maintenance callouts in public or commercial buildings. The long service life provides peace of mind for specifiers who need hardware that performs reliably in high frequency environments.
Compatibility and Fitting Notes
Specification
| Manufacturer | Union |
|---|---|
| Guarantee | 15 Year |
| Lock Type | Mortice Bathroom |
| Lock Backset | 60mm |
| Faceplate Width | 24mm |
| Forend Finish | Stainless Steel |
