PAR-2203S-PB-76-SL
Union Strongbolt 3 Lever Sashlock Brass 76mm J2203
Main image
Click to view image in fullscreen
![]()
Union Strongbolt 2203S Brass 76mm 3 Lever Sashlock CE Marked
Union Strongbolt 2203S Brass 76mm 3 Lever Sashlock CE Marked
In stock
Order in the next 13 hour(s) and 50 minute(s), for delivery on Monday (2nd Jun)
View Delivery Information
£19.19
Incl. VAT
£15.99
Excl. VAT
£19.19
Incl. VAT
£15.99
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
-
+
See our full range:
Description
Union Strongbolt 2203S Polished Brass 76mm 3 Lever Sashlock CE Marked
Application uses
- For timber doors hinged on the left or right
- Suitable for doors up to 54mm thick
- Suitable for use on 30 and 60 min fire doors
Features
- Anti-saw security features for resistance against attack
- Chamfered bolt design increases the performance of the lock under side load testing.
- Radius inner forend for ease of installation
- 14mm deadbolt for secure positive deadlocking
- Radius plastic splinter guard for easy installation and a professional finish
- Anti rattle adjustable strike for on site fine tuning
- Can be installed in the many UK mortices without the need for additional carpentry or spoiling the edge of the door
- Hardened steel pins provide resistance to attack from sawing
- Easily reversible latch bolt
- Supplied with 2 steel nickel plated keys
Operation
- Deadbolt locked or unlocked by key from either side

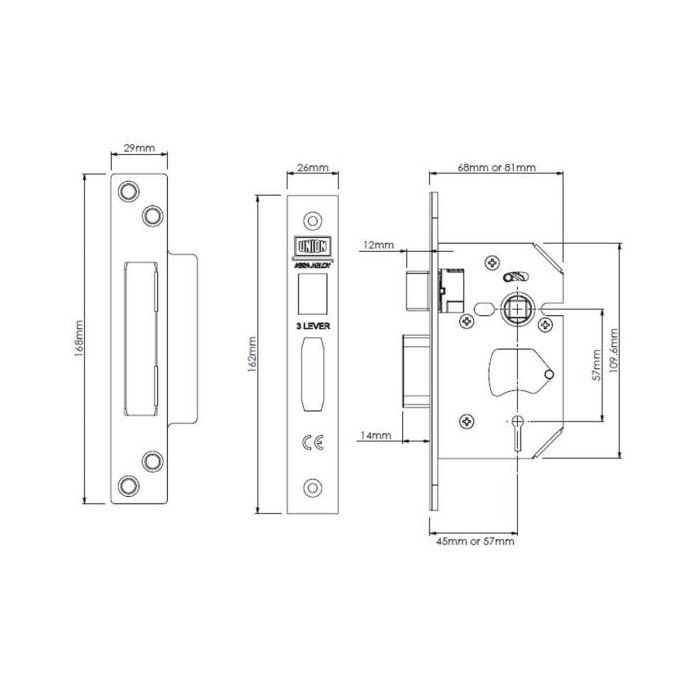

Sizes
- Case Size: 81mm (3")
- Backset: 57mm
- Centres: 57mm
- Follower: 8mm
- Faceplate: 162mm x 26mm
- Case height: 109mm
Finish
- Case: Steel, red powder coat
- Forend: Brass plated
- Striking Plate: Finished to match forend
Standards
- Tested to BS EN 12209:2003
- CE Marked
- Certifire Approved
Not sure if this mortice lock is right for your requirements?
If you are not sure if this mortice lock is right for your requirements please contact our friendly team today.
Union Strongbolt 2203S Polished Brass 76mm 3 Lever Sashlock CE Marked
Application uses
- For timber doors hinged on the left or right
- Suitable for doors up to 54mm thick
- Suitable for use on 30 and 60 min fire doors
Features
- Anti-saw security features for resistance against attack
- Chamfered bolt design increases the performance of the lock under side load testing.
- Radius inner forend for ease of installation
- 14mm deadbolt for secure positive deadlocking
- Radius plastic splinter guard for easy installation and a professional finish
- Anti rattle adjustable strike for on site fine tuning
- Can be installed in the many UK mortices without the need for additional carpentry or spoiling the edge of the door
- Hardened steel pins provide resistance to attack from sawing
- Easily reversible latch bolt
- Supplied with 2 steel nickel plated keys
Operation
- Deadbolt locked or unlocked by key from either side
Sizes
- Case Size: 81mm (3")
- Backset: 57mm
- Centres: 57mm
- Follower: 8mm
- Faceplate: 162mm x 26mm
- Case height: 109mm
Finish
- Case: Steel, red powder coat
- Forend: Brass plated
- Striking Plate: Finished to match forend
Standards
- Tested to BS EN 12209:2003
- CE Marked
- Certifire Approved
Not sure if this mortice lock is right for your requirements?
If you are not sure if this mortice lock is right for your requirements please contact our friendly team today.
Specification
| Manufacturer | Union |
|---|---|
| Finish | Polished Brass |
| Guarantee | 10 Year |
| Lock Type | Mortice Sashlock |
| Lock Operation | Lever |
| Lock Backset | 57mm |
| Lock Centres | 57mm |
| Follower Size (mm) | 8 |
| Faceplate Width | 26mm |
| Environmental Suitability | All |
| Mechanism | 1 Latch Bolt, 1 Dead Bolt |
| Door Material Suitability | Wood |
| Max Door Thickness (mm) | 54 |
| Forend Finish | Polished Brass |
