TIT-MACO-MA57165-600
Maco 600mm Offset Window Lock Espagnolette 25mm Backset MA57165
Main image
Click to view image in fullscreen
![]()
Maco 600mm Offset Window Lock Espagnolette 25mm Backset MA57165
In stock
Order in the next 10 hour(s) and 26 minute(s), for delivery tomorrow
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£11.16
Incl. VAT
£9.30
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
See our full range:
Description

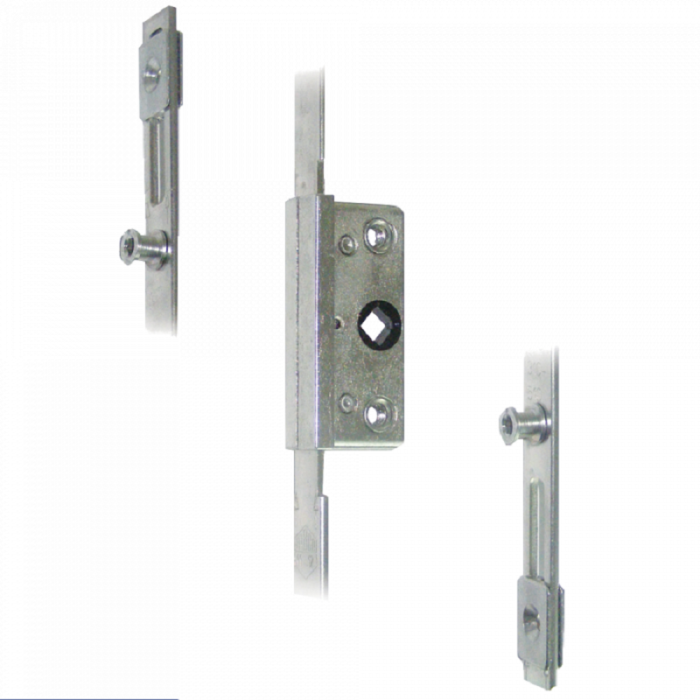

Maco 600mm Offset Window Espagnolette 25mm Backset MA57165
Multipoint locking espagnolette for side hung or top hung applications with adjustable mushroom cams
Application uses
- Suitable for PVCu, Aluminium, Timber windows
- Outward opening windows
- Side & top hung windows
- Profiles with or without a eurogroove
Features
- Suitable for use on windows with or without a 16mm eurogroove
- Mushroom head cams aid security
- Adjustable locking cams
- Can be fitted in a eurogroove
- 7.7mm cam height
- 25mm backset

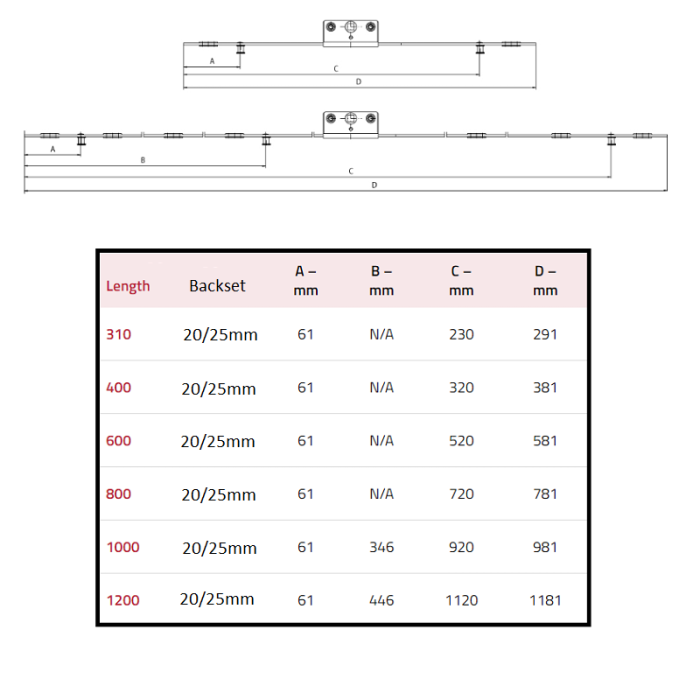

- Available in sizes ranging from 310mm to 1200mm
- Keeps/striker plates are profile related, please phone for suitability

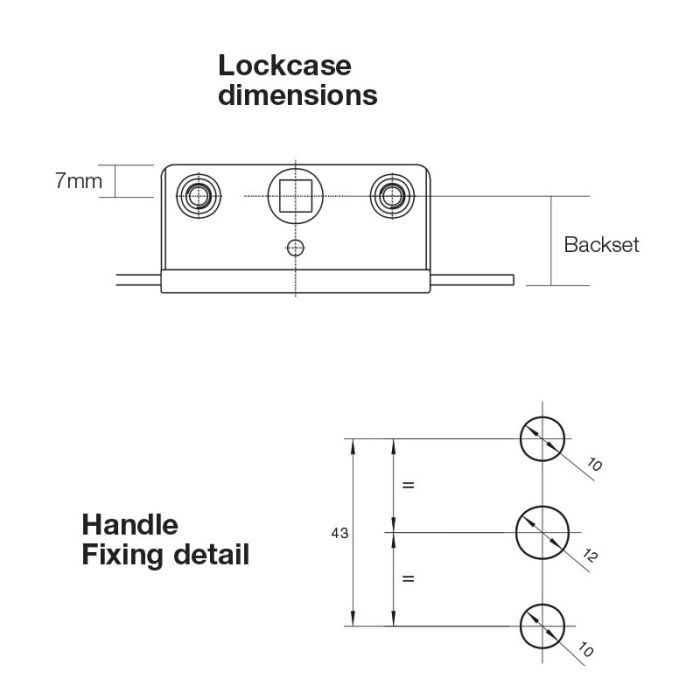

Dimensions
Recommended screws
- Espagnolette/Shootbolt – 4mm/No.8 countersunk head
- Handle fitting – M5 machine screw or suitable alternative
Performance
Conforms to BS644, BS4873 and BS 7412: 2002 corrosion resistance, tested in accordance with BS EN 1670: 2007 Grade 5 Silver Chromate
Not sure if this Window Espag lock is right for your requirements?
If you are not sure if this window espag lock is right for your requirements please contact our friendly team today.
Specification
| Window Material Suitability | UPVC / Wood / Metal |
|---|---|
| Window Operation | Hinged |
| Faceplate Width | 16mm |
| Lock Backset | 25mm |
| Roller Height | 7.7mm |
| Gear Type | Offset |
