ZDL7260RLL Lift to Lock DIN Roller Bathroom Sashlock Radius Forend
Main image
Click to view image in fullscreen
![]()
ZDL7260RLL Lift to Lock DIN Roller Bathroom Sashlock Radius Forend
In stock
Order in the next 7 hour(s) and 35 minute(s), for delivery on Tuesday (30th Dec)
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£28.73
Incl. VAT
(Save 21%)
£23.94
Excl. VAT
£22.75
Incl. VAT
£18.96
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
-
+
See our full range:
Description
The Zoo ZDL7260RLL Lift to Lock 60mm DIN Roller Bathroom Sashlock with 72mm Centres and Radius Forend
*The forend plate is often branded "Vier" not Zoo*
Key Features
- BS EN 12209 2003 : Grade 3
- 90mm Case Size
- 60mm Backset
- Radius Profile - 22mm SS304 Forend
- SS304 Latchbolt & Deadbolt
- Anti-Rattle Strike
- Grip Tight Follower
- 72mm c/c

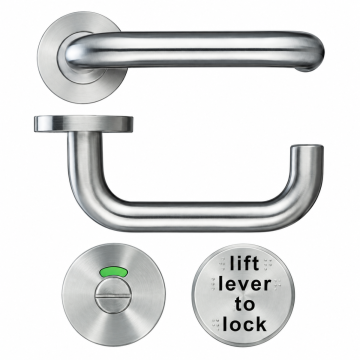

THE ZDL7260RLL WHEN USED WITH THE ZCS030LL OPERATES IN THE FOLLOWING MANNER
External / Outside access.
The roller latch bolt is operated externally with one half of the unsprung lever set, this release the roller latch bolt as normal. Underneath the lever is the release & indicator, this operates in the same manner as bathroom type coin releases.
Internal / Inside access.
The internal side of the lever set will be configured such that, the latch bolt is blanked off with a engraved covered escutcheon. The deadbolt features the second lever handle, and by throwing the handle up “extends the deadbolt” & locks the door. By turning the handle down the deadbolt is withdrawn, further downward action of the lever withdraws the roller latch bolt, allowing exit.
Not sure if this Bathroom lock is right for your requirements?
If you are not sure if this bathroom lock set is right for your requirements please contact our friendly team today.
Specification
| Manufacturer | Zoo |
|---|---|
| Finish | Satin Stainless Steel |
| Lock Backset | 60mm |
| Lock Centres | 72mm |
| Follower Size (mm) | 8 |
| Faceplate Width | 22mm |
| Environmental Suitability | Interior |
| Door Material Suitability | Timber / Composite |
| Forend Finish | Stainless Steel |
