Zoo Architectural Locking Corridor Fire Door Kit KITA1
Main image
Click to view image in fullscreen
![]()
Fire tested in accordance with BS EN1634-1
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£71.99
Incl. VAT
£59.99
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per pack
-
+
See our full range:
Description
Zoo Architectural Locking Corridor Fire Door Kit KITA1
The Zoo Architectural Fire Door Pack KITA1-FDP-A1 is a comprehensive hardware solution designed to ensure fire safety compliance in commercial and public buildings. Tailored for corridor applications that use a euro cylinder dead lock mechanism , this pack includes essential components such as a size 3 door closer, three Grade 13 stainless steel ball bearing hinges, and intumescent pads for hardware fire protection. It is suitable for wooden doors ranging from 35mm to 54mm in thickness and the furniture is satin stainless steel finish.
All components have been third-party performance tested to the relevant British and European standards, fire tested in accordance with BS EN1634-1, and are CE / UKCA marked where applicable.
Application Uses
- Designed for doors that need to be locked for most of the time, this kit contains a deadlock (deadbolt only) and associated hardware
- Typical applications include maintenance access doors or storage cupboards where normal opening/closing is by turning the cylinder key
- The Kit is ideal for use on timber fire doors FD30
Features
- Supplied with high quality components including ZUKD76EPSS lock case, VDC003 closer and V5EP70DSCE cylinder
- Intumescent expands when heated to protect door fittings and help prevent the spread of fire
- Certifire approved
- CE Marked
- Satin stainless finish furniture
- 3 x keys included
Specification
- The Kit can be installed on doors up to 950mm wide and 60kg in weight
- The VDC003 door closer is fully tested as an EN 3 closer in Figure 1, 6 and 61 installations
- Hinges have 2 ball bearing races for improved durability and template fixing screw holes, ideal for timber doors
- The Grade 13 hinges are intended for use on doors up to 120kg
- Square corners on hinges, lock faceplate and keep makes door prep easy with chisel and hammer
- The ZUKD76EP deadlock is tested to BS EN12209 : 2003 Grade 2
- Lockcase is prepared for bolt through furniture to ensure ironmongery stays on the door
- The 35-35 euro profile 5 pin cylinder (70mm in overall length) conforms to BS EN 1303.
- 300 x 19mm D shape pull handle has bolt through fixings for secure installation
- 350 x 75mm push plate is easy to screw to door to mask the handle fixings
- Signage reminds users to keep the door shut to ensure the fire door can perform as expected if needed
Standards
- The ZHSS243S3 hinges are CE Marked to EN 1935 and Certifire approved
- The VDC003 closer is CE Marked to EN 1154 and Certifire approved
- The ZUKD76EP deadlock is CE Marked to EN 12209 and Certifire approved
- The V5EP70DSCE euro profile cylinder has been tested to EN 1303

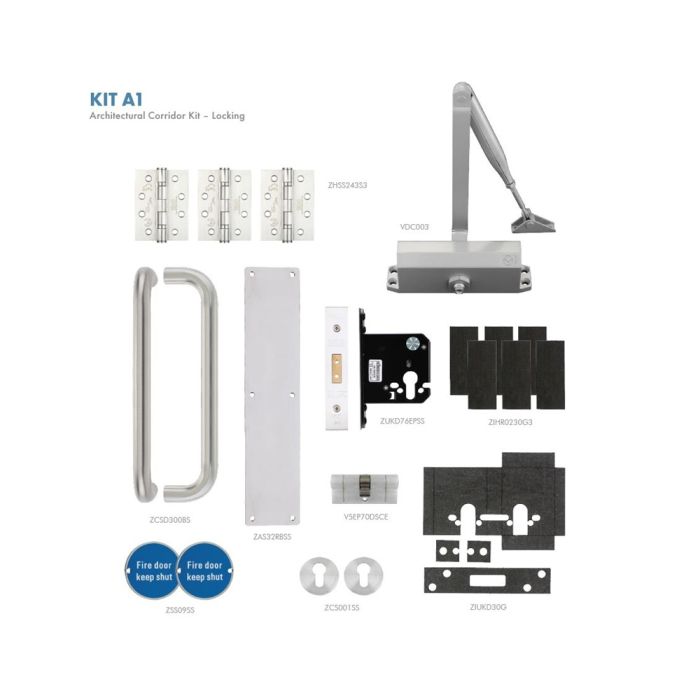

Kit contains
- 3 x ZHSS243 grade 13 ball bearing hinge with screws
- 3 x Intumescent kit for hinge
- 1 x VDC003 closer
- 2 x Fire Door Keep Shut sign
- 1 x ZUKD76EP Dead lock
- 1 x Dead lock Intumescent kit
- 2 x Euro profile escutcheon
- 1 x V5EP70DSCE 35-35 Euro double cylinder
- 1 x 300 x 19mm D shape pull handle
- 1 x 350 x 75mm push plate
Not sure if this Fire Door Kit is right for your requirements?
If you are not sure if this fire door kit is right for your requirements please contact our friendly team today.
Specification
| Manufacturer | Zoo |
|---|
