Description
Zoo Architectural Locking Office Fire Door Kit KITA3
The Zoo Architectural Fire Door Pack KITA3-FDP-A3 is a comprehensive hardware solution designed to ensure fire safety compliance in commercial and public buildings. Tailored for office door applications that use a euro cylinder sash lock mechanism , this pack includes essential components such as a size 3 door closer, three Grade 13 stainless steel ball bearing hinges, and intumescent pads for hardware fire protection. It is suitable for wooden doors ranging from 35mm to 54mm in thickness and the furniture is satin stainless steel finish.
All components have been third-party performance tested to the relevant British and European standards, fire tested in accordance with BS EN1634-1, and are CE / UKCA marked where applicable.
Application Uses
- Designed for passage doors that need to be locked for some time, this kit contains a ZUKS76EPSS sashlock (latch and deadbolt) and associated hardware
- Typical applications include meeting rooms, office doors and classroom doors where normal opening/closing is by handle but sometimes the door needs to be securely locked by turning the cylinder key
- The Kit is ideal for use on timber fire doors FD30
Features
- Supplied with high quality components including ZUKS76EPSS sashlock, VDC003 closer and V5EP70CTSCE cylinder
- Intumescent expands when heated to protect door fittings and help prevent the spread of fire
- Certifire approved
- CE Marked
- Satin stainless finish furniture
- 3 x keys included
Specification
- The Kit can be installed on doors up to 950mm wide and 60kg in weight
- The VDC003 door closer is fully tested as an EN 3 closer in Figure 1, 6 and 61 installations
- Hinges have 2 ball bearing races for improved durability and template fixing screw holes, ideal for timber doors
- The Grade 13 hinges are intended for use on doors up to 120kg
- Square corners on hinges, lock faceplate and keep makes door prep easy with chisel and hammer
- The ZUKS76EPSS sashlock is tested to BS EN12209 : 2003 Grade 2
- Lockcase is prepared for bolt through furniture to ensure ironmongery stays on the door
- The 35-35 euro profile 5 pin cylinder (70mm in overall length) conforms to BS EN 1303.
- ZCS030SS RTD lever handles tested to BS EN 1906 : 2010 Grade 3
- Signage reminds users to keep the door shut to ensure the fire door can perform as expected if needed
Standards
- The ZHSS243S3 hinges are CE Marked to EN 1935 and Certifire approved
- The VDC003 closer is CE Marked to EN 1154 and Certifire approved
- The ZCS030SS RTD lever handles tested to BS EN 1906 : 2010 Grade 3
- The ZUKS76EPSS sashlock is CE Marked to EN 12209 and Certifire approved
- The V5EP70CTSCE euro profile cylinder & turn has been tested to EN 1303

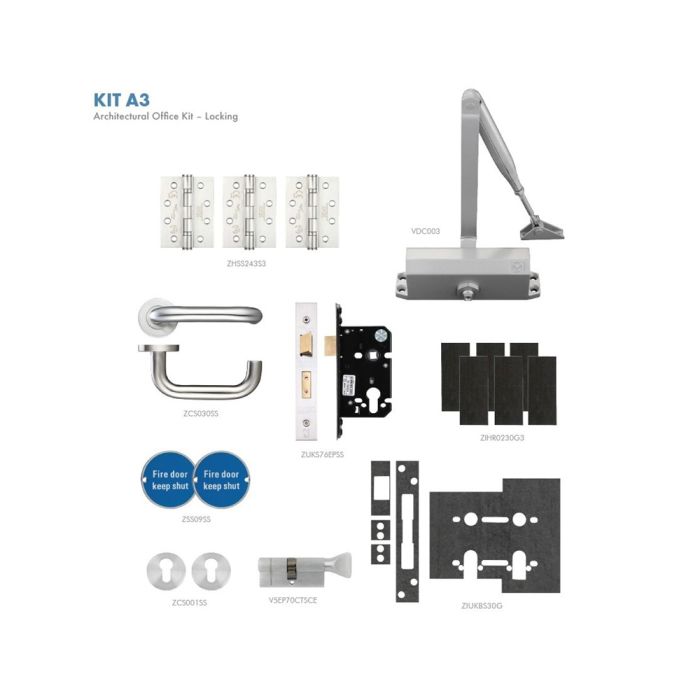

Kit contains
- 3 x ZHSS243 grade 13 ball bearing hinge with screws
- 3 x Intumescent kit for hinge
- 1 x VDC003 closer
- 2 x Fire Door Keep Shut sign
- 1 x ZUKS76EPSS sashlock
- 1 x Sash lock Intumescent kit
- 2 x Euro profile escutcheon
- 1 x V5EP70CTSCE 35-35 Euro cylinder & turn
- 1 x ZCS030SS RTD lever handles
Not sure if this Fire Door Kit is right for your requirements?
If you are not sure if this fire door kit is right for your requirements please contact our friendly team today.
