BRI-2003V-SES-CLOSER
Briton 2003V Overhead Door Closer Silver
Main image
Click to view image in fullscreen
![]()
Briton 2003V SES Overhead Door Closer
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£73.80
Incl. VAT
£61.50
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
-
+
See our full range:
Description

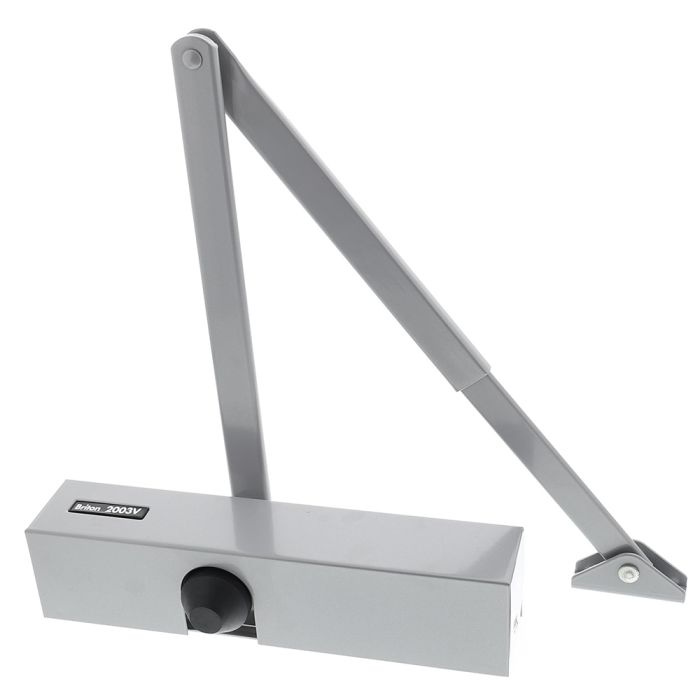

Briton 2003V Overhead Door Closer Silver
The Briton 2003V Overhead Door Closer Silver represents a pinnacle in mechanical engineering for commercial door control. Designed for versatility and long term reliability, this unit provides an adjustable power size of 1 to 4, allowing it to adapt seamlessly to a wide variety of medium duty applications. Whether you are managing office spaces, storerooms, or high traffic corridors, this closer ensures your doors operate with consistent control and safety.
This model is built to meet the rigorous demands of modern building regulations. By focusing on low opening forces, it helps facility managers satisfy the requirements of Approved Document M of the Building Regulations and the guidelines set out in BS 8300. These features are essential for ensuring that environments remain accessible to all individuals in accordance with the Equality Act 2010.
Mechanical Physics and Operational Force Dynamics
At the heart of this equipment lies a high performance rack and pinion mechanism. This system is designed to translate the rotational energy applied during the door opening phase into stored potential energy within the internal spring assembly. As the user pushes the door, the precision needle roller bearings reduce internal friction to an absolute minimum, ensuring that the opening action feels smooth and requires very little physical effort.
The internal tension is managed through a carefully calibrated valve system. When the door is released, the stored energy is gradually discharged, providing a controlled closing sequence. The adjustable backcheck feature is a critical component here. It provides a hydraulic cushion during the final stage of the opening cycle, which prevents the door from striking adjacent walls or causing damage to the door frame. This mechanical resistance is vital for protecting both the infrastructure of your building and the integrity of the door closer itself.
Step by Step Operational Workflow
When interacting with this door control system, the user experiences a streamlined and intuitive operation. Upon reaching the door, the individual applies a gentle force that is immediately supported by the smooth mechanical action of the armset. As the door reaches the ninety degree mark, the adjustable backcheck engages, providing a subtle resistance that prevents the door from swinging aggressively into the wall behind it.
Once the individual passes through, the closer takes over the workload. The closing speed is managed by the initial stage of the hydraulic valve, which brings the door from its open position to the near closed position with constant motion. As the door nears the frame, the latching speed adjustment takes precedence. This subtle increase in speed ensures that the door successfully overcomes any resistance from seals or latch bolts, guaranteeing the door closes firmly every single time. This sequence is entirely automatic and requires no secondary user input, maintaining security and fire safety standards without constant manual intervention.
Ergonomic Health Safety and Regulatory Compliance
Installing this hardware is an investment in the safety and ergonomics of your workspace. By fine tuning the closing force, you eliminate the common problem of heavy, difficult to open doors that cause user fatigue or even injury. In a commercial environment, this promotes a healthier atmosphere where access is barrier free and inclusive.
Safety is further enhanced through its fire testing credentials. This unit is tested to EN 1634 standards and is fully Certifire approved. It is compatible with fire doors of up to two hours for timber and four hours for steel. This provides peace of mind that in the event of a fire, the equipment will reliably close the door to prevent the spread of flames and smoke. Compliance with CE marking to EN 1154 serves as your assurance that the product has undergone rigorous independent testing for performance and endurance.
Commercial ROI and Long Term Value
The decision to install a premium door closer from the 2000 series is a sound financial choice for any property owner. Many budget alternatives fail within a few years due to the degradation of internal seals or the stripping of pinion mechanisms. In contrast, this model uses a heat treated steel pinion and a forged steel piston that are engineered for rugged, long term performance.
By investing in high quality hardware, you significantly reduce the cycle of maintenance and replacement. This decreases the total cost of ownership while protecting your existing assets, such as door leaves and wall finishes, from the wear and tear caused by slamming or uncontrolled door movement. The inclusion of a 10 year further underscores the manufacturer's confidence in the longevity and reliability of this item.
Technical Specifications
| Feature | Parameter |
|---|---|
| Power Size | EN 1 to 4 |
| Maximum Door Width | 1100mm |
| Maximum Door Weight | 80kg |
| Opening Angle | 180 degrees |
| Backcheck | Adjustable |
| Closing Speed | Adjustable |
| Latching Speed | Adjustable |
| Mechanism Type | Rack and Pinion |
| Body Material | Cast Aluminium |
| Safety Features | Safety Valve Protected |
| Guarantee | 10 Years |
Pro Tip for Installers. Utilise the Accufit template included in your kit to achieve the highest level of precision during installation. This template is designed to reduce your overall fitting time by ensuring the holes are perfectly aligned from the first attempt, which keeps the mechanical alignment of the armset optimal for the entire lifespan of the unit.
Application Flexibility and Design

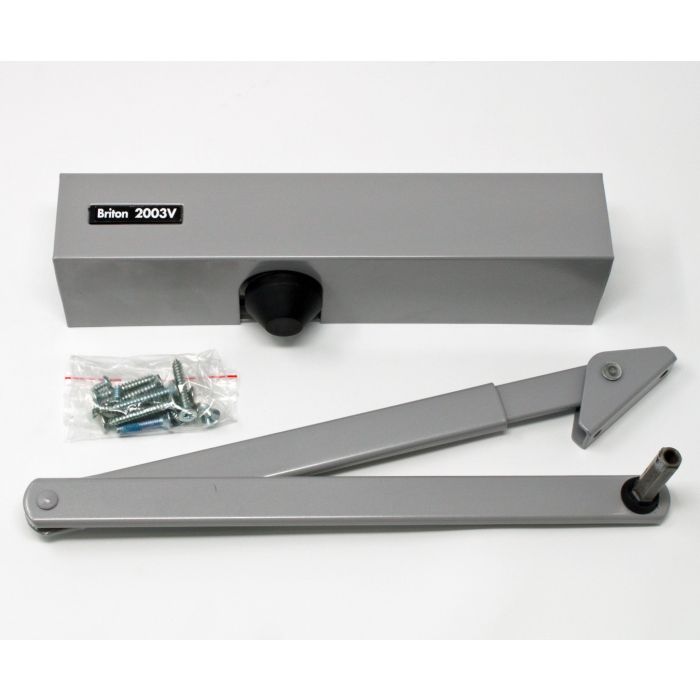

The Briton 2003V Overhead Door Closer Silver is a non handed device, meaning it can be mounted on either left or right hand doors with total ease. This flexibility simplifies your procurement process, as you do not need to worry about specific handedness during the planning stage. The included Tri-Pack armset covers all standard fixing configurations, allowing for a flush or parallel mounting depending on your specific doorway layout.

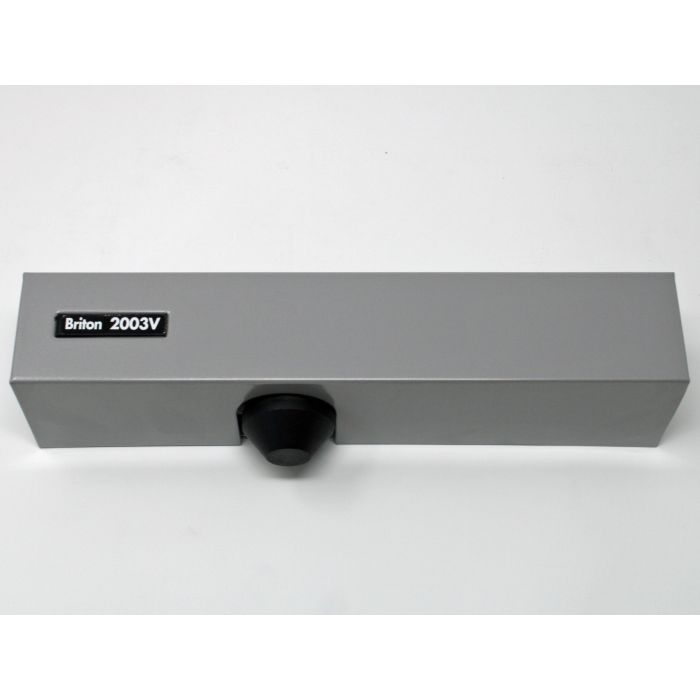

The aesthetic design is just as refined as its mechanical performance. The silver finish offers a clean, professional look that integrates well into modern office environments, clinical settings, or educational facilities. With the all over cover, the adjusters remain concealed, providing a sleek appearance that does not detract from the decor of the room while keeping the adjustment valves protected from unauthorised tampering.
Standards
- CE Marked to EN 1154
- Fire tested to EN 1634 for use on fire doors up to 2hr timber (FD120) / 4hr steel (FD240)
- Certifire Approved
Need Assistance With Your Selection
Selecting the correct hardware for your specific door setup is vital for both performance and safety. If you are not sure if this door closer is right for your requirements please contact our friendly team today to discuss your requirements. Our experts are always available to provide guidance on compatibility, fire regulations, and installation best practices to ensure you choose the best solution for your project.
Specification
| Manufacturer | Briton |
|---|---|
| Guarantee | 10 Year |
| Type | Overhead |
| Power sizes | 1 to 4 |
| Finish | Silver Sprayed |
| CE Certified | Yes |
| Certifire Approved | Yes |
| Application | Universal |
| Arm Assembly | Projecting Arm |
| Closing Speed | Variable |
| Latching Action | Yes |
| Stand Open | No |
| Back Check | Yes |
| Delayed Action | No |
