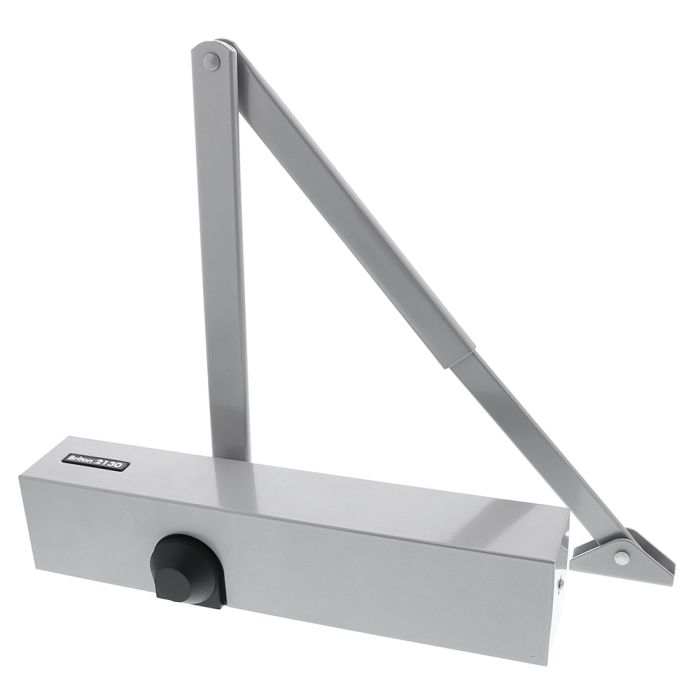

Briton 2130B.C 2-6 Door Closer with Backcheck Silver

Briton 2130B.C 2-6 Door Closer with Backcheck Silver

More Views

Briton 2130B.C 2-6 Door Closer with Backcheck Silver

Product ID: BRI2515ESE
£151.38 Excl. VAT £181.66 Incl. VAT £181.66 Incl. VAT £151.38 Excl. VAT

Multi Purchase Offers

Individual Prices
  • 3+ £136.24 £163.49 EACH
  • 5+ £121.10 £145.32 EACH
Price is for/per each

In Stock for immediate delivery

Unsure this is the product you need?
Give our experts a call on 0121 418 3415

Product Description

Briton 2130B.C Silver Variable Power Size 2-6 Overhead Door Closer with Backcheck To BS EN 1154

The Briton 2130 Series of door controls offers a comprehensive package of solutions to suit any ‘Extra Heavy Duty’ application

Developed in conjunction with installers, the 2130 Series incorporates one of the simplest, quickest and most accurate installation systems available.

This combination of engineering quality and good looks creates a truly versatile architectural solution for any severe or heavy duty

Application

  • An efficient and durable rack & pinion overhead door closer.
  • Suitable for heavy duty applications, including hospitals & schools
  • Suitable for both fire and non-fire doors
  • Easy installation and adjustment
  • Non-handed design which provides flexibility
  • Universal Application

Specification

  • Closing force EN variable power size 2-6
  • Cast iron body providing high levels of durability and long life performance
  • Hardened steel rack & pinion mechanism
  • Maximim door width - 1400mm
  • Maximum door weight - 120kg
  • Steel pinion is heat treated for strength and durability
  • Silicon chrome alloy steel springs for superior strength and reliability
  • Forged, heat treated and ground steel piston for rugged durability
  • Precision needle roller bearing for optimum performance and efficiency
  • The mechanism is safety valve protected to prolong the life of the closer against abuse and misuse
  • Pre-assembled arm and bracket simplifies assembly, increasing speed and accuracy of installation
  • 180° Door opening
  • Adjustable closing speed
  • Adjustable latching speed
  • Adjustable backcheck
  • Stylish flatform arm in finish to match door closer cover
  • Accufit template increases the accuracy of installation and helps to reduce installation time
  • Supplied with all necessary fittings
  • 10 Year guarantee

Dimensions

  • Length - 310mm
  • Width - 55mm
  • Depth - 66mm

Standards

  • CE Marked to EN 1154 and EN 1155
  • Fire tested to EN 1634 for use on fire doors up to 2hr timber (FD120) / 4hr steel (FD240)
  • Certifire Approved



Not sure if this Door Closer is right for your requirements?

If you are not sure if this door closer is right for your requirements please contact our friendly team today to discuss your requirements.

Additional Briton 2130B.C 2-6 Door Closer with Backcheck Silver Information

Manufacturer Briton
Guarantee 10 Year
Type Overhead
Power sizes 2 to 6
Finish Silver Sprayed
CE Certified Yes
Certifire Approved Yes
Application Universal
Arm Assembly Projecting Arm
Closing Speed Variable
Latching Action Yes
Stand Open No
Back Check Yes
Delayed Action No
