Boss 2-4 Backcheck Door Closer Silver TS5.224V
- Easy installation and adjustment
- CE Marked
- Certifire approved
- 25 Year guarantee
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
See our full range:
Description

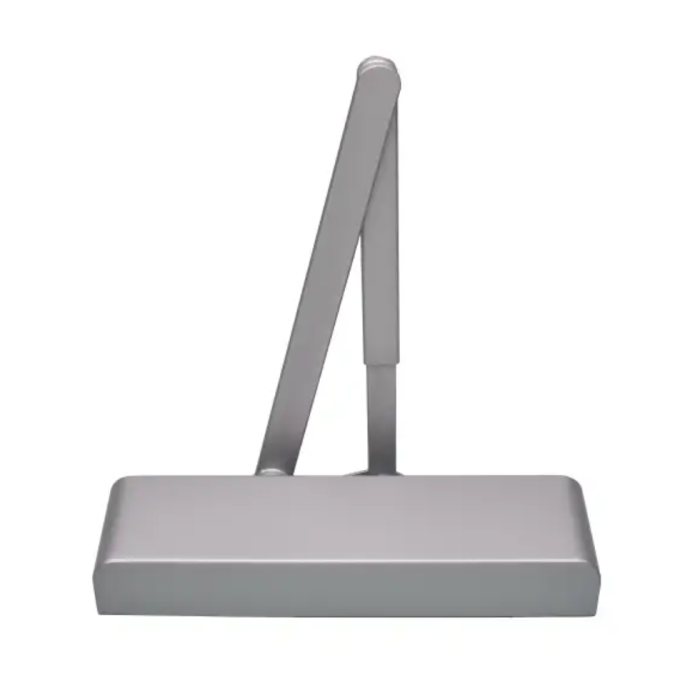

Boss 2-4 Backcheck Door Closer Silver TS5.224V
Managing door movement in busy environments requires a solution that balances smooth daily operation with the physical necessity of protection against sudden, forceful openings. This overhead door closer provides a measured response to the demands of high-traffic commercial spaces because it incorporates a sophisticated rack and pinion mechanism that controls the kinetic energy of a closing door with accuracy. Whether you are outfitting a busy office corridor or a school block, the unit ensures that doors return to a closed position quietly and consistently, which prevents the frustration and potential damage caused by slamming.
Construction quality defines the daily experience of this closer, as the finish provides significant resistance to the wear and tear often found in heavy-use buildings. The silver aesthetic blends into professional settings while the internal components are designed to maintain their calibration over thousands of cycles, so that the maintenance team can rely on long-term performance without needing frequent adjustments. By focusing on the fundamentals of consistent force and controlled movement, this product offers a practical choice for architects and facilities managers who need hardware that performs well under pressure while remaining discreet on the door frame.
Why Choose the Boss 2-4 Backcheck Door Closer Silver TS5.224V?
This closer offers a balanced approach to door control for environments where durability is a primary requirement.
Adjustable Backcheck Function
The integrated backcheck feature acts as a hydraulic cushion when a door is opened with excessive force. It prevents the door from striking nearby walls or furniture, which is especially helpful in tight hallways or windy conditions where external pressure could cause damage. This controlled stop maintains the physical integrity of your door surroundings.
Flexible Universal Application
Designers and fitters benefit from the non-handed configuration, which means the same unit works on doors hinged on either the left or the right side. This reduces stock requirements and simplifies the procurement process for large projects. It supports various mounting positions, which allows for consistent hardware standards across your entire building floor plan.
Fire Safety Compliance
The unit has passed rigorous testing to meet fire safety standards for timber and metal fire doors. It provides the necessary closing force to ensure that fire doors remain shut in the event of an emergency. This certified performance offers peace of mind because the hardware is engineered specifically to function within safety parameters.
Engineering Quality and Daily Performance
Precision components within the casing manage the transition between opening and closing cycles with predictable motion.
Internal Mechanism and Force Distribution
The rack and pinion system at the heart of the unit is engineered to deliver smooth transitions during the entire swing of the door. When you open the door, the resistance is calibrated to feel natural, so that users do not experience difficulty or heavy fatigue during regular operation. This fluid motion is supported by high-grade hydraulics that maintain their viscosity across different temperatures, which keeps the closing speed consistent throughout the seasons.
Adjustment is possible through simple controls that govern the latching and closing phases independently. This allows you to set the final closing stage to be gentle enough to avoid excessive noise while still engaging the latch securely. The internal power spring provides the energy needed for full closure, and because the strength is adjustable, you can fine-tune the closer to match the specific weight and width of your individual door leaves.
Weather Resistance and Long-Term Finish
The outer casing is crafted from materials that stand up to the daily rigours of high-traffic use without losing its visual appeal. The silver finish is applied to prevent oxidation, which means the closer remains looking fresh even when used in areas that experience higher levels of ambient moisture. This finish is specifically selected to endure years of exposure, keeping the door looking tidy as part of a clean architectural scheme.
Durability is built into every element, from the mounting brackets to the adjustable arm, so that you do not need to worry about hardware fatigue over long periods. The internal components are protected by a sealed housing that locks in lubricant and keeps out dust. By focusing on the longevity of moving parts, the unit prevents the common issues of fluid leaks or spring failure, which keeps your building entrance points operating as intended for the long term.
Installation and Operational Workflow
A logical installation process helps ensure the hardware is positioned for maximum operational efficiency.
Preparation and Mounting
Begin by marking the required fixing points on the door and frame based on the provided template. Using the correct measurements ensures that the geometry of the arm functions correctly without binding. Secure the body and the arm bracket firmly to the substrate, taking care that the screws are tightened evenly to provide a stable base for the hydraulic mechanism.
Arm and Force Tuning
Connect the arm to the closer body and adjust the link length to reach the desired closing angle. This stage is where you balance the power spring settings to suit the door weight. The adjustment controls are accessible on the face of the unit, allowing you to set the initial closing force and the final latching speed to match the door environment.
Backcheck Calibration
Once the door is moving freely, tune the backcheck function to provide the right level of resistance before the door reaches its maximum opening angle. This protects the surrounding wall structure from impact. Test the door through a full range of motion to confirm that it closes fully under its own power without hesitation at the final latching point.
Expert Installation and Care Tip
When installing, always check that your door hinges are perfectly aligned, as any friction at the pivot points will counteract the closer efficiency. A regular wipe with a soft cloth keeps the finish free of dust and prevents debris from accumulating near the arm linkage, which ensures the moving parts continue to operate with full freedom.
Technical Specifications
| Feature | Rating / Standard | Practical Details |
|---|---|---|
| Power Size | EN 2-4 | Allows for adaptation to doors up to 1100mm wide and 80kg in weight. |
| Fire Performance | EN 1634 | Fully certified for use on FD120 timber and FD240 metal fire door sets. |
| Dimensions | 207mm x 55mm x 38mm | Compact footprint for use on standard door frames and narrow stiles. |
| Opening Angle | 180 Degrees | Suitable for doors requiring full clearance for access and movement. |
Longevity and Trade Reliability
The 25-year guarantee acts as a benchmark for the expected service life, providing confidence for commercial and residential installations alike. Investing in this hardware reduces the lifecycle cost of your door management, as the product is built to resist common mechanical failure points over many years.
Compatibility and Fitting Notes
Specification
| Manufacturer | Boss Door Controls |
|---|---|
| Finish | Silver |
| Guarantee | 25 Year |
| Type | Overhead |
| Power sizes | 2 to 4 |
| Finish | Silver |
| CE Certified | Yes |
| Certifire Approved | Yes |
| Application | Universal |
| Arm Assembly | Projecting Arm |
| Closing Speed | Variable |
| Latching Action | Yes |
| Stand Open | No |
| Back Check | Yes |
| Delayed Action | No |
