DMA-TS83SIL-2-6

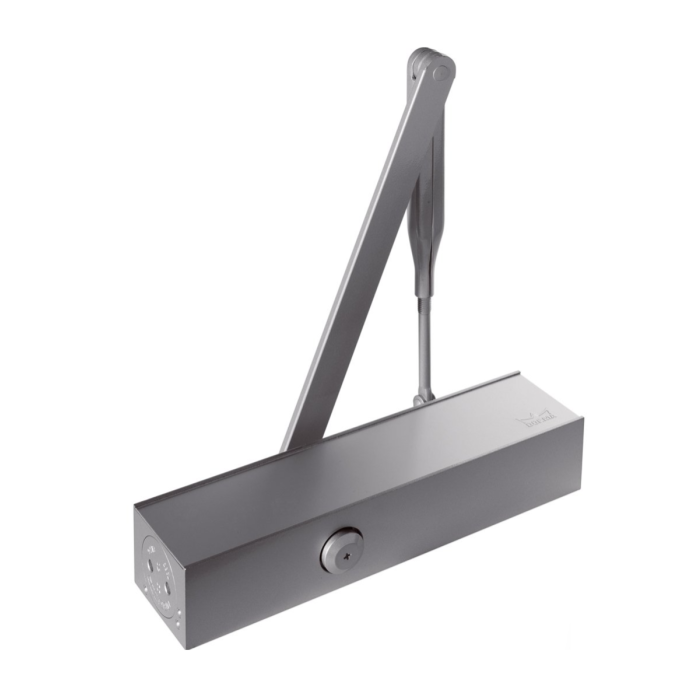

Dorma TS83 BC & DC Silver Door Closer
Main image
Click to view image in fullscreen
![]()
Dorma TS83 BC & DC Silver Door Closer
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £3.95 for very small items, £6.50 for small, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£215.18
Incl. VAT
£179.32
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
-
+
See our full range:
Description
Dorma TS83 BC & DC Silver Door Closer
Choosing the right hardware for your facility involves balancing security, fire safety, and user accessibility. This premium unit provides a sophisticated solution for high-traffic environments that require reliable closing performance. Engineered for versatility, this model handles diverse installation requirements with ease.
As a leading choice for commercial buildings, the device integrates seamlessly into both modern offices and industrial settings. It is designed to offer controlled door movement, ensuring that entrances remain secure while providing smooth operation for every user who passes through.
Advanced Mechanical Control and Physics
The internal mechanics of this hardware rely on precision hydraulic fluid displacement to manage the kinetic energy generated when a door is opened. When a user applies force to the leaf, the internal spring mechanism compresses to store potential energy.
Upon release, the hydraulic system regulates the conversion of this potential energy back into controlled mechanical motion. The resistance experienced is finely tuned through internal valves that manage fluid flow. This process prevents the door from slamming while ensuring it returns to the latching point with consistent speed and torque.
The structural integrity of the housing is built to withstand significant stress over hundreds of thousands of cycles. By utilizing high-grade cast aluminium and hardened steel internal components, this unit prevents material fatigue. This design choice ensures that the closing force remains constant, even under fluctuating temperature conditions that typically alter hydraulic viscosity.
Operational Workflow for Facility Managers
Interacting with this hardware is intuitive for both installers and daily occupants. For the installer, the setup process begins with selecting the appropriate power size. Because this unit is adjustable between EN size 3 and 6, one model covers a wide spectrum of door weights and widths.
- The installer first aligns the mounting template on the door or frame to ensure the geometry allows for maximum leverage.
- Once secured, the technician adjusts the sweep speed and latching speed using dedicated valves located on the end of the casing.
- The user interacts with the system simply by pushing the door open, feeling the gradual engagement of the backcheck function near the end of the swing.
- As the user moves through the threshold, the delayed action feature holds the door open for a set duration before it begins its closing cycle.
- Finally, the door returns to the closed position at a controlled rate, engaging the latch securely without the need for manual intervention.
Ergonomics, Safety, and Compliance Standards
Safety in a commercial environment is non-negotiable, and this equipment is built to meet the highest standards of accessibility. The delayed action feature is particularly beneficial for individuals who require extra time to pass through an opening, such as those using wheelchairs or carrying heavy equipment.
By preventing rapid door closure, this hardware significantly reduces the risk of impact injuries. Furthermore, the backcheck feature acts as a mechanical buffer. It prevents the door from striking walls or adjacent architectural features when caught by a strong gust of wind or opened with excessive force.
Using this high quality hardware reduces the physical effort required to operate heavy commercial doors. It ensures that your environment remains compliant with local fire door regulations. The consistent closing force ensures the door engages fully with the latch, which is a critical requirement for maintaining fire compartmentation in the event of an emergency.
Commercial ROI and Long Term Investment
Investing in top-tier components like the Dorma TS83 BC & DC Silver Door Closer is a decision that pays dividends over the lifespan of a building. Cheap alternatives often fail within a few years, leading to door drop, latch failure, or hydraulic leaks. These failures result in costly maintenance callouts and security vulnerabilities.
By opting for this robust model, you effectively minimize the need for replacement cycles. The durability of the internal seals and the precision-machined springs ensure that the equipment remains operational for years. This longevity reduces the administrative overhead associated with managing facility repairs.
Protecting your physical assets is also a primary benefit. When doors are properly closed and latched, you reduce the risk of unauthorised access and protect your interior climate from drafts and noise. The cost savings gained from reduced heating and cooling losses alone can justify the initial investment in premium door controls.
Pro Tip for MaintenanceWe recommend performing a routine check of your door controls every six months. Ensure that the mounting screws are tight and that the closing speeds are calibrated to suit the current seasonal traffic levels. Regular lubrication of the door hinges also helps this unit perform to its maximum potential.
Technical Specifications
The following table outlines the technical parameters for this specific hardware configuration. This data will assist you in verifying compatibility with your existing door installations.
| Specification | Detail |
|---|---|
| Product Model | Dorma TS83 BC & DC |
| Closing Force | EN 3 to 6 Adjustable |
| Primary Function | Hydraulic Door Control |
| Included Features | Backcheck and Delay Action |
| Finish | Silver Metallic Coating |
| Installation Method | Surface Mounted |
| Maximum Door Width | Up to 1400mm |
| Fire Rating | Certified for Fire and Smoke Doors |
Why Choose This Equipment
Selecting the Dorma TS83 BC & DC Silver Door Closer means choosing a heritage of engineering excellence. This unit is synonymous with reliability in the construction industry. Whether you are fitting out a new office block or upgrading the fire safety hardware in a school, this device offers the peace of mind that comes with professional-grade equipment.
Its sleek silver finish ensures that the hardware remains aesthetically neutral, complementing most door materials from timber to metal. The ease of adjustment allows for precise tuning, meaning you can configure the door to behave exactly as needed for your specific site requirements.
We invite you to consider the long-term benefits of installing reliable hardware. By choosing this Dorma TS83 BC & DC Silver Door Closer, you are prioritizing the safety of your occupants and the longevity of your building infrastructure. Trust in industry-standard technology to keep your business running smoothly, securely, and safely every single day.
If you require further guidance on installation or need to clarify compatibility with specific door weights, please reach out to our support team at Doorfit. Our experts are always available to discuss how you can optimise your facility hardware for better performance and enhanced security.
Specification
| Manufacturer | Dorma |
|---|---|
| Guarantee | 2 Year |
| Type | Overhead |
| Power sizes | 2 to 5 |
| CE Certified | Yes |
| Certifire Approved | Yes |
| Application | Universal |
| Arm Assembly | Projecting Arm |
| Closing Speed | Variable |
| Latching Action | Yes |
| Stand Open | Yes |
| Back Check | Yes |
| Delayed Action | Yes |
